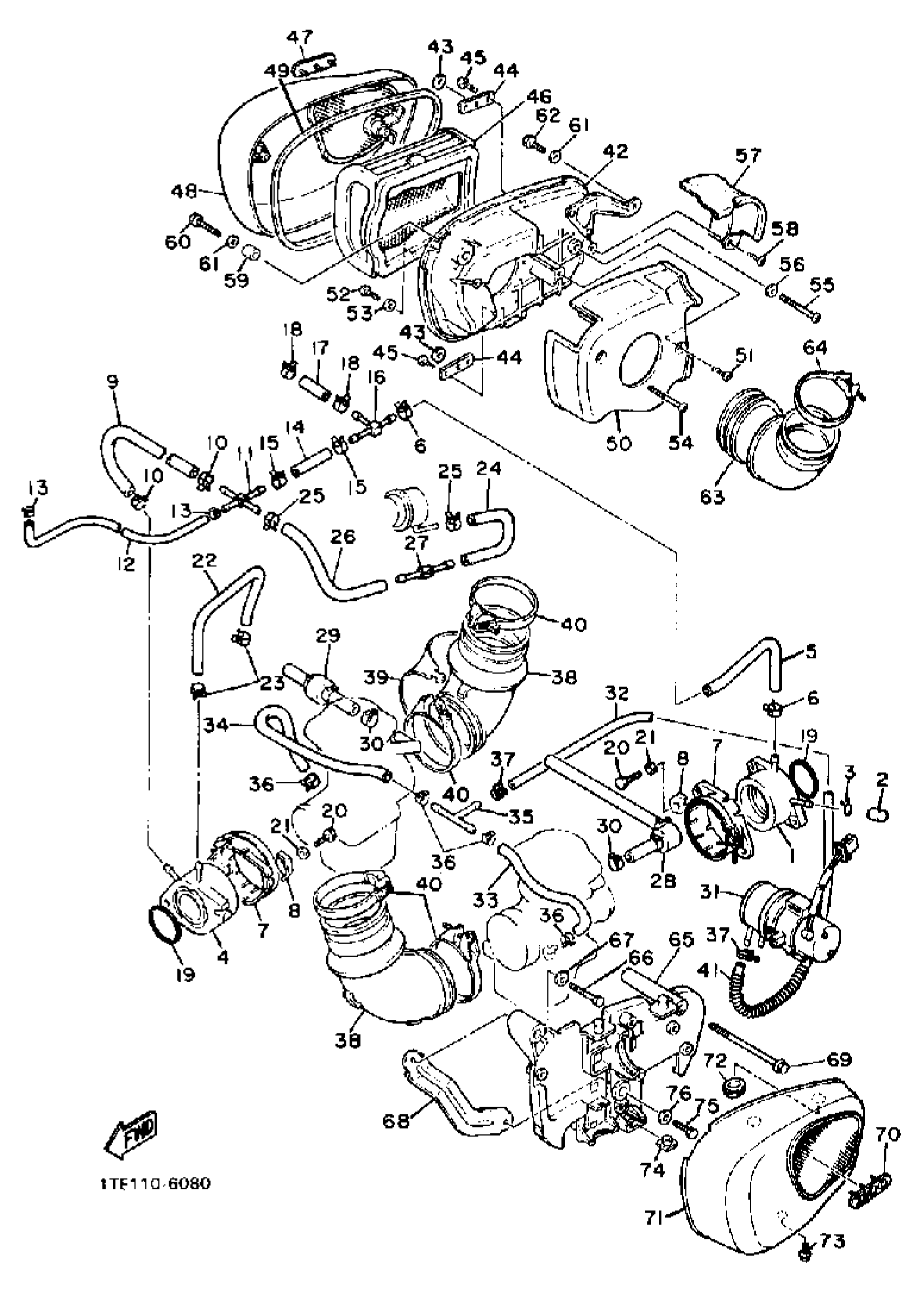

Yamaha XV1100SC (VIRAGO 1100 CA) 1986 AIR FILTER Diagram
#
4
JOINT, CARBURETOR 2
1TA-13596-00-00
Unavailable
5
HOSE, VAC.SENSING 4
(1TA-13533-00-00)
Unavailable
7
COVER, MANIFOLD
42X-13564-01-00
Unavailable
8
WASHER
42X-13578-00-00
Unavailable
9
HOSE, VAC SENSING 2
(1TA-13544-00-00)
Unavailable
11
JOINT
1TA-13595-00-00
Unavailable
12
HOSE, VACUUM SENSING 3
42H-13532-00-00
Unavailable
16
JOINT
1RV-13595-00-00
Unavailable
17
HOSE,VAC.SENSING 5
4BH-13534-00-00
Unavailable
19
O-RING (10L)
93210-44545-00
Unavailable
20
BOLT, HEXAGON
97017-06020-00
Unavailable
21
WASHER(6TA)
92907-06600-00
Unavailable
22
HOSE, VAC SENSING 1
(1TA-13542-00-00)
Unavailable
24
HOSE, VACUUM SENSING 5
1TA-13534-00-00
Unavailable
26
HOSE, VACUUM SENSING 5
1TA-13535-00-00
Unavailable
27
NOZZLE
41R-14489-00-00
Unavailable
28
PIPE, AIRVENT (42X-14197-00)
42X-14197-01-00
Unavailable
29
PIPE,AIRVENT
3CG-14197-00-00
Unavailable
30
CLIP (5K4)
90467-14057-00
Unavailable
31
FUEL PUMP COMP.
42H-13907-01-00
Unavailable
32
PIPE, FUEL 1
42H-13971-00-00
Unavailable
33
PIPE
1TA-14349-00-00
Unavailable
34
PIPE 1
1TA-14348-00-00
Unavailable
35
WAY 3(1AF)
90413-07023-00
Unavailable
36
CLIP(42X)
90467-10091-00
Unavailable
37
HOSE CLAMP ASSY
90450-12002-00
Unavailable
38
JOINT, AIR CLEANER 1
10L-14453-02-00
Unavailable
39
COVER, JOINT
10L-14407-00-00
Unavailable
40
CLAMP, HOSE 1
1D6-11387-00-00
Unavailable
41
SPRING,COMPRESSION
90501-100F8-00
Unavailable
42
AIR CLEANER CASE ASSEMBLY
42X-14401-01-00
Unavailable
43
WASHER, PLAIN (646)
92990-04600-00
Unavailable
44
PLATE
42X-14477-00-00
Unavailable
45
SCREW, OVAL HEAD TAPPING
97780-40112-00
Unavailable
46
ELEMENT, AIR CLEANER
42X-14451-00-00
Unavailable
47
EMBLEM 2
1TA-1442K-00-00
Unavailable
48
CAP, CLEANER CASE 2
1RM-14422-00-00
Unavailable
49
SEAL
42X-14452-00-00
Unavailable
50
COVER, CLEANER CASE 1
1TA-1441A-00-00
Unavailable
51
SCREW, PAN TAP.2
97707-50508-00
Unavailable
52
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
53
WASHER, PLAIN (646)
92990-05600-00
Unavailable
54
SCREW, PAN
98507-06080-00
Unavailable
55
SCREW, PAN
98507-06050-00
Unavailable
56
WASHER(6TA)
92907-06600-00
Unavailable
57
COVER, CLEANER CASE 2
1TA-1441E-00-00
Unavailable
58
SCREW, PAN TAP.2
97707-50508-00
Unavailable
59
COLLAR (1M1)
90387-06553-00
Unavailable
60
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
Unavailable
61
WASHER(6TA)
92907-06200-00
Unavailable
62
BOLT,SOCKET
91317-06012-00
Unavailable
63
PIPE, JOINT
42X-14485-00-00
Unavailable
64
CLAMP, HOSE 1
1D6-11387-00-00
Unavailable
65
PLATE, AIR CLEANER
42X-14663-02-00
Unavailable
66
BOLT, FLANGE
95822-06025-00
Unavailable
67
WASHER(6TA)
92907-06200-00
Unavailable
68
PLATE, CLEANER CASE FITTING
42X-14484-00-00
Unavailable
69
BOLT, SOCKET
91314-06090-00
Unavailable
70
EMBLEM
1TA-1441K-00-00
Unavailable
71
COVER 1
1RM-14603-00-00
Unavailable
72
GROMMET 654427240000
90480-14074-00
Unavailable
73
BOLT, FLANGE
95817-06014-00
Unavailable
74
PLATE, CLEANER CASE FITTING
12R-14484-01-00
Unavailable
75
BOLT,SOCKET
91317-06035-00
Unavailable
76
WASHER(6TA)
92907-06200-00
Unavailable
