1984 Yamaha Virago 1000 CA (XV1000LC) Valve Diagram

← All diagrams

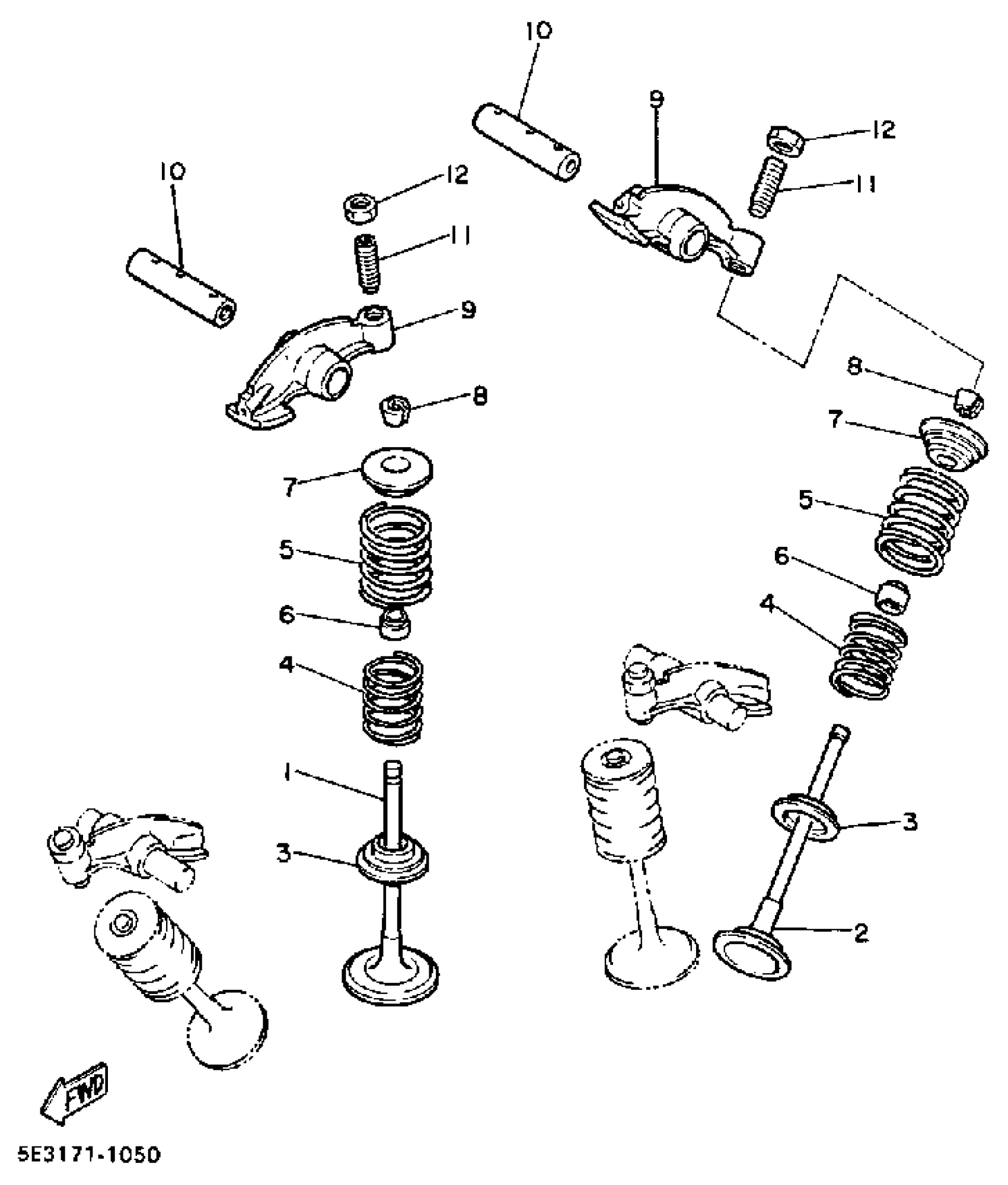

Find the part on the Valve diagram for your 1984 Yamaha Virago 1000 CA (XV1000LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha Virago 1000 CA (XV1000LC) Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, INTAKE

2J2-12111-01-00

1
Out of stock

2

VALVE, EXHAUST

5A8-12121-00-00

1
Out of stock

3

SEAT, VALVE SPRING

4X7-12116-00-00

1
Out of stock

4

SPRING, COMPRESSION (1T1)

90501-31454-00

1
Out of stock

5

SPRING, COMPRESSION (1T1)

90501-44455-00

1
Out of stock

6

SEAL, VALVE STEM OIL

341-12119-02-00

1
Out of stock

7

RETAINER, VALVE SPRING

4X7-12117-00-00

1

$29.08

In stock

8

COTTER, VALVE

4X7-12118-00-00

1

$6.58

In stock

9

ARM, VALVE ROCKER

42X-12151-00-00

1

$57.25

In stock

10

SHAFT, ROCKER 2

4X7-12156-02-00

1

$21.22

In stock

11

SCREW, VALVE ADJUSTING

4X7-12159-00-00

—

$7.49

In stock

12

NUT, HEXAGON

90170-08173-00

1

$6.71

In stock
