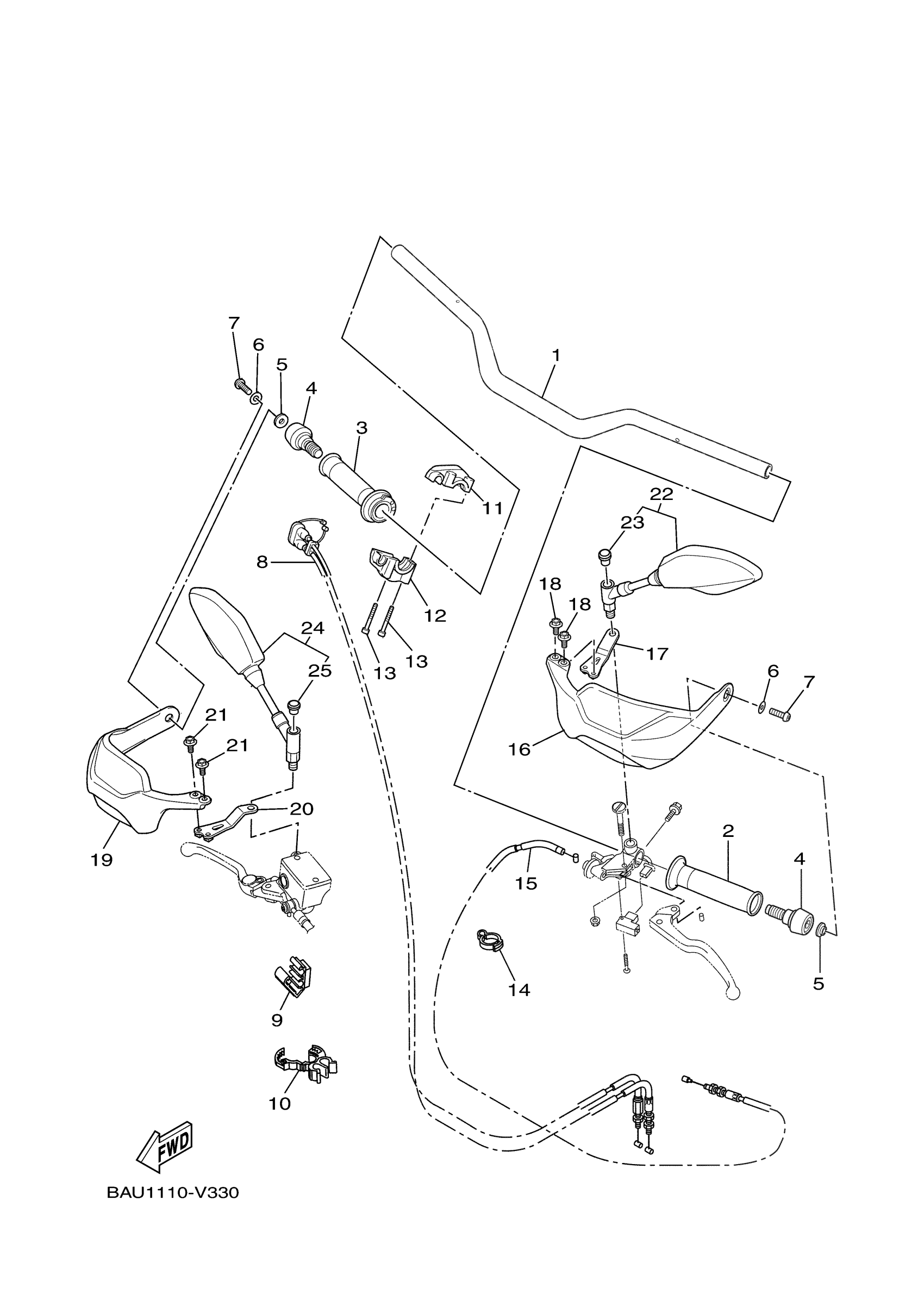

Yamaha XTZ7PL (TENERE 700) BMB6 2023 STEERING HANDLE & CABLE Diagram

#

Description
Price

1

HANDLEBAR

BW3-F6111-00-00

$154.86

2

GRIP

BEH-F6241-00-00

$23.89

3

GRIP ASSY

BEH-F6240-00-00

$41.86

4

END,GRIP

2BS-26246-00-00

$66.21

5

COLLAR

90387-08089-00

$6.29

6

WASHER, PLATE(3XP)

90201-086P8-00

$4.07

7

BOLT, BUTTON HEAD

92012-08025-00

$5.37

8

THROTTLE CABLE ASSY

BW3-F6301-00-00

$46.44

9

CLAMP,WIRE

39P-2627E-00-00

$4.31

10

CLAMP

90464-16023-00

$2.82

11

CAP, GRIP UPPER

1WS-26281-00-00

$9.70

12

CAP, GRIP UNDER

1WS-26282-00-00

$11.48

13

BOLT, SOCKET

91317-05040-00

$1.82

14

CLAMP

90464-18004-00

$4.14

15

WIRE, CLUTCH

BW3-F6335-00-00

$42.93

16

GUARD, BRUSH 1

BMB-26141-00-00

Unavailable

17

BRACKET, HANDLE 1

BMB-26223-00-00

Unavailable

18

SCREW

90149-05045-00

Unavailable

19

GUARD, BRUSH 2

BMB-26142-00-00

Unavailable

20

BRACKET, HANDLE 3

BMB-2622A-00-00

Unavailable

21

SCREW

90149-05045-00

Unavailable

22

REAR VIEW MIRROR A

BHL-26280-00-00

Unavailable

23

CAP

5PS-26133-20-00

Unavailable

24

REAR VIEW MIRROR ASSY (RIGHT)

BHL-26290-00-00

Unavailable

25

CAP

5PS-26133-20-00

Unavailable
