Partiron

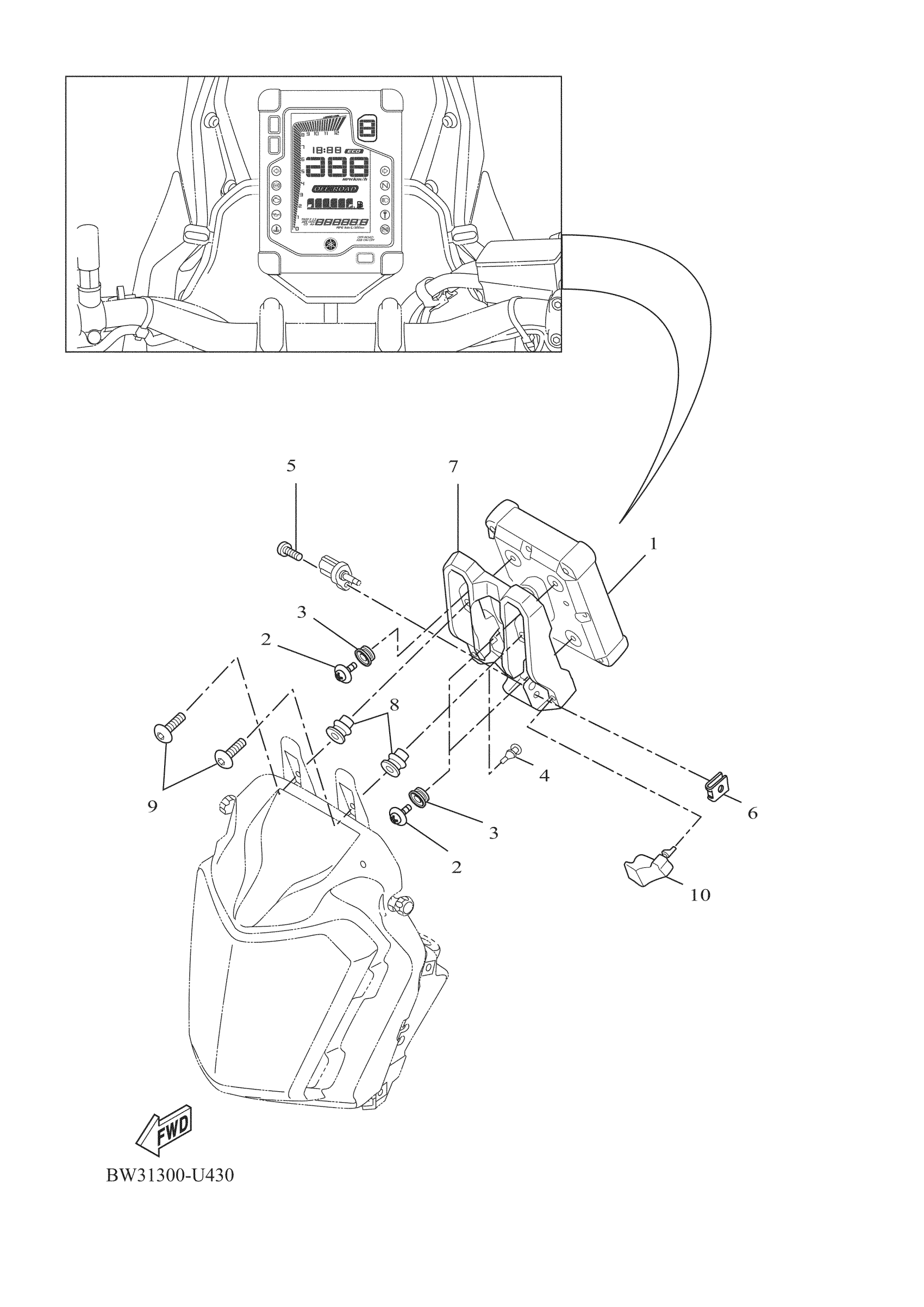

Yamaha XTZ7PL (TENERE 700) BMB6 2023 METER Diagram

#

Description
Price

1

METER ASSY

BEH-83500-21-00

Unavailable

2

SCREW, TAPPING

90164-05001-00

$5.86

3

DAMPER

5PS-83513-00-00

$3.43

4

PLUG

90338-05009-00

$2.91

5

BOLT,SOCKET

91317-05014-00

$6.23

6

NUT, SPRING

90183-050A6-00

$2.21

7

BRKT., METER

BMB-2834L-00-00

$41.95

8

NUT(1WT)

90179-06520-00

$5.87

9

SCREW

90149-06104-00

$3.57

10

COVER, SENSOR

BW3-H6016-00-00

Unavailable
