2017 Yamaha Super Tenere (XTZ12HT) Intake Diagram

← All diagrams

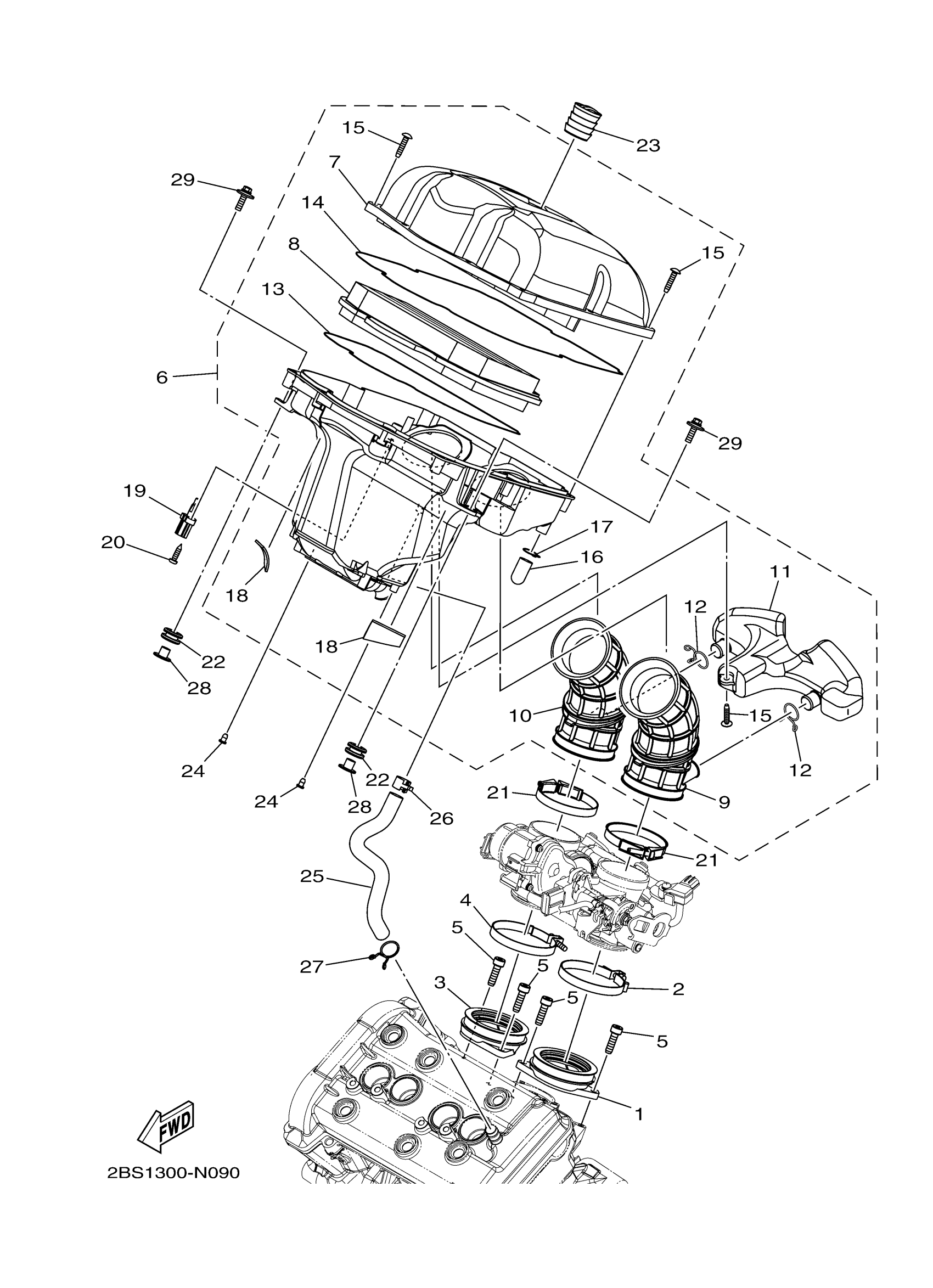

Find the part on the Intake diagram for your 2017 Yamaha Super Tenere (XTZ12HT), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Super Tenere (XTZ12HT) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 1

23P-13586-00-00

1
Out of stock

2

HOSE CLAMP ASSY

90450-69001-00

—
Out of stock

3

JOINT, CARBURETOR 2

23P-13596-00-00

1
Out of stock

4

HOSE CLAMP ASSY

90450-69001-00

—
Out of stock

5

BOLT,SOCKET HEAD

91314-06020-00

1

$2.05

In stock

6

AIR CLEANER ASSY.

23P-14410-00-00

—
Out of stock

7

CASE, AIR CLEANER 2

23P-14421-00-00

—
Out of stock

8

ELEMENT, AIR CLEANER

23P-14451-00-00

1
Out of stock

9

JOINT, AIR CLEANER 1

23P-14453-00-00

—
Out of stock

10

JOINT, AIR CLEANER 2

23P-14463-00-00

—
Out of stock

11

CHAMBER, AIR

23P-13581-00-00

—
Out of stock

12

CLIP

90467-180A1-00

1
Out of stock

13

SEAL

23P-14452-00-00

1
Out of stock

14

SEAL

23P-14462-00-00

1
Out of stock

15

SCREW, ROUND TAPPING

90160-05013-00

1

$6.17

In stock

16

PIPE, DRAIN

23P-1443E-00-00

—
Out of stock

17

CLIP

23P-14159-00-00

—
Out of stock

18

DAMPER

5JW-2139X-00-00

—
Out of stock

19

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

—

$49.83

In stock

20

SCREW, PAN TAP.2 SLIT

97707-50620-00

—

$6.45

In stock

21

HOSE CLAMP ASSY

90450-67003-00

—

$11.38

In stock

22

GROMMET (16R)

90480-14329-00

—

$6.68

In stock

23

PLUG

23P-14862-00-00

—
Out of stock

24

PLUG 378212790000

90338-05056-00

—
Out of stock

25

PIPE, BREATHER 1

23P-11166-10-00

—
Out of stock

26

CLIP

90467-15168-00

—
Out of stock

27

CLIP

90467-140A4-00

—

$8.31

In stock

28

COLLAR(735)

90387-06033-00

—

$6.68

In stock

29

BOLT, WITH WASHER(2WG)

90119-06172-00

—

$5.83

In stock
