2017 Yamaha Super Tenere (XTZ12HT) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2017 Yamaha Super Tenere (XTZ12HT), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

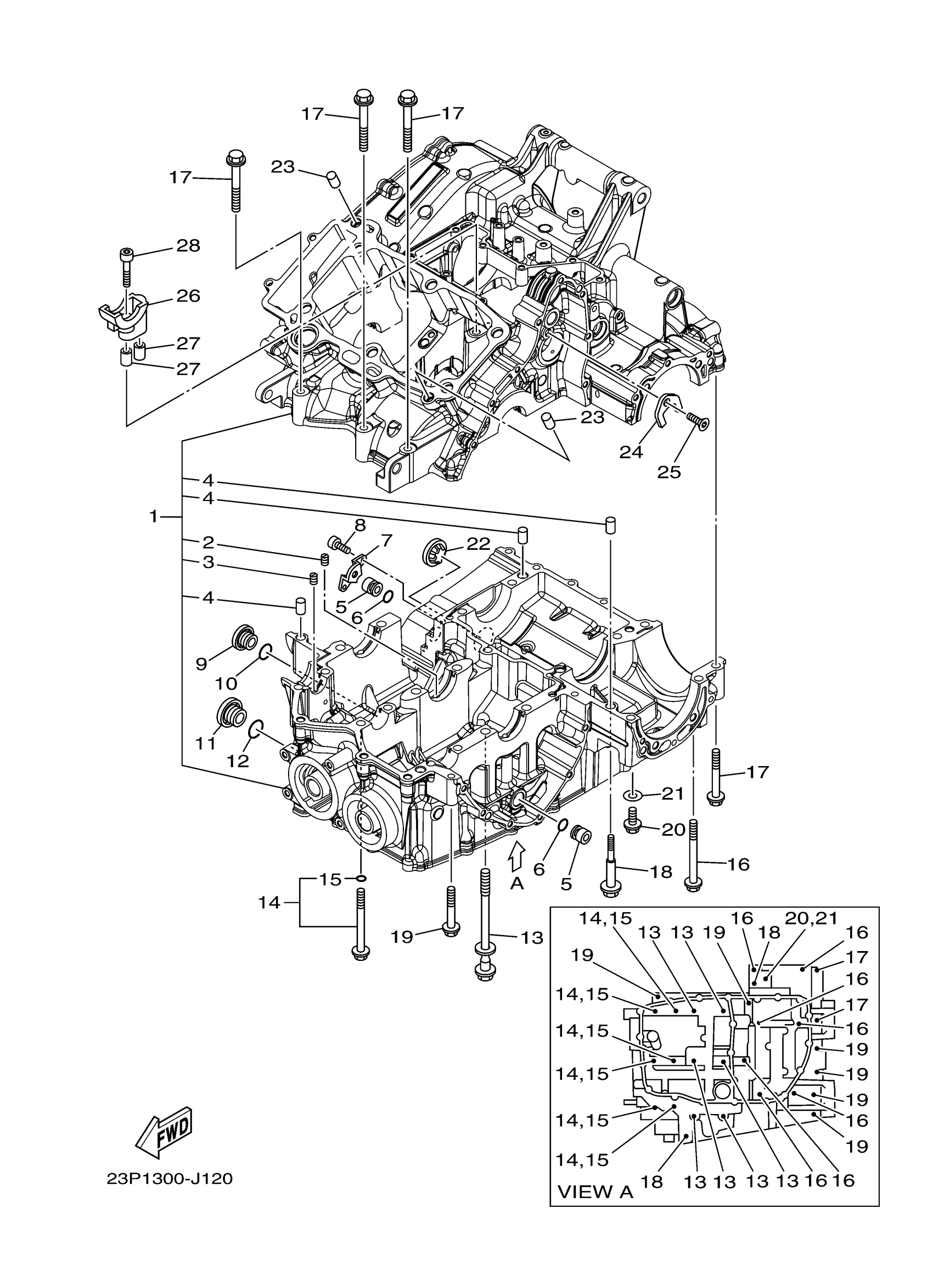

2017 Yamaha Super Tenere (XTZ12HT) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

23P-15100-09-00

—
Out of stock

2

NOZZLE

4KM-13572-01-00

1
Out of stock

3

NOZZLE 1

2UJ-15138-00-00

—
Out of stock

4

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

5

PLUG

90338-16262-00

1
Out of stock

6

O-RING(3LD)

93210-12790-00

1
Out of stock

7

HOLDER

23P-15128-00-00

—
Out of stock

8

BOLT,SOCKET

91317-06016-00

1
Out of stock

9

PLUG

36Y-15189-01-00

—
Out of stock

10

O-RING(1L9)

93210-16325-00

1
Out of stock

11

PLUG

4H7-15189-00-00

1
Out of stock

12

O-RING

93210-20802-00

1
Out of stock

13

BOLT, WITH WASHER

90119-10051-00

1
Out of stock

14

BOLT, CRANKCASE JOURNAL

23P-15156-00-00

1
Out of stock

15

O-RING (11M)

93210-07540-00

1
Out of stock

16

BOLT, FLANGE(JF2)

95817-08080-00

—
Out of stock

17

BOLT, FLANGE

95817-08060-00

—
Out of stock

18

BOLT

90109-06100-00

—
Out of stock

19

BOLT, FLANGE

95812-06050-00

—
Out of stock

20

BOLT, FLANGE

95022-08016-00

—
Out of stock

21

GASKET

90430-08119-00

—
Out of stock

22

GAUGE, LEVEL

2H7-15361-00-00

—
Out of stock

23

PIN, DOWEL(3VD)

99530-10114-00

1
Out of stock

24

PLATE

3LD-15191-00-00

—
Out of stock

25

SCREW, COUNTERSUNK

90151-06023-00

—
Out of stock

26

HOLDER

23P-15118-00-00

—
Out of stock

27

PIN, DOWEL(3XW)

91808-16023-00

—
Out of stock

28

BOLT(J17)

91312-06035-00

—
Out of stock
