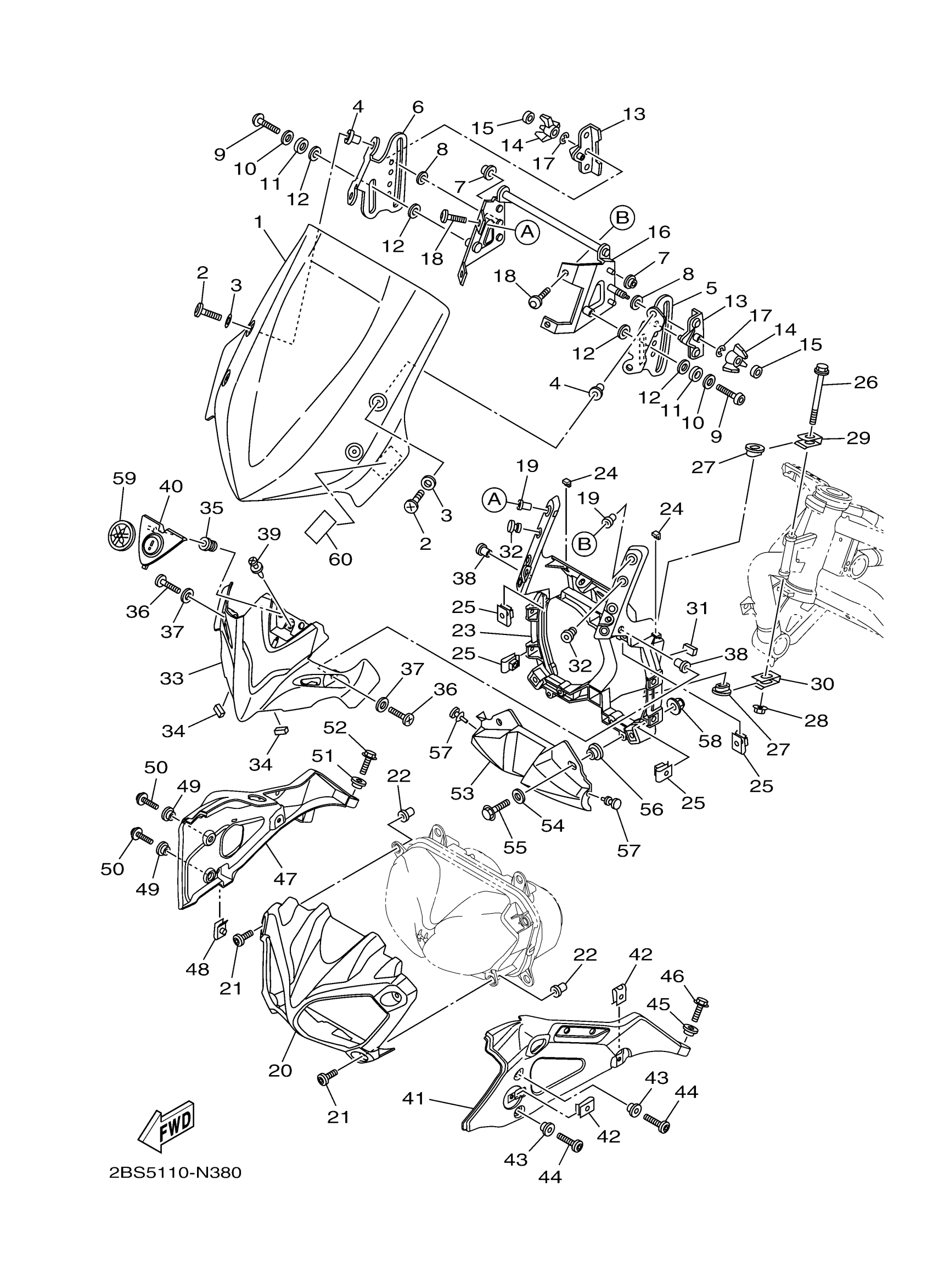

2016 Yamaha Super Tenere (XTZ12GY) Windshield Diagram
Find the part on the Windshield diagram for your 2016 Yamaha Super Tenere (XTZ12GY), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
WINDSHIELD
2BS-28381-20-00
5
STAY, SIDE 1
2BS-2831U-00-00
6
STAY, SIDE 1
2BS-2832U-00-00
7
BUSH
90386-07MA2-00
8
WASHER PLATE 122217250000
90202-07015-00
9
BOLT, BUTTON HEAD
92017-06016-00
10
WASHER, PLATE
90201-06021-00
11
GASKET
90430-12072-00
12
WASHER, PLATE (J17)
90201-123F2-00
13
STAY, GUIDE 1
2BS-2831E-00-00
14
NUT, ADJUSTING
2BS-26383-00-00
15
CAP
2BS-28349-00-00
16
STAY, MAIN 1
2BS-2831R-00-00
20
BODY, FRONT UPPER 1
23P-2835G-00-00
22
NUT(1WT)
90179-06520-00
23
STAY 1
23P-28356-01-00
24
DAMPER, PLATE
90520-02005-00
26
BOLT, WASHER BASED
90105-085A5-00
27
COLLAR
5PS-28373-01-00
29
PLATE
23P-28336-00-00
30
PLATE 2
23P-28397-00-00
31
TAPE
23P-28344-00-00
33
DEFLECTOR
2BS-283M3-00-00
34
DAMPER 2
1HX-28227-00-00
40
COVER, METER
2BS-83559-00-00
41
PANEL, CONSOLE 1
23P-2837L-00-00
44
BOLT
90111-06051-00
45
COLLAR
90387-08080-00
47
PANEL, CONSOLE 2
23P-2837M-00-00
50
BOLT
90111-06051-00
51
COLLAR
90387-08080-00
53
COVER
2BS-28365-01-00
56
COLLAR
90387-06200-00
57
GROMMET (5BS)
90480-04166-00
