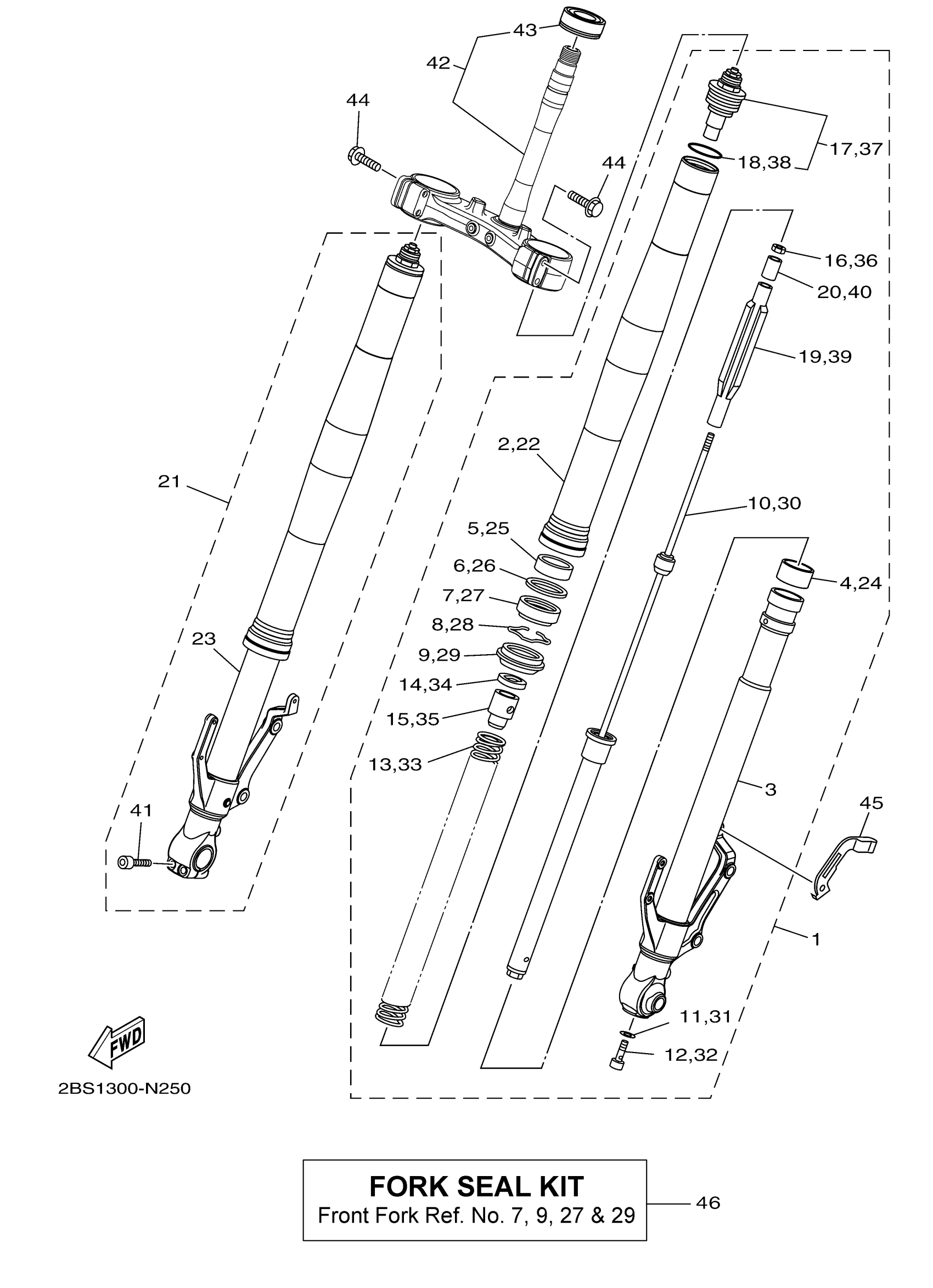

Yamaha XTZ12GY (SUPER TENERE) 2BSP 2016 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L

2BS-23102-00-00

Unavailable

2

TUBE, OUTER (RIGHT)

23P-23136-10-00

Unavailable

3

INNER TUBE COMP.1

23P-23110-00-00

Unavailable

4

PISTON, FRONT FORK

5EB-23171-00-00

$26.98

5

METAL, SLIDE 1

5EB-23125-00-00

$25.47

6

WASHER

4V4-23146-L0-00

$5.55

7

OIL SEAL

4PU-23145-01-00

$19.58

8

RING, SNAP

4V4-23153-L0-00

$8.08

9

SEAL, DUST

4PU-23144-00-00

$18.82

10

CYLINDER COMP., FR

2BS-23170-00-00

$470.70

11

GASKET

509-23158-L0-00

$13.39

12

BOLT, HEXAGON SOCKET HEAD

5UX-23181-00-00

Unavailable

13

SPRING, FRONT FORK

23P-23141-00-00

$96.47

14

WASHER

5VY-12277-00-00

$10.20

15

SPACER

23P-23118-00-00

$22.03

16

NUT

3LC-23357-00-00

Unavailable

17

BOLT, CAP

5SL-23111-41-00

Unavailable

18

O-RING

3XJ-23147-L0-00

Unavailable

19

GUIDE, SPRING

23P-23117-00-00

Unavailable

20

COLLAR

23P-23113-00-00

Unavailable

21

FRONT FORK ASSY (R

2BS-23103-00-00

Unavailable

22

TUBE, OUTER (RIGHT)

23P-23136-10-00

Unavailable

23

INNER TUBE COMP.2

23P-23120-00-00

Unavailable

24

PISTON, FRONT FORK

5EB-23171-00-00

$26.98

25

METAL, SLIDE 1

5EB-23125-00-00

$25.47

26

WASHER

4V4-23146-L0-00

$5.55

27

OIL SEAL

4PU-23145-01-00

$19.58

28

RING, SNAP

4V4-23153-L0-00

$8.08

29

SEAL, DUST

4PU-23144-00-00

$18.82

30

CYLINDER COMP., FR

2BS-23170-00-00

$470.70

31

GASKET

509-23158-L0-00

$13.39

32

BOLT, HEXAGON SOCKET HEAD

5UX-23181-00-00

Unavailable

33

SPRING, FRONT FORK

23P-23141-00-00

$96.47

34

WASHER

5VY-12277-00-00

$10.20

35

SPACER

23P-23118-00-00

$22.03

36

NUT

3LC-23357-00-00

Unavailable

37

BOLT, CAP

5SL-23111-41-00

Unavailable

38

O-RING

3XJ-23147-L0-00

Unavailable

39

GUIDE, SPRING

23P-23117-00-00

Unavailable

40

COLLAR

23P-23113-00-00

Unavailable

41

BOLT,SOCKET

91314-08040-00

Unavailable

42

UNDER BRACKET COMP.

23P-23340-00-00

Unavailable

43

BEARING(4SR)

93332-00081-00

Unavailable

44

BOLT, FLANGE(4KG)

95024-08040-00

Unavailable

45

HOLDER, BRAKE HOSE 1

23P-25875-00-00

Unavailable

46

FORK SEAL KIT (TWO FORKS)

4PU-W003B-00-00

Unavailable
