2015 Yamaha Super Tenere (XTZ12FS) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2015 Yamaha Super Tenere (XTZ12FS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

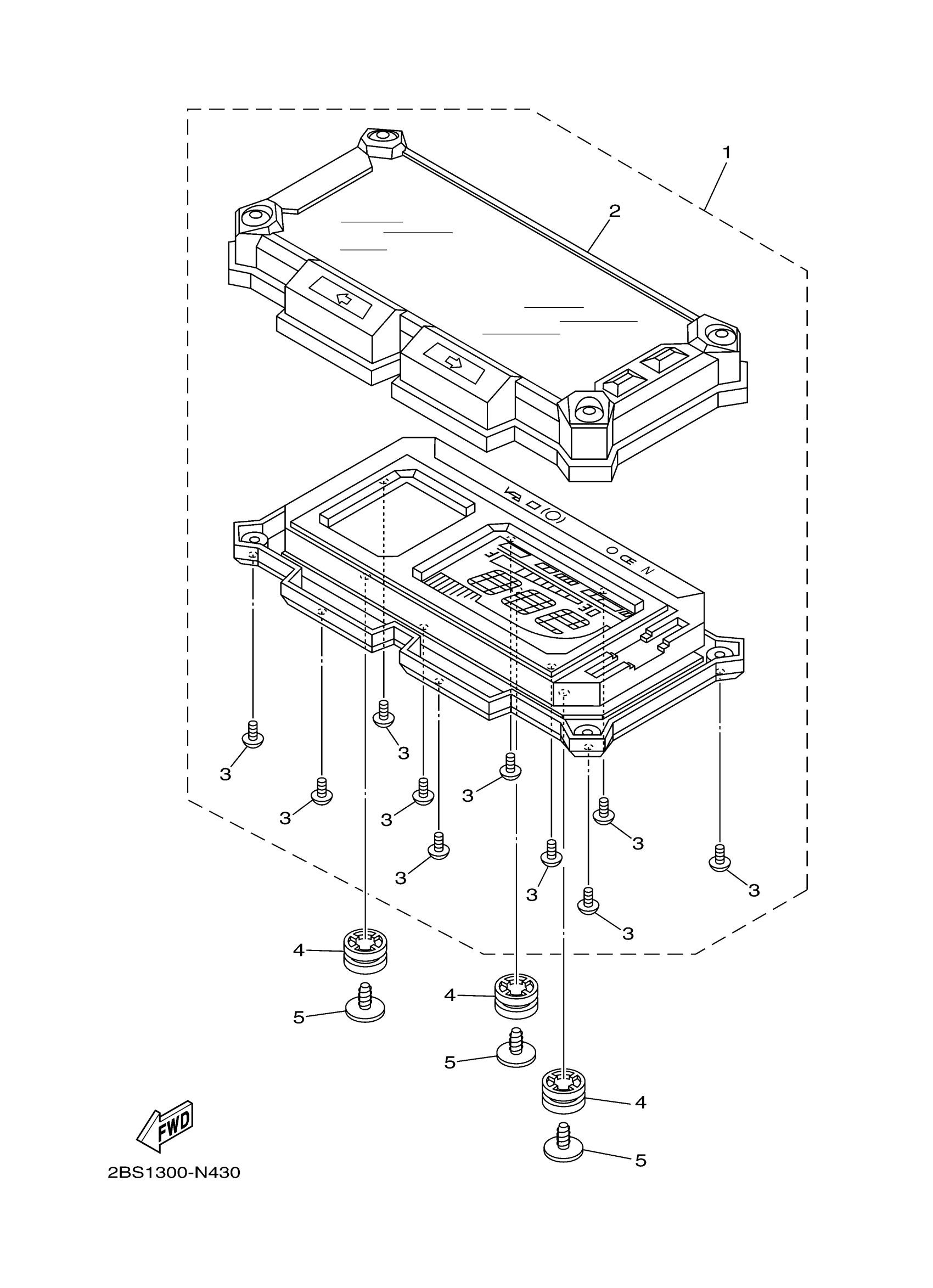

2015 Yamaha Super Tenere (XTZ12FS) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER ASSY

2BS-83500-21-00

—
Out of stock

2

CASE, METER UPPER

2BS-8353E-01-00

1
Out of stock

3

SCREW, PANEL FITTING

5PW-8352S-00-00

1
Out of stock

4

DAMPER

4XV-83513-00-00

1

$6.42

In stock

5

SCREW, TAPPING

90164-05001-00

1

$6.28

In stock
