2012 Yamaha Super Tenere (XTZ12BL) Front Fork Diagram

← All diagrams

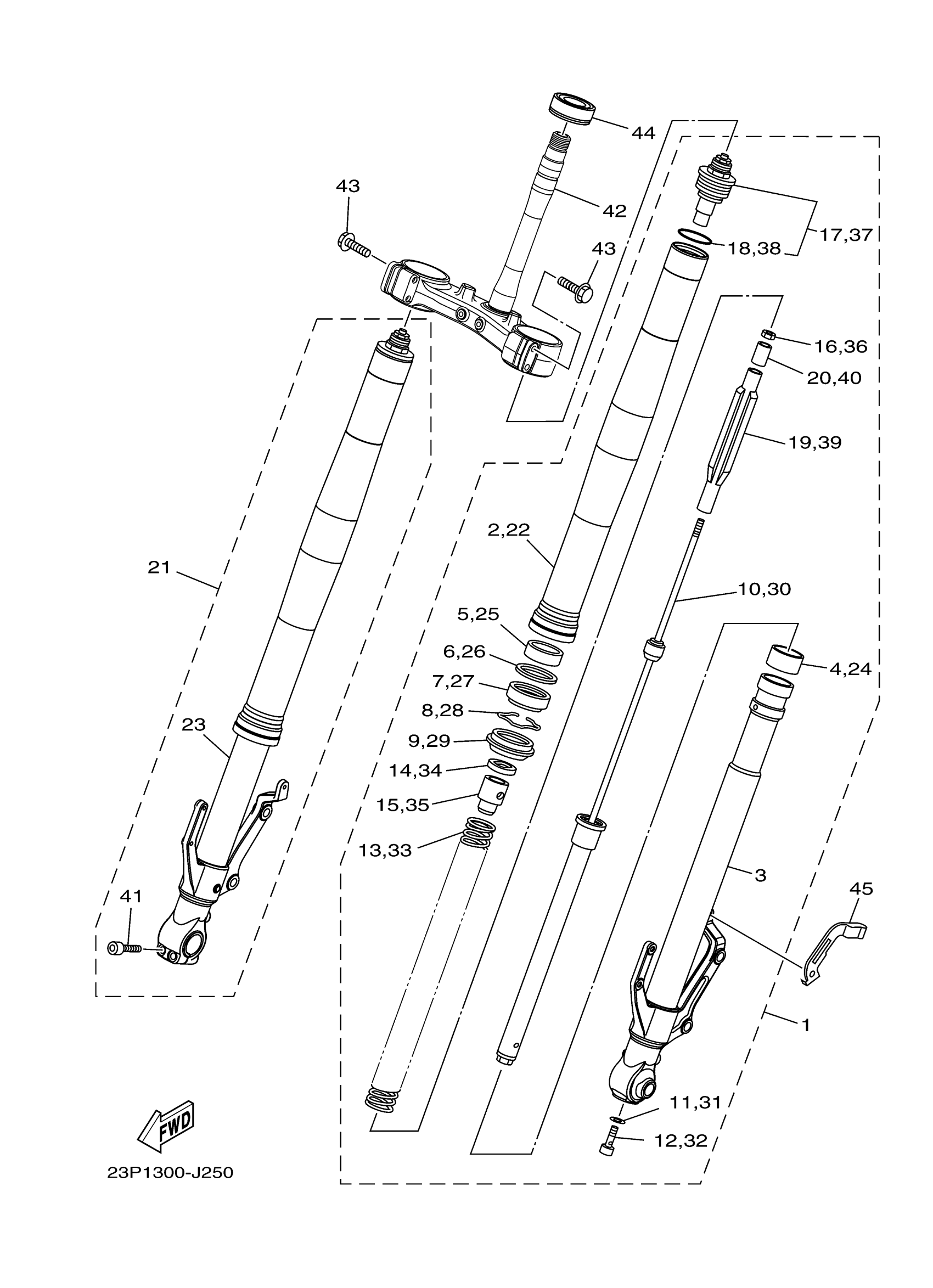

Find the part on the Front Fork diagram for your 2012 Yamaha Super Tenere (XTZ12BL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Super Tenere (XTZ12BL) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

23P-23102-01-00

1
Out of stock

2

TUBE, OUTER (RIGHT)

23P-23136-00-00

—
Out of stock

3

INNER TUBE COMP.1

23P-23110-00-00

—
Out of stock

4

PISTON, FRONT FORK

5EB-23171-00-00

1
Out of stock

5

METAL, SLIDE 1

5EB-23125-00-00

1
Out of stock

6

WASHER

4V4-23146-L0-00

1
Out of stock

7

OIL SEAL

3XJ-23145-L0-00

1
Out of stock

8

RING, SNAP

4V4-23153-L0-00

1
Out of stock

9

SEAL, DUST

4PU-23144-00-00

1
Out of stock

10

CYLINDER COMP., FRONT FORK

23P-23170-00-00

—
Out of stock

11

GASKET

509-23158-L0-00

1
Out of stock

12

BOLT, HEXAGON SOCKET HEAD

5UX-23181-00-00

—
Out of stock

13

SPRING, FRONT FORK

23P-23141-00-00

1
Out of stock

14

WASHER

5VY-12277-00-00

1
Out of stock

15

SPACER

23P-23118-00-00

1
Out of stock

16

NUT

3LC-23357-00-00

—
Out of stock

17

BOLT, CAP

5SL-23111-41-00

—
Out of stock

18

O-RING

3XJ-23147-L0-00

—
Out of stock

19

GUIDE, SPRING

23P-23117-00-00

—
Out of stock

20

COLLAR

23P-23113-00-00

—
Out of stock

21

FRONT FORK ASSY (R.H)

23P-23103-01-00

—
Out of stock

22

TUBE, OUTER (RIGHT)

23P-23136-00-00

—
Out of stock

23

INNER TUBE COMP.2

23P-23120-00-00

—
Out of stock

24

PISTON, FRONT FORK

5EB-23171-00-00

1
Out of stock

25

METAL, SLIDE 1

5EB-23125-00-00

1
Out of stock

26

WASHER

4V4-23146-L0-00

1
Out of stock

27

OIL SEAL

3XJ-23145-L0-00

1
Out of stock

28

RING, SNAP

4V4-23153-L0-00

1
Out of stock

29

SEAL, DUST

4PU-23144-00-00

1
Out of stock

30

CYLINDER COMP., FRONT FORK

23P-23170-00-00

—
Out of stock

31

GASKET

509-23158-L0-00

1
Out of stock

32

BOLT, HEXAGON SOCKET HEAD

5UX-23181-00-00

—
Out of stock

33

SPRING, FRONT FORK

23P-23141-00-00

1
Out of stock

34

WASHER

5VY-12277-00-00

1
Out of stock

35

SPACER

23P-23118-00-00

1
Out of stock

36

NUT

3LC-23357-00-00

—
Out of stock

37

BOLT, CAP

5SL-23111-41-00

—
Out of stock

38

O-RING

3XJ-23147-L0-00

—
Out of stock

39

GUIDE, SPRING

23P-23117-00-00

—
Out of stock

40

COLLAR

23P-23113-00-00

—
Out of stock

41

BOLT,SOCKET

91314-08040-00

—
Out of stock

42

UNDER BRACKET COMP.

23P-23340-00-00

—
Out of stock

43

BOLT, FLANGE(4KG)

95024-08040-00

—
Out of stock

44

BEARING(4SR)

93332-00081-00

—
Out of stock

45

HOLDER, BRAKE HOSE 1

23P-25875-00-00

—
Out of stock
