Partiron

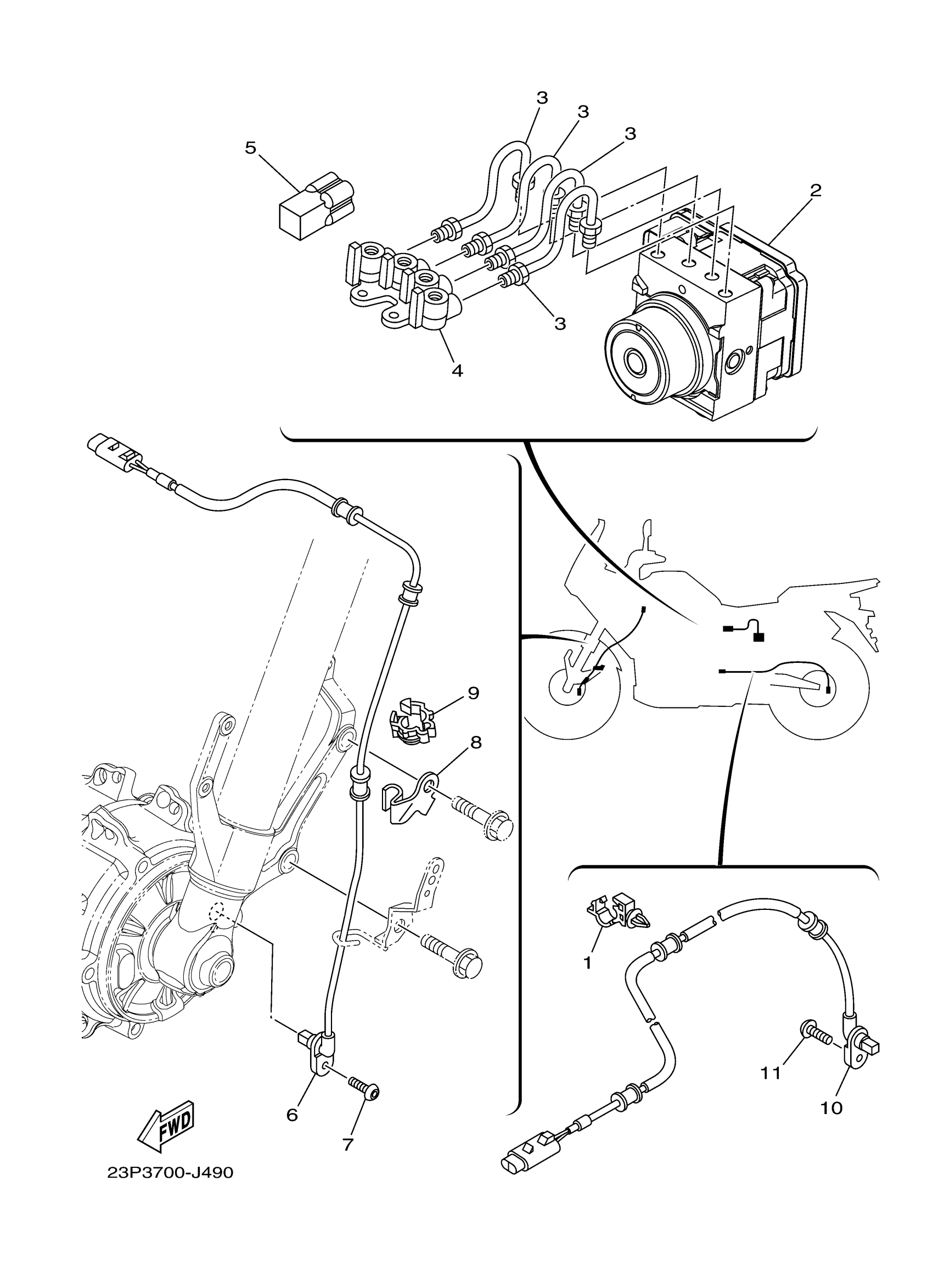

Yamaha XTZ12BL (SUPER TENERE) 23P40 2012 ELECTRICAL 3 Diagram

#

Description
Price

1

CLAMP

90464-10008-00

$2.47

2

HYDRAULIC UNIT ASSY

23P-85930-09-00

Unavailable

3

PIPE, BRAKE

23P-25871-01-00

Unavailable

4

JOINT

23P-25885-00-00

Unavailable

5

CONNECTOR

3YA-82378-00-00

Unavailable

6

WHEEL SENSOR ASSY, FRONT

23P-85970-00-00

$202.08

7

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$2.47

8

HOLDER, CABLE 1

23P-23318-00-00

Unavailable

9

CLAMP

90464-12013-00

$6.27

10

WHEEL SENSOR ASSY, REAR

23P-85980-00-00

$151.74

11

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$2.47
