Description

Price

1

HEADLIGHT UNIT ASSEMBLY

(49M-84303-A0-00)

Unavailable

2

RIM, HEADLIGHT

47J-84115-00-00

$148.99

3

. LENS, HEADLIGHT

5G2-84321-A0-00

Unavailable

4

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

5

COVER, SOCKET

2F9-84397-01-00

$30.99

6

SCREW, RIM ADJUSTER

43F-84131-00-00

$9.99

7

WASHER,SPECIAL

233-84127-60-00

$3.69

8

SPRING, ADJUST

341-84332-60-00

$9.99

9

NUT, ADJUST

198-84334-60-00

$7.99

10

SET SPRING

55X-84124-00-00

$11.99

11

COVER

10V-84196-00-00

Unavailable

12

CLIP COVER FITTING

10V-84198-00-00

$5.49

13

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

14

BOLT(3DM)

97024-06020-00

$8.49

15

COLLAR

90387-06158-00

$8.49

16

GROMMET 839774310000

90480-14023-00

Unavailable

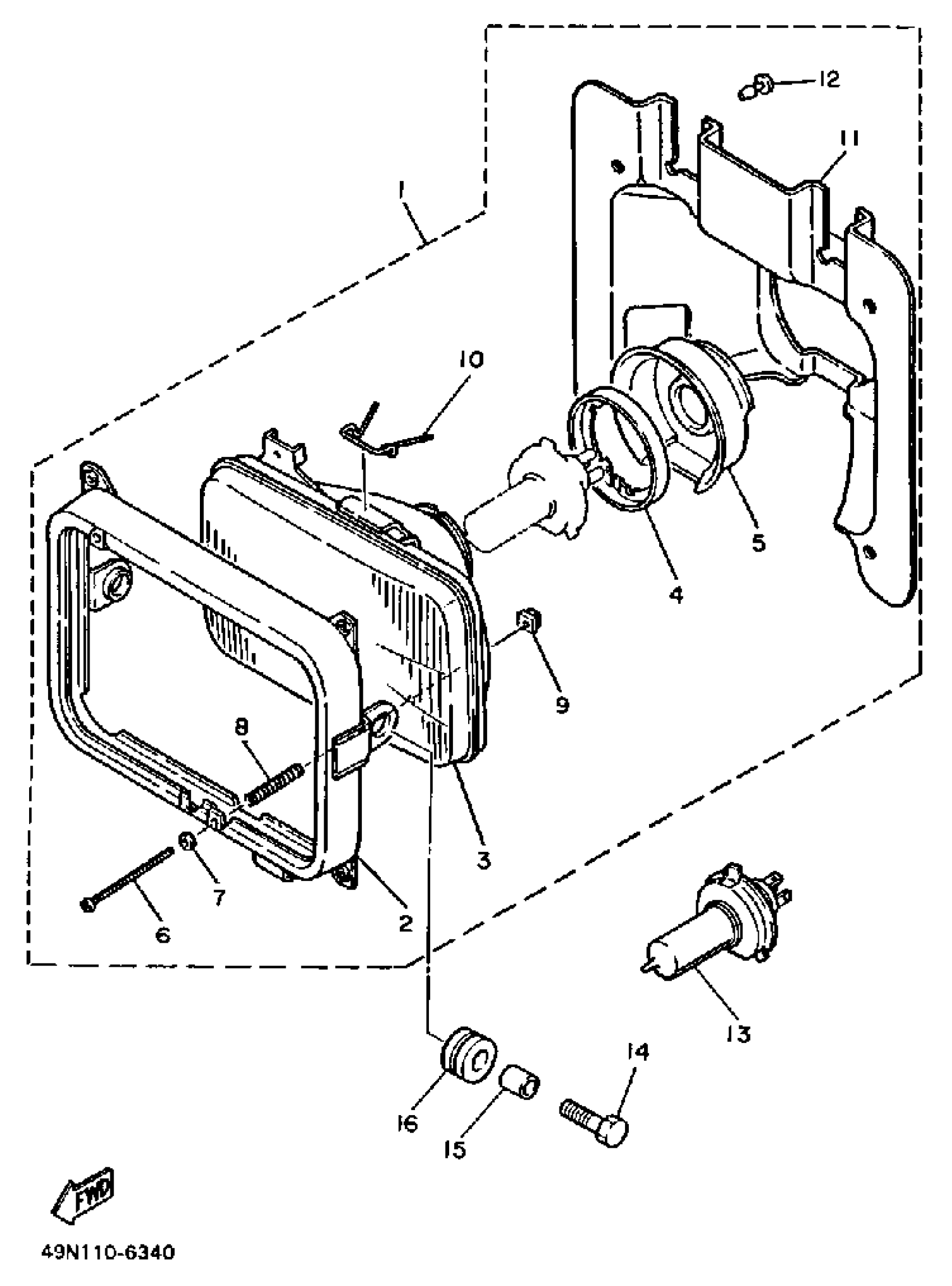

Yamaha XT600TC (XT600 CA) 1987 HEADLIGHT Diagram

HEADLIGHT UNIT ASSEMBLY

RIM, HEADLIGHT

. LENS, HEADLIGHT

SETTING PLATE, BULB

COVER, SOCKET

SCREW, RIM ADJUSTER

WASHER,SPECIAL

SPRING, ADJUST

NUT, ADJUST

SET SPRING

COVER

CLIP COVER FITTING

BULB, HEADLIGHT

BOLT(3DM)

COLLAR

GROMMET 839774310000
