Description

Price

1

FENDER, FRONT (WHITE)

30X-21511-00-00

$60.99

2

COLLAR (8G8)

90387-06681-00

$9.49

3

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

4

SEAL 1

47N-21575-00-00

Unavailable

5

FENDER, REAR

34L-21611-20-00

$36.99

6

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

7

NUT(6L2)

95333-08600-00

$2.49

8

WASHER, PLATE (397)

90201-08100-00

$8.49

9

BRACKET, LICENSE

34L-21685-00-00

Unavailable

10

BOLT, FLANGE

95817-06030-00

$4.29

11

COLLAR 437216330000

90387-07391-00

Unavailable

12

NUT, HEXAGON

95380-06600-00

Unavailable

13

SCREW PAN HEAD

98580-06020-00

$8.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLATE

90201-06M08-00

Unavailable

16

NUT, HEXAGON

95380-06600-00

Unavailable

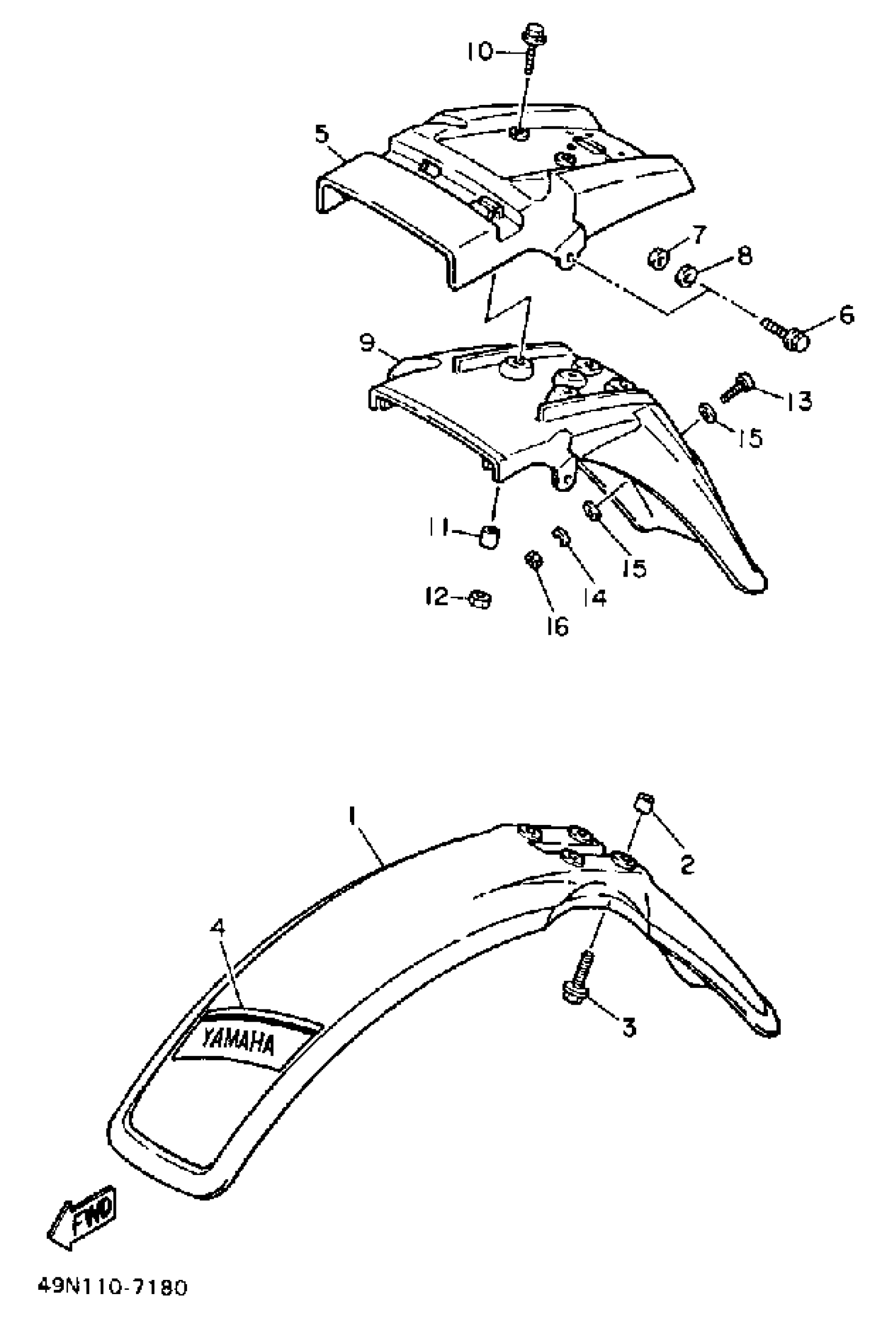

Yamaha XT600TC (XT600 CA) 1987 FENDER Diagram

FENDER, FRONT (WHITE)

COLLAR (8G8)

BOLT, WITH WASHER (10V)

SEAL 1

FENDER, REAR

BOLT, FLANGE(6TA)

NUT(6L2)

WASHER, PLATE (397)

BRACKET, LICENSE

BOLT, FLANGE

COLLAR 437216330000

NUT, HEXAGON

SCREW PAN HEAD

WASHER, SPRING

WASHER, PLATE

NUT, HEXAGON
