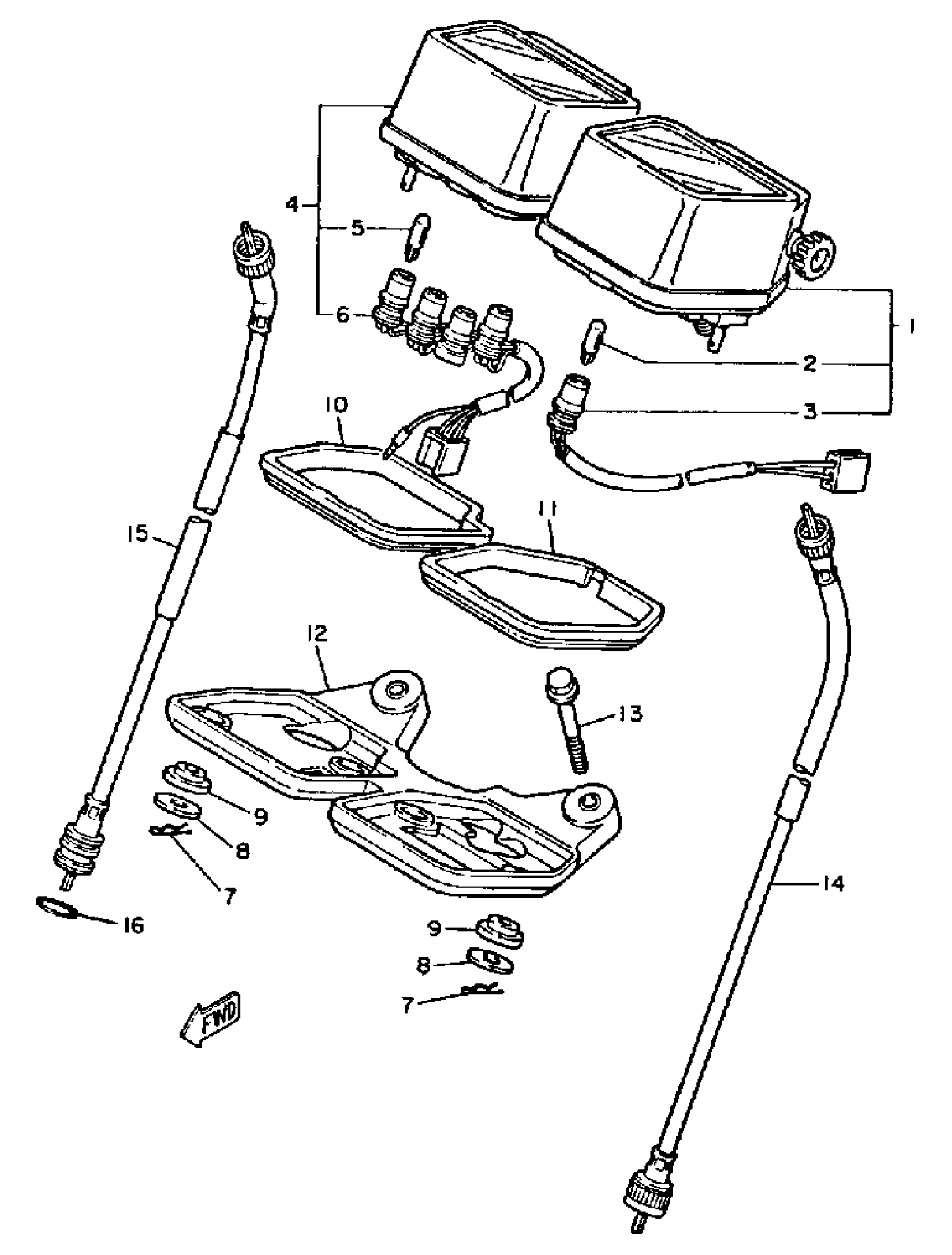

Find the part on the Meter diagram for your 1984 Yamaha XT600 CA (XT600LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha XT600 CA (XT600LC) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

43F-83570-G1-00

1
Out of stock

2

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

3

SOCKET CORD ASSY

5E2-83509-20-00

1

$24.89

In stock

4

TACHOMETER ASY

2NF-83540-00-00

1
Out of stock

5

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

6

. SOCKET CORD ASSEMBLY (30X-83520-00-00)

5Y1-83520-00-00

1
Out of stock

7

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

8

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

9

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

10

DAMPER

5Y1-83541-00-00

1
Out of stock

11

DAMPER

5Y1-83513-00-00

—

$28.86

In stock

12

BRACKET, METER

5Y1-83519-00-00

1
Out of stock

13

BOLT, FLANGE

95817-06040-00

1

$4.54

In stock

14

SPEEDOMETER CABLE ASSY

16M-83550-01-00

1
Out of stock

15

TACHOMETER CABLE ASSY

4PT-83560-01-00

1
Out of stock

16

O-RING (26H)

93210-14579-00

—

$5.69

In stock
