1995 Yamaha XT600E CA (XT600EGC) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1995 Yamaha XT600E CA (XT600EGC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

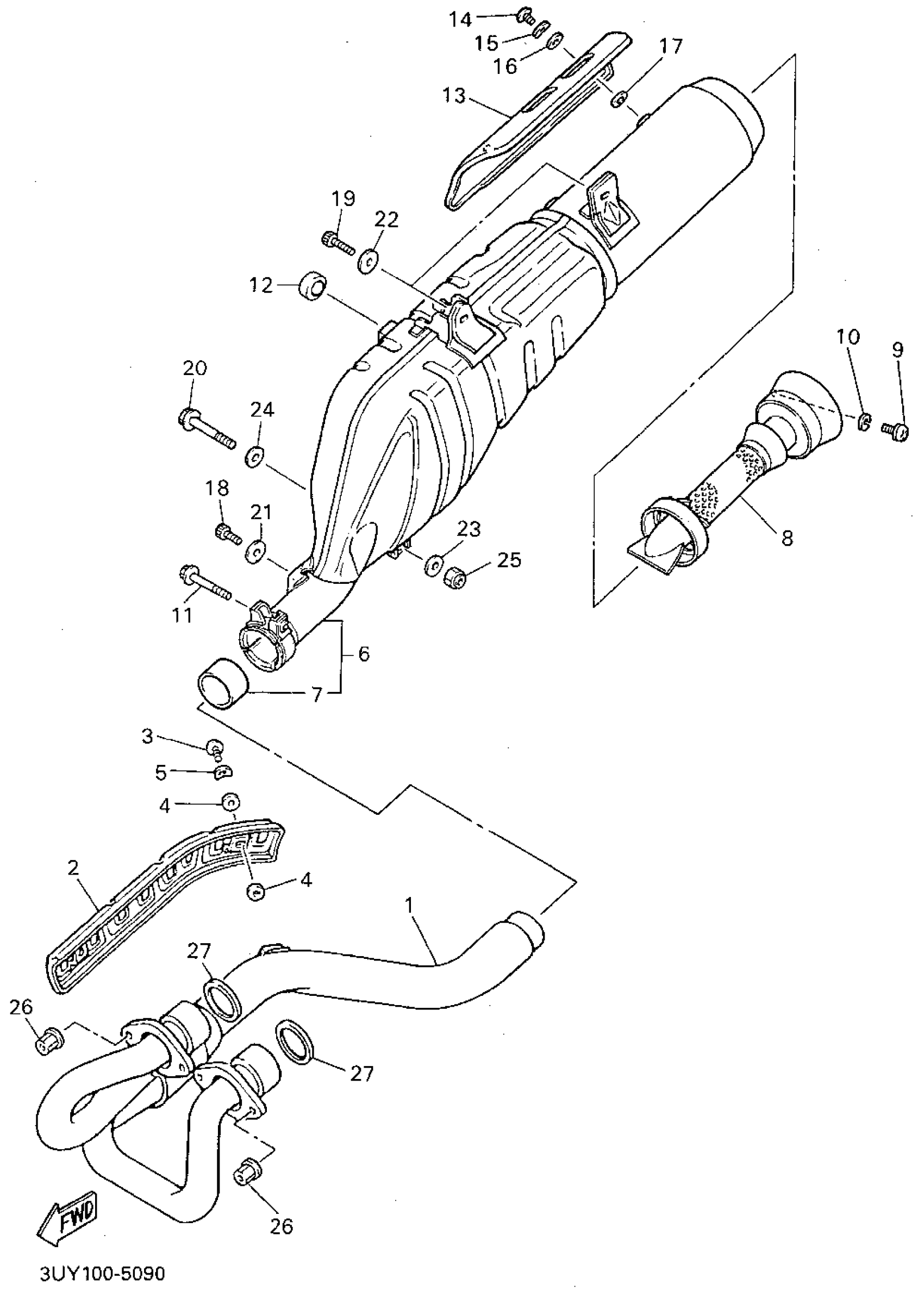

1995 Yamaha XT600E CA (XT600EGC) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST 1

34K-14611-01-00

1
Out of stock

2

PROTECTOR, EXHAUST PIPE

54G-14628-01-00

1
Out of stock

3

SCREW, TAPPING (30X)

90164-06017-00

1
Out of stock

4

WASHER, PROTECTOR

4BD-14766-00-00

1

$5.34

In stock

5

WASHER, WAVE(3RW)

90206-06090-00

1

$6.17

In stock

6

MUFFLER L

3UY-14711-01-00

1
Out of stock

7

GASKET, SILENCER

3YF-14755-00-00

1

$29.10

In stock

8

PIPE, OUTLET

34K-14752-00-00

1
Out of stock

9

SCREW, PAN

98507-06010-00

1
Out of stock

10

WASHER, SPRING

92907-06100-00

1
Out of stock

11

BOLT, FLANGE(4MY)

95027-08040-00

1
Out of stock

12

DAMPER, LOCATING 1

22W-24181-00-00

1
Out of stock

13

PROTECTOR, MUFFLER 2

3TB-14728-00-00

—
Out of stock

14

SCREW, BIND(1JK)

98980-06010-00

1
Out of stock

15

WASHER, WAVE(3RW)

90206-06090-00

1

$6.17

In stock

16

WASHER, PROTECTOR

4BD-14766-00-00

1

$5.34

In stock

17

WASHER, PROTECTOR

4BD-14766-00-00

1

$5.34

In stock

18

BOLT(2KF)

90109-085E2-00

—

$5.98

In stock

19

BOLT (4W3)

90105-10186-00

1
Out of stock

20

BOLT, WASHER BASED (4K0)

90105-10169-00

—

$9.98

In stock

21

WASHER (853)

90201-08326-00

—

$6.17

In stock

22

WASHER, PLATE(52H)

90201-102J5-00

—

$13.94

In stock

23

WASHER, PLATE(47X)

90201-101J1-00

—

$6.17

In stock

24

WASHER, PLATE

90201-10144-00

1
Out of stock

25

NUT, SELF-LOCKING(JN5)

95607-10200-00

—

$3.32

In stock

26

NUT (1AE)

90179-06500-00

—
Out of stock

27

GASKET, EXHAUST PIPE

3YF-14613-01-00

—

$11.58

In stock
