1995 Yamaha XT600E CA (XT600EGC) Electrical 1 Diagram

← All diagrams

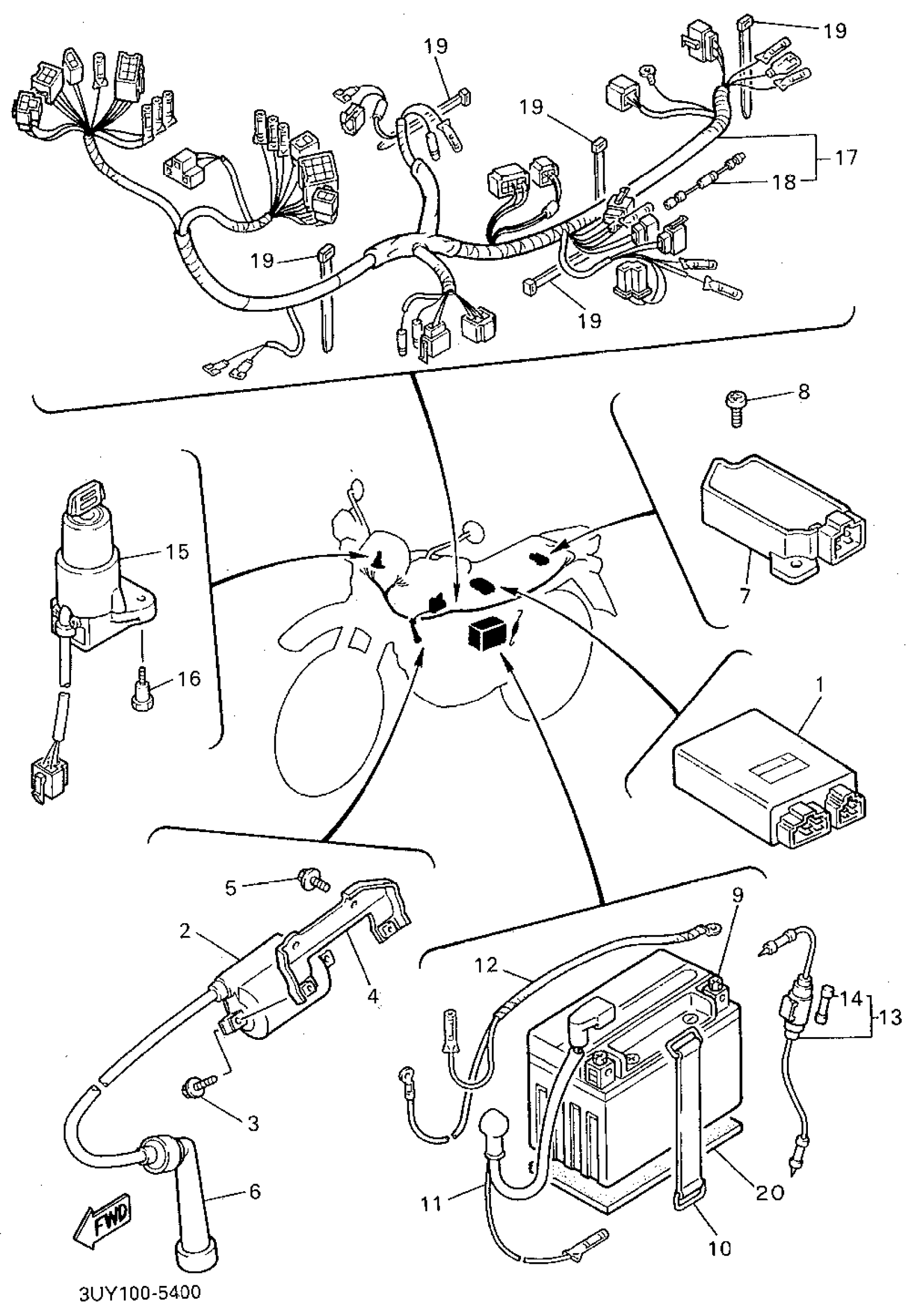

Find the part on the Electrical 1 diagram for your 1995 Yamaha XT600E CA (XT600EGC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha XT600E CA (XT600EGC) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITOR UNIT ASSY

3TB-82305-00-00

—
Out of stock

2

IGNITION COIL ASSY

4DN-82320-01-00

1

$97.02

In stock

3

BOLT(3JK)

97027-05020-00

1

$2.48

In stock

4

BRACKET,IGN COIL

3TB-82316-01-00

1
Out of stock

5

BOLT, FLANGE

95817-06010-00

1

$3.91

In stock

6

PLUG CAP ASSY

4VW-82370-00-00

1
Out of stock

7

RECTIFIER & REGULATOR ASSY

47X-81960-A3-00

—

$180.85

In stock

8

SCREW, PAN

98517-06012-00

1

$3.14

In stock

9

YTX9BS YUASA BATTERY - SA

YTX-9BS00-00-00

1

$109.99

In stock

10

BAND,BATTERY

7H3-82131-00-00

1

$16.03

In stock

11

WIRE, PLUS LEAD

3TB-82115-00-00

1
Out of stock

12

WIRE, MINUS LEAD

3TB-82116-00-00

1
Out of stock

13

FUSE HOLDER ASSY

2UJ-82150-02-00

—
Out of stock

14

FUSE

1A0-82161-00-00

1
Out of stock

15

MAIN SWCH STRG LCK

4DT-82501-00-00

1
Out of stock

16

BOLT

90109-06282-00

—

$3.40

In stock

17

WIRE HARNESS ASY

3UY-82590-01-00

1
Out of stock

18

RECTIFIER 2

3K7-81980-00-00

—
Out of stock

19

BAND

1UA-82591-00-00

—
Out of stock

20

SEAT, BATTERY

5Y1-82122-00-00

—

$6.52

In stock
