1991 Yamaha XT600E CA (XT600EBC) Stand Footrest Diagram

← All diagrams

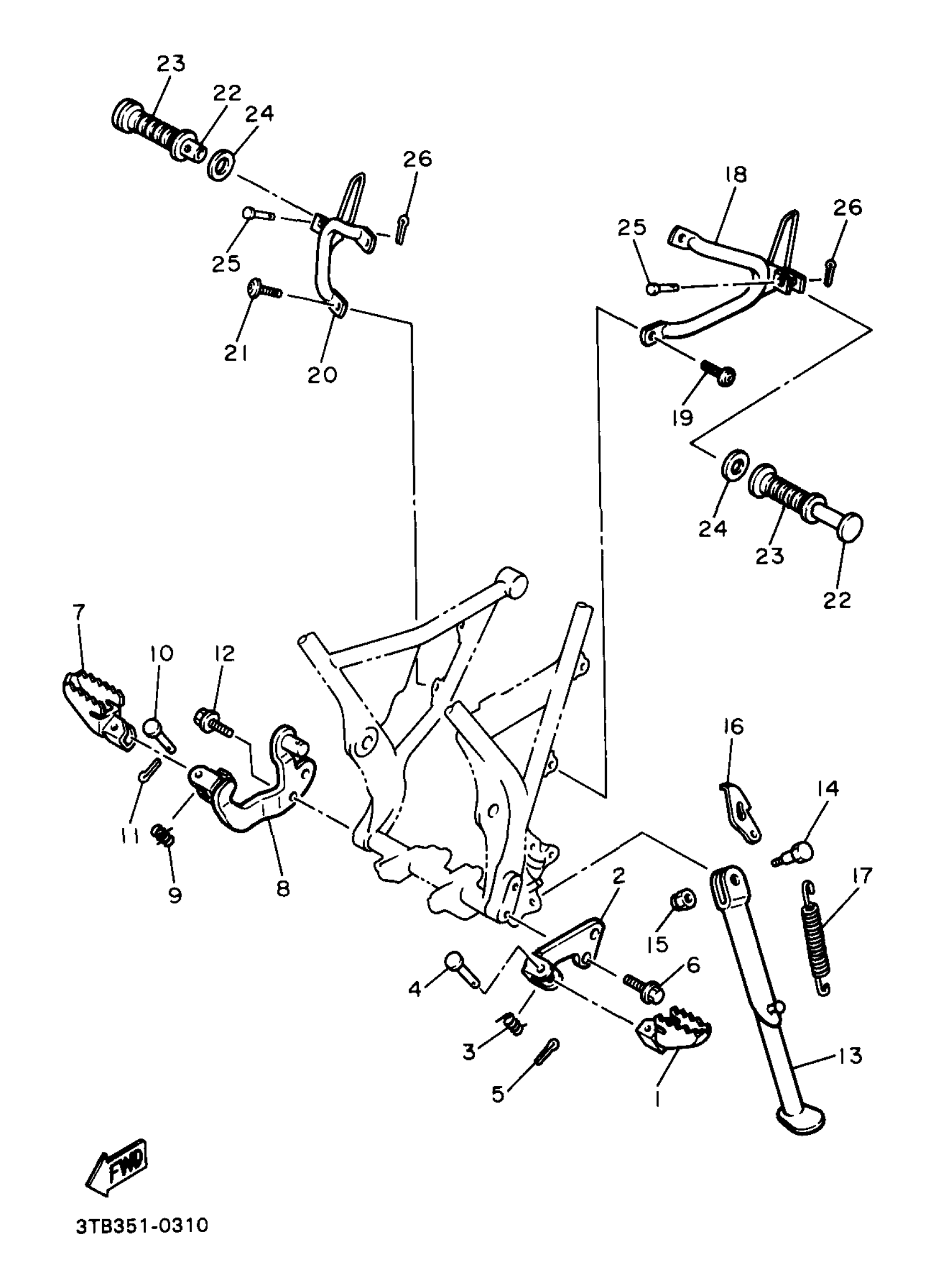

Find the part on the Stand Footrest diagram for your 1991 Yamaha XT600E CA (XT600EBC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Yamaha XT600E CA (XT600EBC) Stand Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST 1

22W-27411-01-90

1
Out of stock

2

BRACKET, FOOTREST 1

34L-27412-00-R4

1
Out of stock

3

SPRING, TORSION (214-27426-00)

90508-20023-00

1
Out of stock

4

PIN, CLEVIS (2A6)

91701-08038-00

1
Out of stock

5

PIN, COTTER

91490-25020-00

1
Out of stock

6

BOLT, FLANGE(3GD)

95817-10025-00

1
Out of stock

7

FOOTREST 2

22W-27421-01-90

1
Out of stock

8

BRACKET, FOOTREST 2

2KF-27422-00-R4

1
Out of stock

9

SPRING, TORSION (214-27426-00)

90508-20023-00

1
Out of stock

10

PIN, CLEVIS (2A6)

91701-08038-00

1
Out of stock

11

PIN, COTTER

91490-25020-00

1
Out of stock

12

BOLT, FLANGE(3GD)

95817-10025-00

1
Out of stock

13

STAND, SIDE

3YF-27311-00-00

1
Out of stock

14

BOLT, WASHER BASED

90105-12616-00

1
Out of stock

15

NUT, SELF LOCKING (23X)

90185-12119-00

1
Out of stock

16

LINK, SIDE STAND

5Y1-27315-00-00

—
Out of stock

17

SPRING, TENSION

90507-32020-00

1
Out of stock

18

BRACKET 1

26F-27432-00-WL

1
Out of stock

19

BOLT, FLANGE(JN5)

95817-08016-00

—
Out of stock

20

BRACKET 2

3YP-27442-00-WL

1
Out of stock

21

BOLT, FLANGE(JN5)

95817-08016-00

—
Out of stock

22

FOOTREST, REAR 1

2GV-27431-00-00

—
Out of stock

23

COVER, REAR FOOTREST

120-27433-00-00

—
Out of stock

24

WASHER, PLATE (888)

90201-20279-00

—
Out of stock

25

PIN, CLEVIS (1Y8)

91701-06032-00

—
Out of stock

26

PIN, COTTER

91490-16020-00

1
Out of stock
