1991 Yamaha XT600E CA (XT600EBC) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1991 Yamaha XT600E CA (XT600EBC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

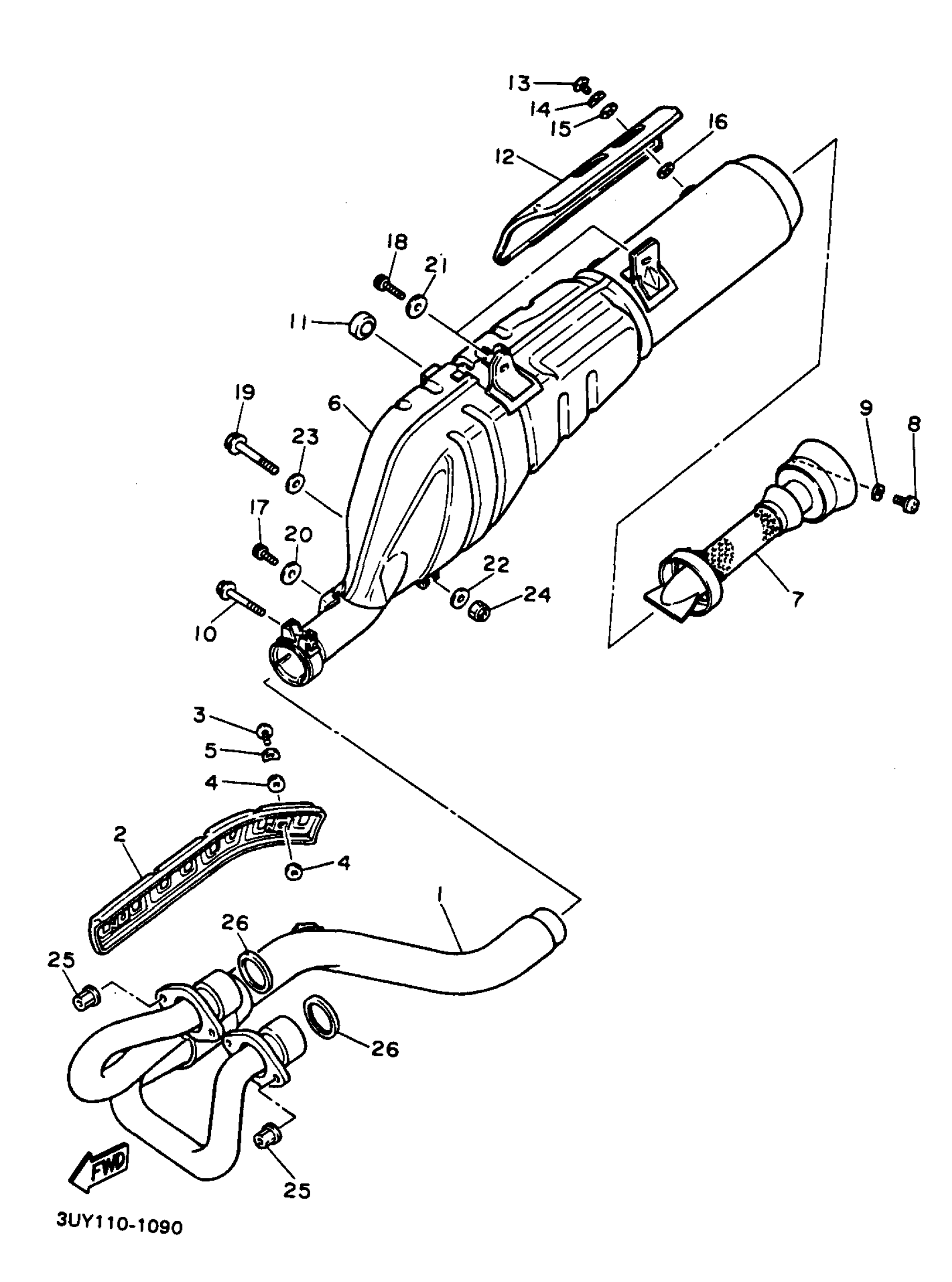

1991 Yamaha XT600E CA (XT600EBC) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST 1

34K-14611-01-00

1
Out of stock

2

PROTECTOR, EXHAUST PIPE

54G-14628-01-00

1
Out of stock

3

SCREW, TAPPING (30X)

90164-06017-00

1
Out of stock

4

WASHER, PROTECTOR

30X-14766-00-00

1
Out of stock

5

WASHER, WAVE(3RW)

90206-06090-00

1

$6.17

In stock

6

MUFFLER L

3UY-14711-01-00

1
Out of stock

7

PIPE, OUTLET

34K-14752-00-00

1
Out of stock

8

SCREW, PAN

98507-06010-00

1
Out of stock

9

WASHER, SPRING

92907-06100-00

1
Out of stock

10

BOLT, FLANGE(JN5)

95817-08045-00

1
Out of stock

11

DAMPER, LOCATING 1

22W-24181-00-00

1
Out of stock

12

PROTECTOR, MUFFLER 2

3TB-14728-00-00

—
Out of stock

13

SCREW, BIND(1JK)

98980-06010-00

1
Out of stock

14

WASHER, WAVE(3RW)

90206-06090-00

1

$6.17

In stock

15

WASHER, PROTECTOR

4BD-14766-00-00

1

$5.34

In stock

16

WASHER, PROTECTOR

30X-14766-00-00

1
Out of stock

17

BOLT(2KF)

90109-085E2-00

—

$5.98

In stock

18

BOLT (4W3)

90105-10186-00

1
Out of stock

19

BOLT, WASHER BASED (4K0)

90105-10169-00

—

$9.98

In stock

20

WASHER (853)

90201-08326-00

—

$6.17

In stock

21

WASHER, PLATE(52H)

90201-102J5-00

—

$13.94

In stock

22

WASHER, PLATE(47X)

90201-101J1-00

—

$6.17

In stock

23

WASHER, PLATE

90201-10144-00

1
Out of stock

24

NUT, SELF-LOCKING(JN5)

95607-10200-00

—

$3.32

In stock

25

NUT (1AE)

90179-06500-00

—
Out of stock

26

GASKET, EXHAUST PIPE

3YF-14613-01-00

—

$11.58

In stock
