1990 Yamaha XT600E CA (XT600EAC) Front Master Cylinder Diagram

← All diagrams

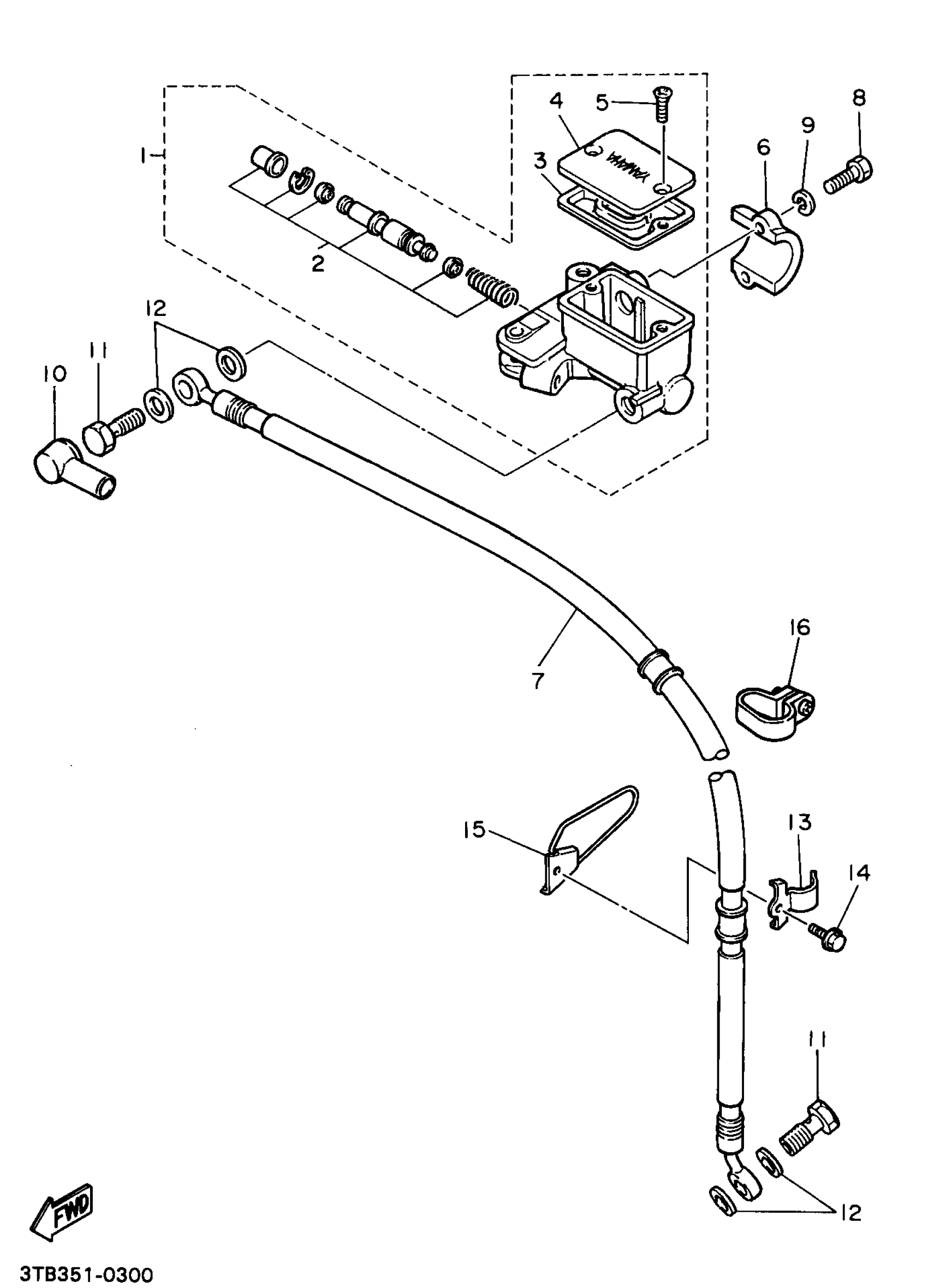

Find the part on the Front Master Cylinder diagram for your 1990 Yamaha XT600E CA (XT600EAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha XT600E CA (XT600EAC) Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MASTER CYLINDER SUB ASSY

3TB-25870-00-00

1

$255.25

In stock

2

CYLINDER KIT, MASTER

23L-W0041-00-00

1

$118.23

In stock

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

1

$21.77

In stock

4

CAP, RESERVOIR

4H7-25852-00-00

1

$34.70

In stock

5

SCREW, FLAT

98707-04012-00

1

$1.43

In stock

6

BRACKET, MASTER CYLINDER

4L0-25867-00-00

—

$28.31

In stock

7

BRAKE HOSE SET (3TB)

99999-02429-00

1
Out of stock

8

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

9

WASHER, SPRING

92907-06100-00

1
Out of stock

10

BOOT, MASTER CYLINDER

4L0-25862-01-00

1

$3.03

In stock

11

BOLT, UNION(3GM)

90401-10159-00

1

$8.85

In stock

12

WASHER, PLATE(481)

90201-10118-00

—

$2.91

In stock

13

CLAMP

90461-16124-00

1
Out of stock

14

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

15

HOLDER, CABLE 1

3TB-23318-00-00

1
Out of stock
