1982 Yamaha XT550 (XT550J) Shift Shaft Pedal Diagram

← All diagrams

Find the part on the Shift Shaft Pedal diagram for your 1982 Yamaha XT550 (XT550J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

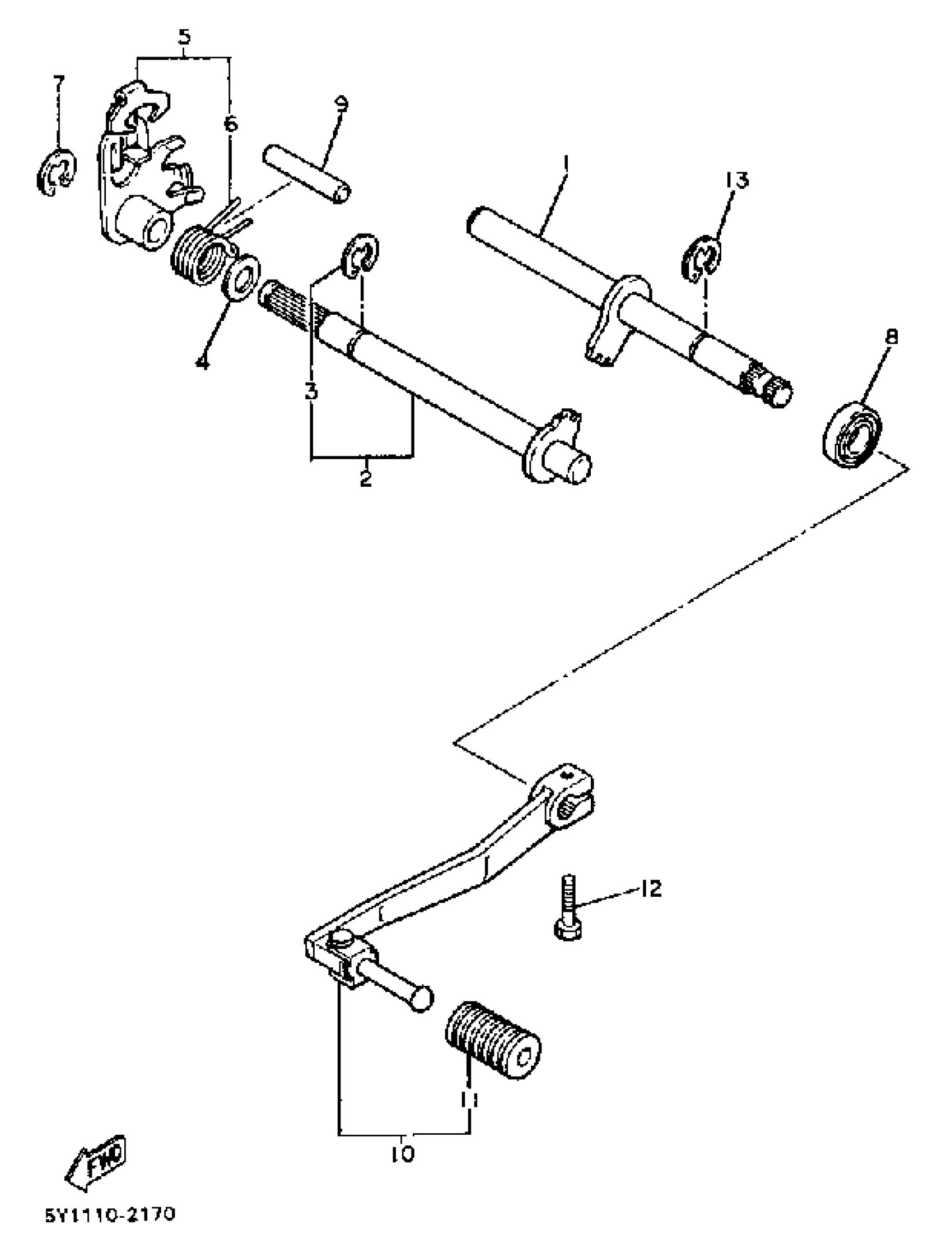

1982 Yamaha XT550 (XT550J) Shift Shaft Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSY 2

43F-18102-02-00

—

$25.02

In stock

2

SHIFT SHAFT ASSEMBLY

5Y1-18101-02-00

1
Out of stock

3

CIRCLIP

99006-10600-00

1

$6.91

In stock

4

WASHER PLATE 102181410000

90201-12474-00

1
Out of stock

5

SHIFT LEVER ASSY

34K-18120-01-00

1
Out of stock

6

. SPRING, TORSION

90508-29629-00

1
Out of stock

7

CIRCLIP(J51)

99080-09600-00

1

$1.88

In stock

8

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

9

PIN, DOWEL

93608-33046-00

1
Out of stock

10

SHIFT PEDAL ASSY

1VJ-18110-01-00

—

$76.49

In stock

11

COVER, CHANGE PEDAL

1W6-18113-00-00

1

$3.91

In stock

12

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

13

CIRCLIP

99006-10600-00

1

$6.91

In stock
