1981 Yamaha XT500 (XT500H) Shift CAM Fork Diagram

← All diagrams

Find the part on the Shift CAM Fork diagram for your 1981 Yamaha XT500 (XT500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

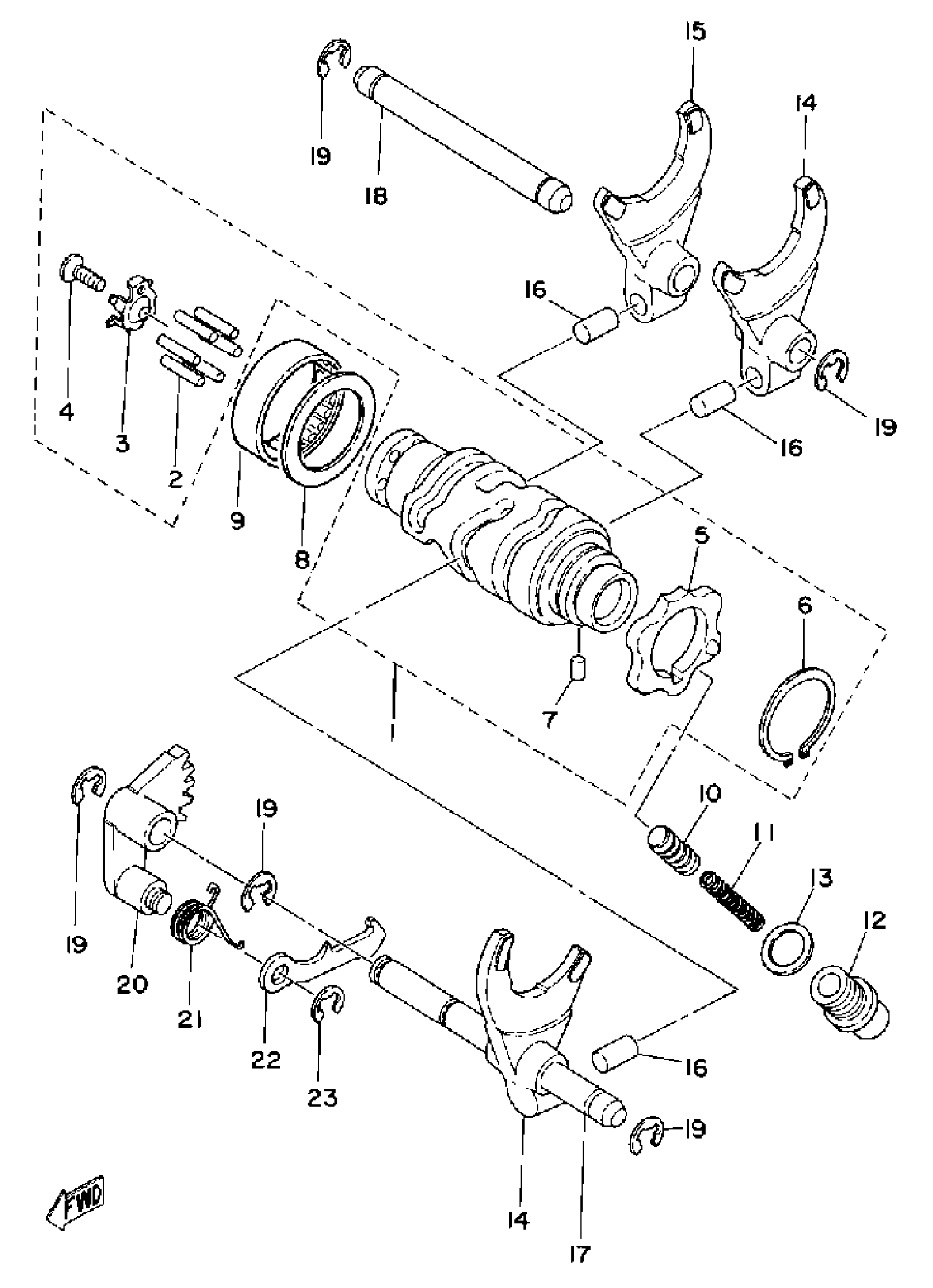

1981 Yamaha XT500 (XT500H) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

2J2-18540-00-00

—
Out of stock

2

PIN, DOWEL (363)

93604-18100-00

1

$2.22

In stock

3

PLATE, SIDE

434-18561-00-00

1
Out of stock

4

SCREW, FLAT

98707-05012-00

1
Out of stock

5

PLATE STOPPER SET

2J2-W1814-00-00

—
Out of stock

6

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

7

PIN, DOWEL (278)

93604-08071-00

1

$6.17

In stock

8

WASHER, PLATE (2J2)

90201-32673-00

1

$3.84

In stock

9

BRG,CYL-CAL ROLLER 18G KY

93315-23208-00

1

$29.23

In stock

10

STOPPER, CAM

1J7-18547-00-00

1

$9.00

In stock

11

SPRING COMPRESSION278185570000

90501-10062-00

1
Out of stock

12

BOLT

90109-14002-00

1

$10.29

In stock

13

WASHER, PROTECTOR

4F4-14766-00-00

1

$6.11

In stock

14

FORK, SHIFT

364-18511-00-00

—
Out of stock

15

FORK, SHIFT 1

363-18511-00-00

—
Out of stock

16

PIN, STRAIGHT

90250-08017-00

1
Out of stock

17

BAR, SHIF FRK GDE 1

(363-18531-00-00)

1
Out of stock

18

BAR, SHIFT FORK GUIDE 2

363-18535-00-00

—
Out of stock

19

CIRCLIP(2R6)

99001-08600-00

—
Out of stock

20

LEVER, CHANGE 2

434-18122-00-00

—
Out of stock

21

SPRING, TORSION (1M1)

90508-08334-00

—
Out of stock

22

LEVER, CHANGE 3

498-18151-03-00

—
Out of stock

23

CIRCLIP

99080-07600-00

1

$2.89

In stock
