1981 Yamaha XT500 (XT500H) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1981 Yamaha XT500 (XT500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

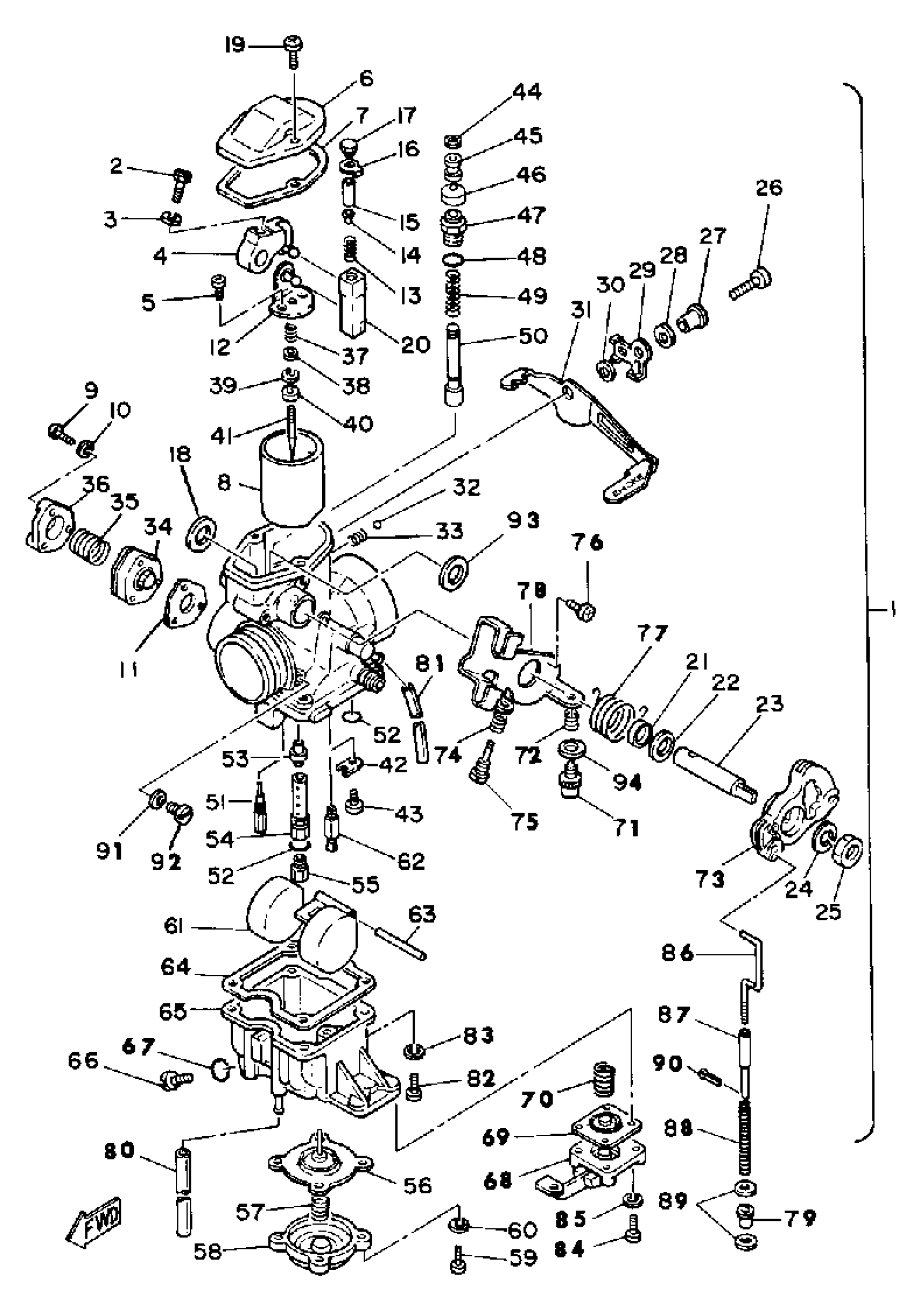

1981 Yamaha XT500 (XT500H) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(3H6-14101-00-00)

1
Out of stock

2

SCREW

(2V0-14592-00-00)

1
Out of stock

3

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

4

BRACKET 2

(3H1-14292-00-00)

1
Out of stock

5

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

6

TOP, MIXING CHAMBER

(3H1-14158-00-00)

1
Out of stock

7

GASKET, MIXING CHAMBER TOP

583-14536-00-00

—

$37.68

In stock

8

VALVE, THROTTLE 1

(3H1-14112-35-00)

1
Out of stock

9

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

GASKET, ENRICHMENT PUMP

2H0-14198-00-00

—
Out of stock

12

BRACKET 1

(3H1-14291-00-00)

1
Out of stock

13

SPRING, DIAPHRAGM

(1T2-14933-00-00)

1
Out of stock

14

WASHER

(583-14558-00-00)

1
Out of stock

15

PIN, FLOAT

(583-14386-00-00)

1
Out of stock

16

WASHER

(583-14951-00-00)

1
Out of stock

17

SCREW

(3H1-14216-00-00)

1
Out of stock

18

. SPACER

583-14264-00-00

1
Out of stock

19

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

20

CONNECTOR

(583-14274-00-00)

1
Out of stock

21

. SEAL

583-14239-01-00

1
Out of stock

22

. COLLAR

583-14265-00-00

1
Out of stock

23

SHAFT, THRTL LEVER

(3H1-14215-00-00)

1
Out of stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

25

NUT

812-14594-00-00

—

$5.34

In stock

26

SCREW, PAN HEAD

(98502-06014-00)

1
Out of stock

27

. RING

2J2-14194-00-00

1
Out of stock

28

. WASHER

2J2-14962-00-00

1
Out of stock

29

. PLATE, STARTER LVR

2H0-14178-00-00

1
Out of stock

30

. SPRING, CHOKE LEVER

2H0-14218-00-00

1
Out of stock

31

LEVER, STARTER 1

(3H6-14175-00-00)

1
Out of stock

32

BALL

93501-08001-00

—

$0.97

In stock

33

SPRING

583-14589-00-00

—

$4.74

In stock

34

ENRICHMENT PUMP BODY ASSY

2H0-14217-00-00

—

$124.82

In stock

35

. SPRING, DIAPHRAGM

3H6-14933-00-00

1
Out of stock

36

COVER, DIAPHRAGM

(2H0-14958-00-00)

1
Out of stock

37

. SPRING

3H1-14589-00-00

1
Out of stock

38

. WASHER

2N6-14227-01-00

1
Out of stock

39

CLIP

3FA-14137-00-00

—

$6.80

In stock

40

. RING

2N6-14918-01-00

1
Out of stock

41

NEEDLE

(644-14116-34-00)

1
Out of stock

42

. PLATE

2H0-14146-00-00

1
Out of stock

43

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

44

. CLIP

737-14137-00-00

1
Out of stock

45

. RING

583-14918-00-00

1
Out of stock

46

COVER, PLUNGER CAP

(3H1-14173-00-00)

1
Out of stock

47

. CAP, PLUNGER

2H0-14174-00-00

1
Out of stock

48

. O-RING

583-14562-00-00

1
Out of stock

49

. SPRING, PLUNGER

256-14135-00-00

1
Out of stock

50

. PLUNGER, STARTER

2H0-14171-00-00

1
Out of stock

51

JET, PILOT (# 20)

3H1-14142-20-00

—

$12.27

In stock

52

O-RING

583-14561-00-00

—

$4.74

In stock

53

. NOZZLE, MAIN

2H0-14141-48-00

1
Out of stock

54

. PIPE

3H1-14148-00-00

1
Out of stock

55

JET, MAIN #250

137-14143-50-A1

—
Out of stock

56

DIAPHRAGM ASSY

3H1-14940-00-00

—

$32.74

In stock

57

. SPRING, DIAPHRAGM

3H1-14933-00-00

1
Out of stock

58

COVER, DIAPHRAGM

(3H1-14958-00-00)

1
Out of stock

59

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

60

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

61

. FLOAT

3H1-14185-00-00

1
Out of stock

62

. NEEDLE VALVE ASSEMBLY

3H1-14190-28-00

1
Out of stock

63

PIN, FLOAT

537-14186-00-00

—
Out of stock

64

GASKET, FLOAT CHAMBER

3H1-14184-00-00

—

$14.20

In stock

65

BODY CHAMBER ASSEMBLY

(99999-01147-00)

1
Out of stock

66

SCREW

2L1-14191-00-00

—
Out of stock

67

O-RING

214-14147-00-00

—
Out of stock

68

. LEVER, STARTER

2H0-14905-00-00

1
Out of stock

69

DIAPHRAGM ASSY

2J4-14940-00-00

—

$54.37

In stock

70

. SPRING

2J4-14589-00-00

1
Out of stock

71

SCREW, THRTL STOP

(2H6-14121-00-00)

1
Out of stock

72

SPRING

8X0-14500-00-00

—

$17.91

In stock

73

LEVER

(3H1-14573-00-00)

1
Out of stock

74

. SPRING, THRTL STOP

583-14133-00-00

1
Out of stock

75

. SCREW, GUIDE

583-14245-00-00

1
Out of stock

76

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

77

. SPRING, THRTL VALVE

583-14131-01-00

1
Out of stock

78

BRACKET, THROTTLE

(3H1-14571-00-00)

1
Out of stock

79

. COLLAR

2H0-14534-00-00

1
Out of stock

80

. PIPE (43214-19700-00)

510-14197-00-00

1
Out of stock

81

HOSE (L340)

90445-08684-00

—

$3.37

In stock

82

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

83

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

84

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

85

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

86

. ROD

3H1-14992-00-00

1
Out of stock

87

. ROD

2H0-14992-00-00

1
Out of stock

88

. SPRING

2J2-14589-00-00

1
Out of stock

89

. WASHER

2H0-14227-00-00

1
Out of stock

90

. PIN, COTTER

91401-10015-00

1
Out of stock

91

.. WASHER, PLUG SCREW

584-14956-00-00

1
Out of stock

92

. PLUG, SCREW

2F5-14115-00-00

1
Out of stock

93

. WASHER

3H1-14227-00-00

1
Out of stock

94

WASHER (3H1)

1A8-14953-00-00

—

$3.69

In stock
