1979 Yamaha XT500 (XT500F) Shifter 2 Diagram

← All diagrams

Find the part on the Shifter 2 diagram for your 1979 Yamaha XT500 (XT500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

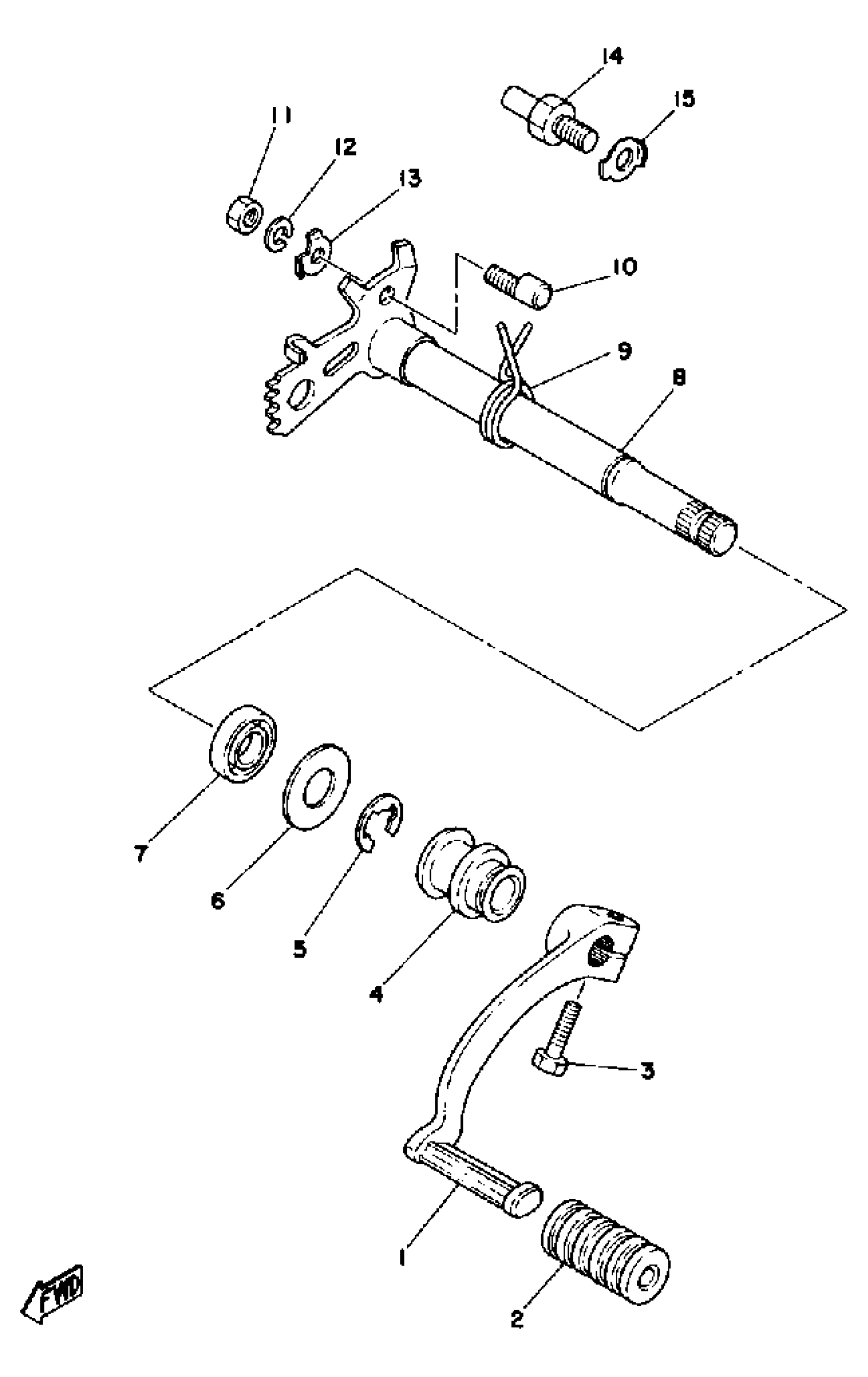

1979 Yamaha XT500 (XT500F) Shifter 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, SHIFT

3UL-18111-00-00

1
Out of stock

2

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

3

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

4

BOOTS, SEALING

583-18131-00-00

1
Out of stock

5

. CIRCLIP

99001-12600-00

1

$5.78

In stock

6

WASHER PLATE 248181370000

90201-14220-00

1

$6.17

In stock

7

OIL SEAL (14X24X6-256)

93109-14010-00

1

$10.66

In stock

8

SHIFT SHAFT COMP.

2J2-18103-00-00

1
Out of stock

9

SPRING TORSION 214181240000

90508-32052-00

1
Out of stock

10

SCREW 214181860000

90149-06017-00

1
Out of stock

11

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

WASHER, LOCK

90215-06016-00

1
Out of stock

14

STOPPER, SCREW

278-18127-01-00

1
Out of stock

15

WASHER, LOCK (583 SHIFT)

90215-08115-00

1
Out of stock
