1978 Yamaha XT500 (XT500E) Shift CAM - Fork Diagram

← All diagrams

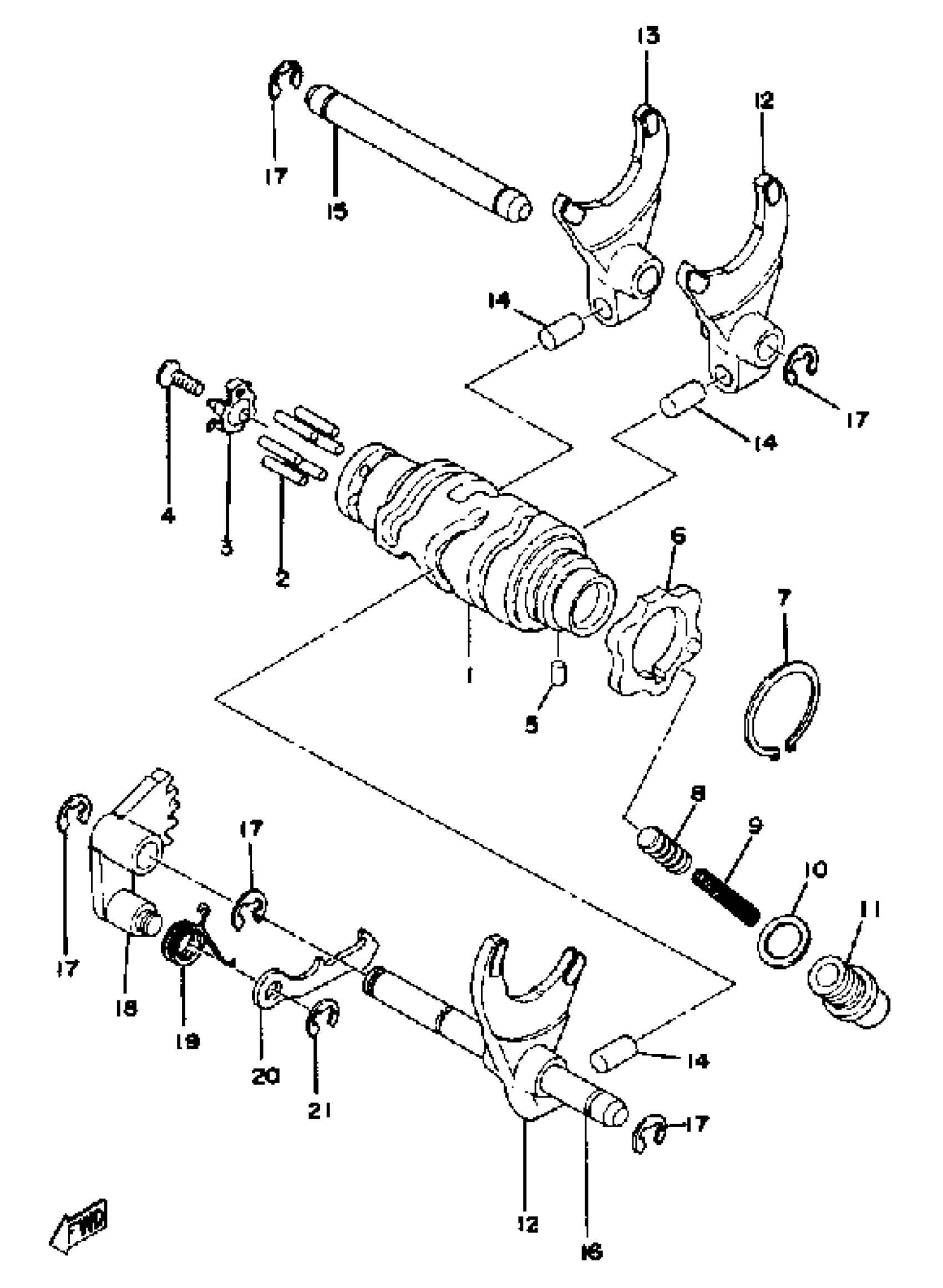

Find the part on the Shift CAM - Fork diagram for your 1978 Yamaha XT500 (XT500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha XT500 (XT500E) Shift CAM - Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY (434-18541-03)

434-18540-03-00

1
Out of stock

2

PIN, DOWEL (363)

93604-18100-00

1

$2.22

In stock

3

PLATE, SIDE

434-18561-00-00

1
Out of stock

4

SCREW, FLAT

98707-05012-00

1
Out of stock

5

PIN, DOWEL (278)

93604-08071-00

1

$6.17

In stock

6

PLATE, STOPPER

1E6-18141-01-00

1
Out of stock

7

CIRCLIP(4A6)

99009-30400-00

1

$6.55

In stock

8

STOPPER, CAM

278-18547-02-00

1
Out of stock

9

SPRING COMPRESSION278185570000

90501-10062-00

1
Out of stock

10

WASHER, PROTECTOR

4F4-14766-00-00

1

$6.11

In stock

11

BOLT

90109-14002-00

1

$10.29

In stock

12

FORK, SHIFT

364-18511-00-00

—
Out of stock

13

FORK, SHIFT 1

363-18511-00-00

—
Out of stock

14

PIN, STRAIGHT

90250-08017-00

1
Out of stock

15

BAR, SHIFT FORK GUIDE 2

363-18535-00-00

—
Out of stock

16

BAR, SHIF FRK GDE 1

(363-18531-00-00)

1
Out of stock

17

CIRCLIP(2R6)

99001-08600-00

—
Out of stock

18

LEVER, CHANGE 2

434-18122-00-00

—
Out of stock

19

SPRING

90508-08008-00

1
Out of stock

20

LEVER, CHANGE 3

498-18151-03-00

—
Out of stock

21

CIRCLIP

99080-07600-00

1

$2.89

In stock
