REAR WHEEL

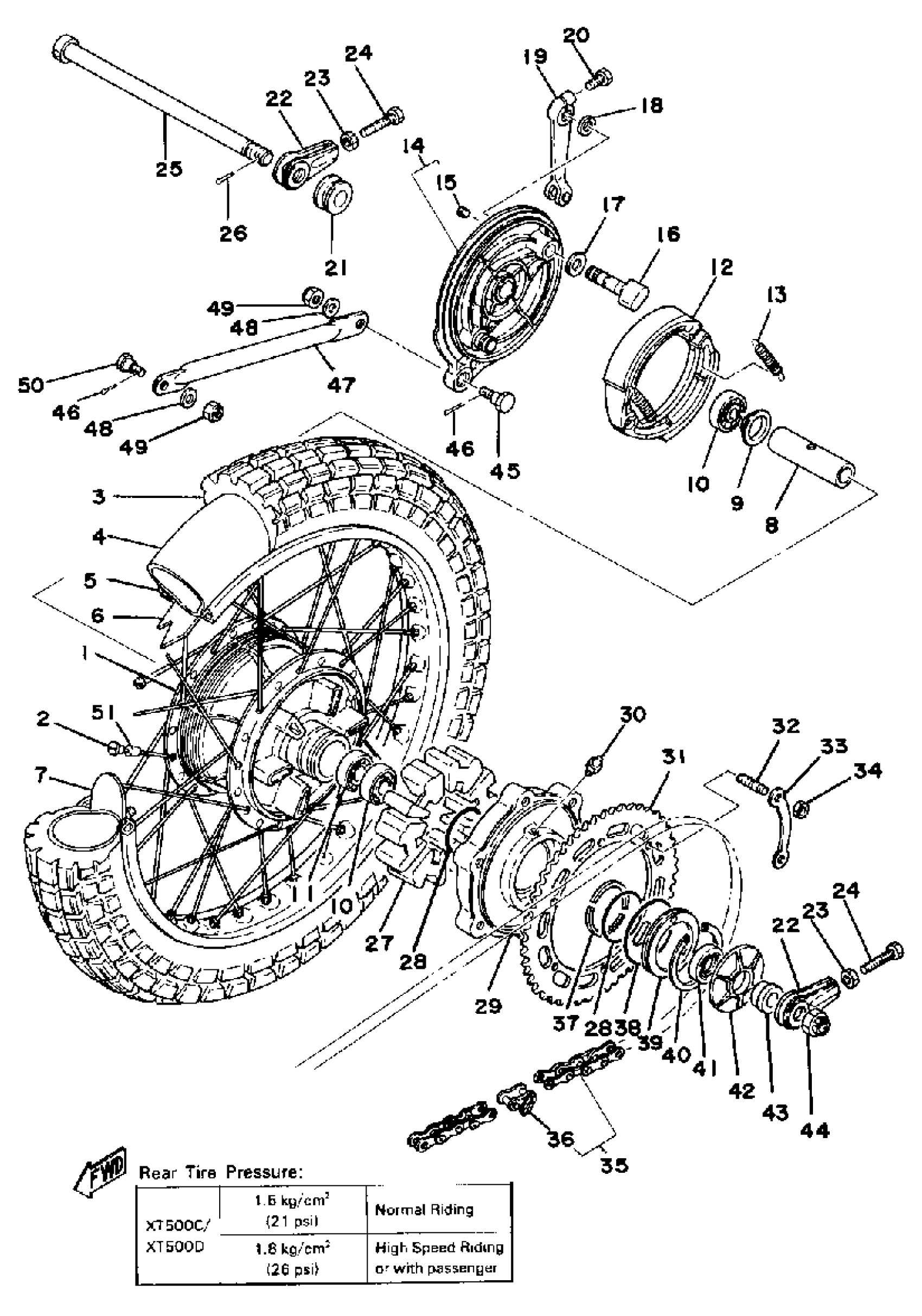

1977 Yamaha XT500 (XT500D) Rear Wheel Diagram
Find the part on the Rear Wheel diagram for your 1977 Yamaha XT500 (XT500D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HUB, REAR
(1E6-25311-00-98)
3
400X18 BS TW5A
94140-18344-00
5
RIM 1.85X18
94418-18199-00
8
SPACER
90560-17311-00
12
BRAKE SHOE KIT
3GW-W253A-00-00
14
BRAKE SHOE PLT ASSEMBLY
1E6-25321-12-98
16
CAMSHAFT
214-25351-01-00
18
SEAL, CAM SHAFT
148-25359-00-00
19
. LEVER, CAMSHAFT (168-25355-00)
4V5-25355-00-00
21
COLLAR(3SX)
90387-170X9-00
22
PULLER, CHAIN 1
48U-25388-00-00
25
AXLE,WHEEL
150-25381-01-00
27
DAMPER, CLUTCH
1E6-25364-00-00
29
CLUTCH, HUB
1E6-25366-00-98
31
SPROCKET, DRIVEN 44T
38W-25444-20-00
31
SPROCKET, DRIVN 40T
583-25440-10-00
31
SPROCKET, DRIVN 42T
583-25442-10-00
31
SPROCKET, DRIVN 46T
583-25446-10-00
31
SPROCKET, DRIVN 48T (48T)
583-25448-10-00
33
WASHER
2XJ-25412-00-00
34
NUT (583)
90170-08193-00
35
520D5-100L DID (94515-20100)
9Y585-20099-00
36
JOINT, CHAIN
94681-68001-00
37
STOPPER, HUB
1E6-25318-01-00
39
SEAL, HUB DUST
1E6-25319-01-00
40
CIRCLIP (1E6)
93450-78080-00
42
COVER, HUB DUST
1E6-25367-00-00
44
NUT, CASTLE
90171-16007-00
45
BOLT (537 TENSION BAR)
90109-08406-00
47
BAR, TENSION
3H7-25371-00-00
