1976 Yamaha XT500 (XT500C) Carburetor Diagram

← All diagrams

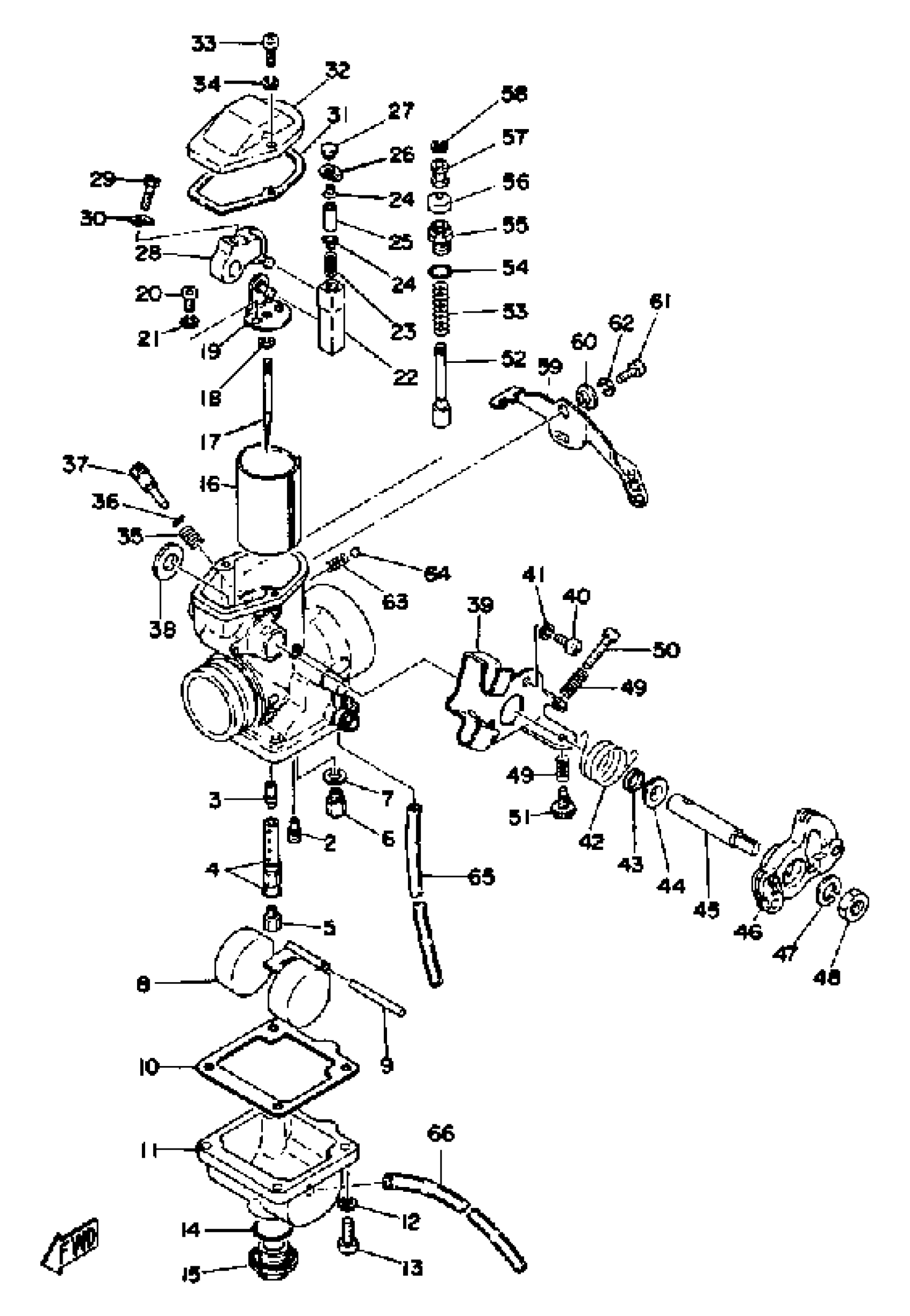

Find the part on the Carburetor diagram for your 1976 Yamaha XT500 (XT500C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha XT500 (XT500C) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(1E6-14101-60-00)

1
Out of stock

1

O-RING

583-14561-00-00

1

$4.74

In stock

2

JET, PIL0T(# 35)

193-14142-35-00

1

$9.42

In stock

3

. NOZZLE, MAIN (Q-2)

583-14141-52-00

1
Out of stock

4

PIPE, JET NEEDLE

583-14148-00-00

—

$23.49

In stock

5

JET, MAIN #200

137-14143-40-A1

1
Out of stock

5

JET, MAIN #210

137-14143-42-A1

—

$10.62

In stock

5

JET, MAIN #220

137-14143-44-A1

1
Out of stock

6

NEEDLE VALVE SET

23L-14107-25-00

1
Out of stock

7

WASHER, VALVE SEAT

214-14195-00-00

1

$6.11

In stock

8

. FLOAT

583-14185-00-00

1
Out of stock

9

PIN, FLOAT

127-14186-00-00

1

$6.23

In stock

10

GASKET, FLOAT CHAMBER BODY

583-14184-00-00

—

$36.92

In stock

11

BODY, FLOAT CHMBR 1

(1E6-14181-12-00)

1
Out of stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

SCREW, PAN

98507-06014-00

—

$6.18

In stock

14

O-RING (541)

558-14147-00-00

—
Out of stock

15

PLUG, SCREW

500-14115-00-00

—

$25.29

In stock

16

VALVE, THROTTLE 1

(583-14112-45-00)

1
Out of stock

17

. NEEDLE (5J10-3)

316-14116-10-00

1
Out of stock

18

CLIP

3FA-14137-00-00

—

$6.80

In stock

19

BRACKET 1

(583-14291-00-00)

1
Out of stock

20

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

21

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

22

CONNECTOR

(583-14274-00-00)

1
Out of stock

23

SPRING, DIAPHRAGM

(583-14933-00-00)

1
Out of stock

24

WASHER

(583-14558-00-00)

1
Out of stock

25

PIN, FLOAT

(583-14386-00-00)

1
Out of stock

26

WASHER

(583-14951-00-00)

1
Out of stock

27

SCREW

(583-14216-00-00)

1
Out of stock

28

LEVER, THROTTL.VALV

(583-14292-00-00)

1
Out of stock

29

. SCREW

583-14592-00-00

1
Out of stock

30

WASHER

(583-14597-00-00)

1
Out of stock

31

GASKET, MIXING CHAMBER TOP

583-14536-00-00

—

$37.68

In stock

32

TOP, MIXING CHAMBER

(583-14158-00-00)

1
Out of stock

33

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

34

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

35

SPRING, AIR ADJUSTING

127-14134-00-00

—

$6.37

In stock

36

O-RING (493-CARB.)

354-14147-00-00

—

$13.06

In stock

37

AIR SCREW SET

10W-14104-00-00

—
Out of stock

38

. SPACER

583-14264-00-00

1
Out of stock

39

BRACKET, THROTTLE

(583-14571-00-00)

1
Out of stock

40

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

41

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

42

. SPRING, THRTL VALVE

583-14131-01-00

1
Out of stock

43

. SEAL

583-14239-01-00

1
Out of stock

44

. COLLAR

583-14265-00-00

1
Out of stock

45

SHAFT, THRTL LEVER

(583-14215-00-00)

1
Out of stock

46

LEVER

(583-14573-00-00)

1
Out of stock

47

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

48

NUT

812-14594-00-00

—

$5.34

In stock

49

. SPRING, THRTL STOP

583-14133-00-00

1
Out of stock

50

. SCREW, GUIDE

583-14245-00-00

1
Out of stock

51

SCREW, THRTL STOP

(583-14121-00-00)

1
Out of stock

52

PLUNGER, STARTER

(583-14171-01-00)

1
Out of stock

53

. SPRING, PLUNGER

500-14135-00-00

1
Out of stock

54

. O-RING

583-14562-00-00

1
Out of stock

55

. CAP, PLUNGER

583-14174-00-00

1
Out of stock

56

. COVER, PLUNGER CAP

802-14173-00-00

1
Out of stock

57

. RING

583-14918-00-00

1
Out of stock

58

. CLIP

737-14137-00-00

1
Out of stock

59

. LEVER, STARTER 1

583-14175-01-00

1
Out of stock

60

. NUT

583-14594-00-00

1
Out of stock

61

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

62

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

63

SPRING

583-14589-00-00

—

$4.74

In stock

64

BALL

93501-08001-00

—

$0.97

In stock

65

HOSE (L340)

90445-08684-00

—

$3.37

In stock

66

. PIPE (43214-19700-00)

510-14197-00-00

1
Out of stock
