1988 Yamaha XT350 (XT350U) Shift CAM - Fork Diagram

← All diagrams

Find the part on the Shift CAM - Fork diagram for your 1988 Yamaha XT350 (XT350U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

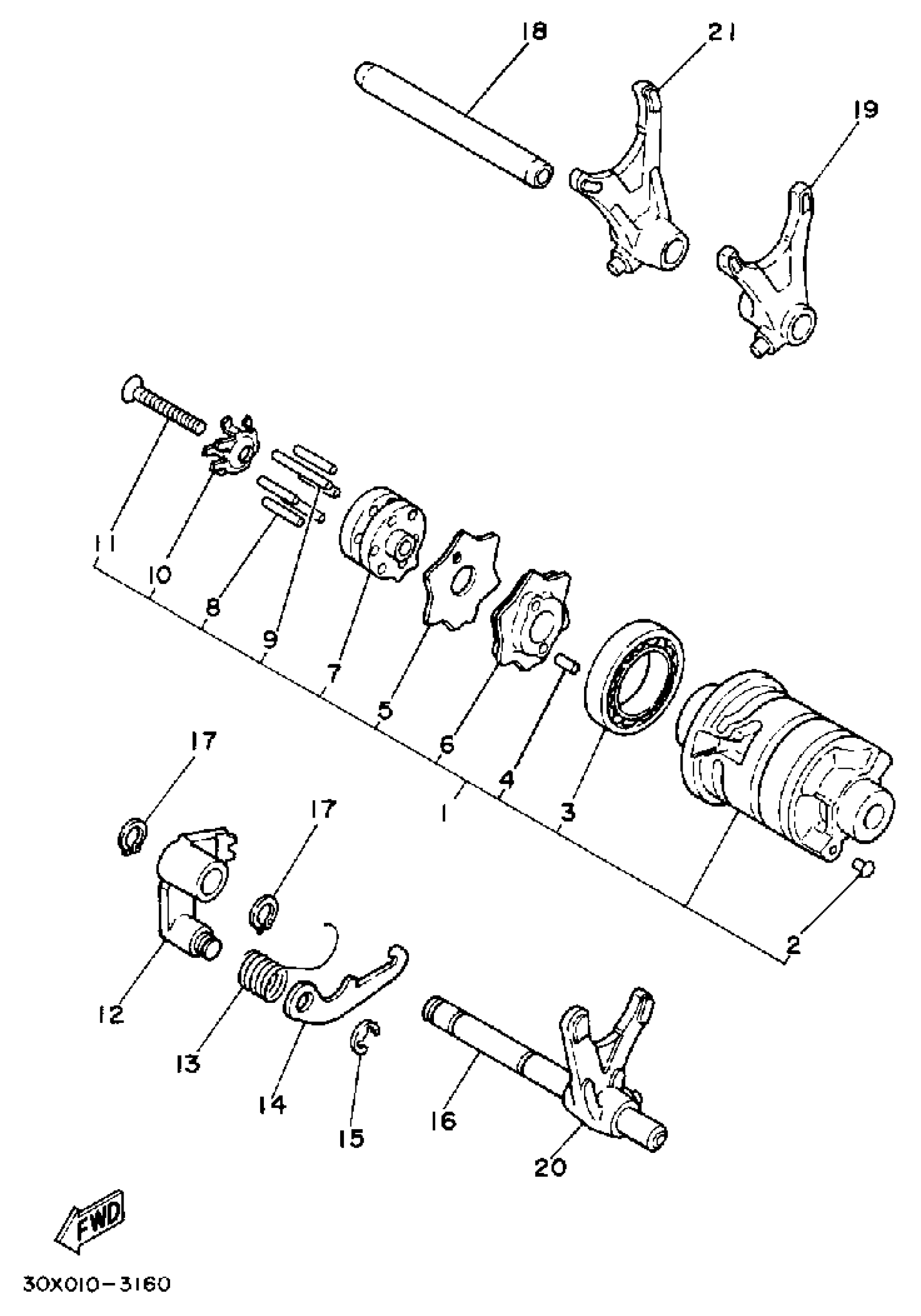

1988 Yamaha XT350 (XT350U) Shift CAM - Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

30X-18540-00-00

1
Out of stock

2

POINT,NEUTRAL (150610)

136-18542-00-00

1

$5.31

In stock

3

BEARING (5K5)

93306-90501-00

1
Out of stock

4

PIN, DOWEL (278)

93604-08071-00

1

$6.17

In stock

5

. GUIDE, PLATE STOPPER

30X-18161-00-00

1
Out of stock

6

. PLATE, STOPPER

30X-18141-00-00

1
Out of stock

7

. SEGMENT

30X-18185-00-00

1
Out of stock

8

PIN, DOWEL (363)

93604-18100-00

1

$2.22

In stock

9

PIN, DOWEL (3Y1)

93604-29151-00

1

$5.77

In stock

10

. PLATE, SIDE 1

30X-18561-02-00

1
Out of stock

11

SCREW, COUNTERSUNK (5H0)

90151-06013-00

1

$6.91

In stock

12

LEVER, SHIFT 2

3Y1-18122-00-00

—

$22.29

In stock

13

SPRING, TORSION (3Y1)

90508-12430-00

1

$1.88

In stock

14

LEVER, CHANGE 3

2K7-18151-00-00

—

$11.54

In stock

15

CIRCLIP

99080-07600-00

1

$2.89

In stock

16

BAR, SHIFT FORK GUIDE 1

4DN-18531-00-00

—

$12.69

In stock

17

CIRCLIP(10W)

99009-10400-00

—

$3.91

In stock

18

BAR, SHIFT FORK GUIDE 2

4DN-18535-00-00

—

$12.32

In stock

19

FORK, SHIFT 1

30X-18511-00-00

1
Out of stock

20

FORK, SHIFT 2

30X-18512-00-00

1
Out of stock

21

FORK, SHIFT 3

30X-18513-00-00

1
Out of stock
