1988 Yamaha XT350 (XT350U) Handlebar - Cable Diagram

← All diagrams

Find the part on the Handlebar - Cable diagram for your 1988 Yamaha XT350 (XT350U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

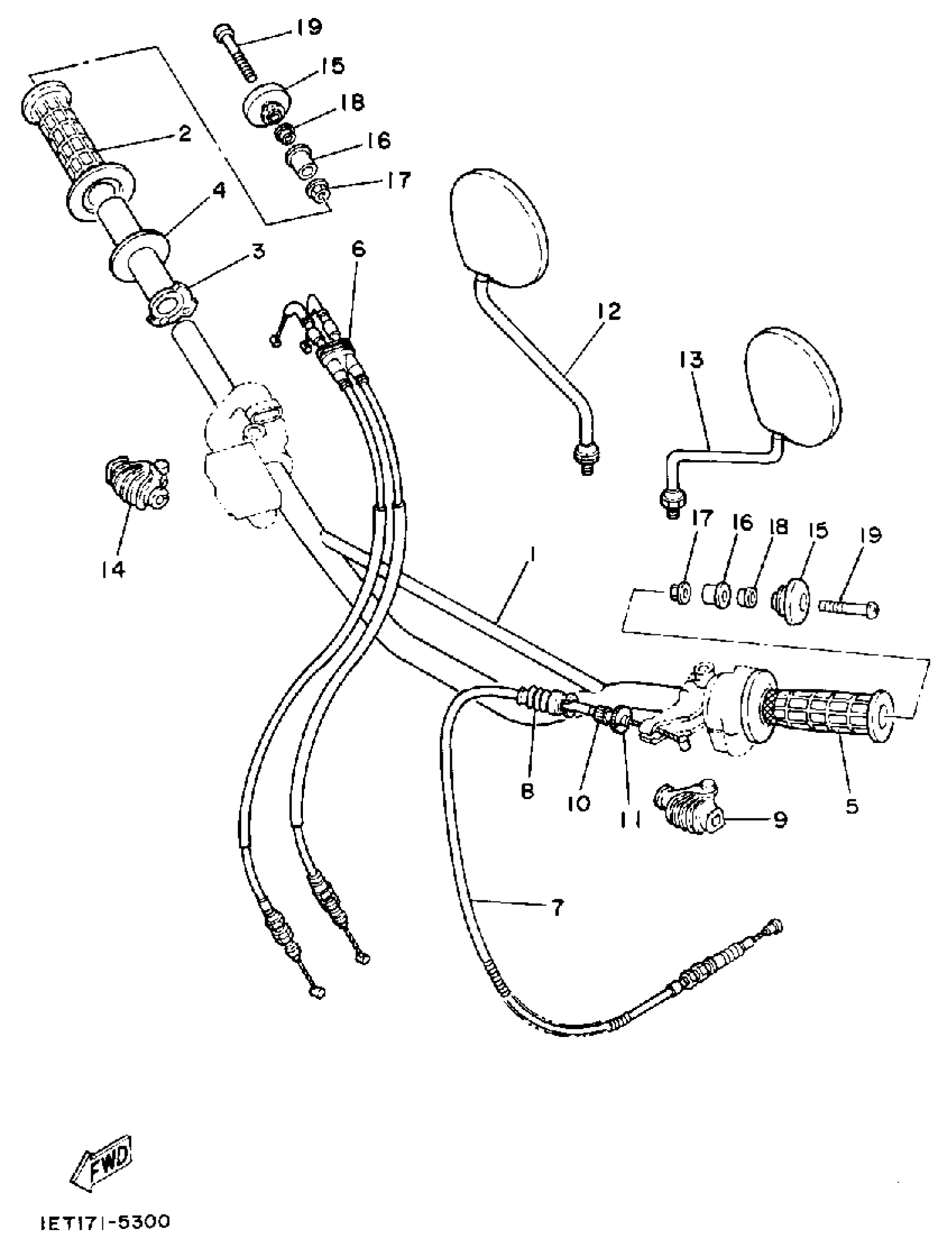

1988 Yamaha XT350 (XT350U) Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

1EU-26111-00-00

1
Out of stock

2

GRIP (RIGHT)

55V-26242-00-00

1
Out of stock

3

TUBE, THROTTLE GUIDE

1RF-26243-00-00

1
Out of stock

4

RING, LEAF

3Y1-26249-00-00

1

$8.54

In stock

5

GRIP (LH)

55V-26241-01-00

—
Out of stock

6

THROTTLE CABLE ASSY

30X-26302-01-00

1
Out of stock

7

CABLE, CLUTCH

30X-26335-01-00

1
Out of stock

8

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

9

COVER, LEVER

1E6-26372-00-00

1

$19.91

In stock

10

BOLT

90123-08002-00

1

$8.93

In stock

11

NUT

90179-08030-00

1

$3.78

In stock

12

1

$45.60

In stock

13

MIRROR ASSY., 2

5Y1-26290-11-00

1
Out of stock

14

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

1

$17.86

In stock

15

END, GRIP

55V-26246-00-00

1
Out of stock

16

DAMPER, LOCATING 1 (55V-2622F-00-00)

21A-2622F-00-00

1
Out of stock

17

NUT(1ET)

90179-06498-00

—
Out of stock

18

COLLAR (8G8)

90387-06681-00

—

$6.62

In stock

19

SCREW, PAN

98507-06040-00

—

$2.25

In stock
