1985 Yamaha XT350 CA (XT350NC) Generator Diagram

← All diagrams

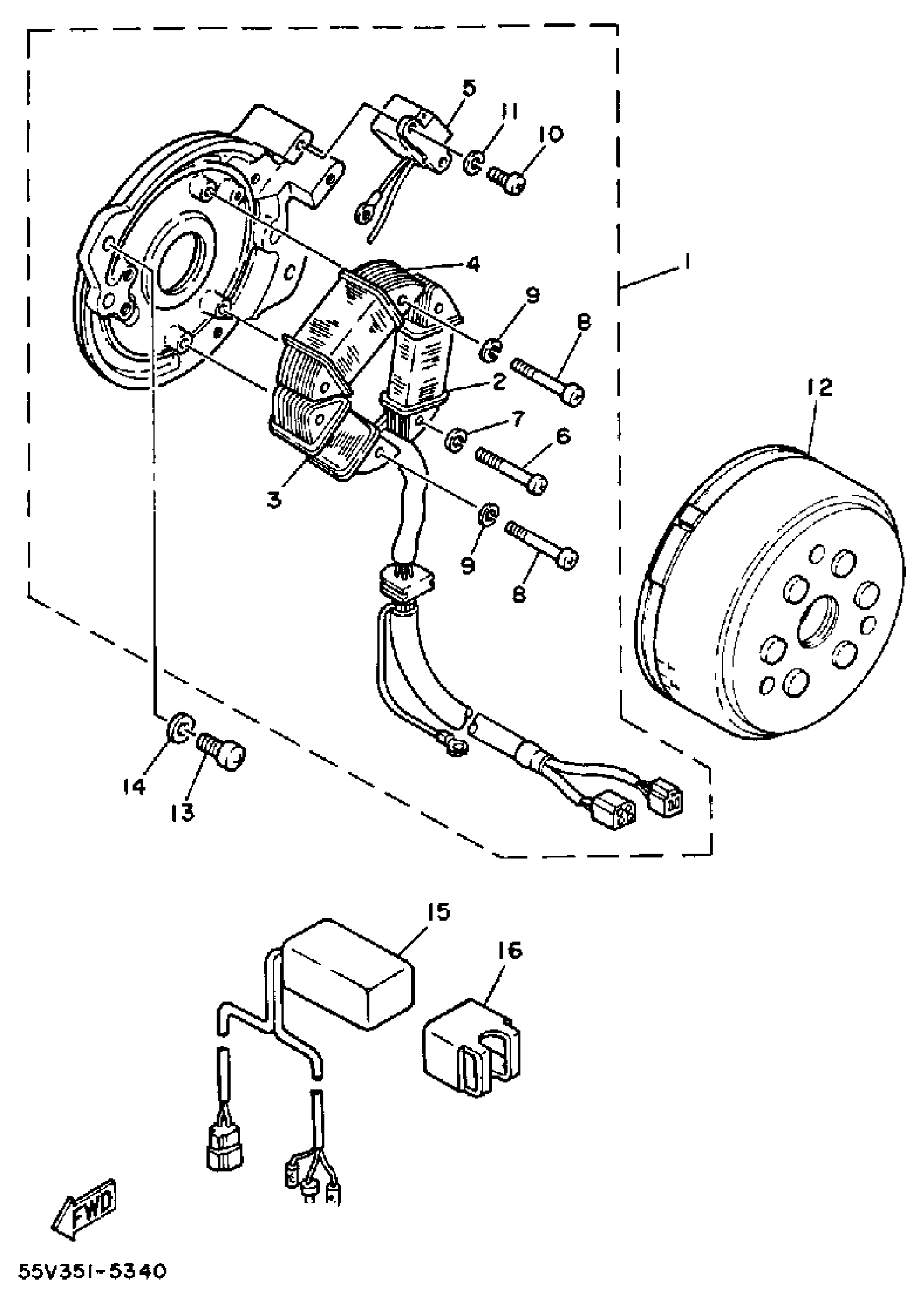

Find the part on the Generator diagram for your 1985 Yamaha XT350 CA (XT350NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha XT350 CA (XT350NC) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSEMBLY

(56R-85510-20-00)

1
Out of stock

2

. COIL, SOURCE

30X-85512-00-00

1
Out of stock

3

. COIL, LIGHTING 1

56R-85513-00-00

1
Out of stock

4

. COIL, LIGHTING 2

56R-85514-00-00

1
Out of stock

5

. COIL, PULSER

30X-85580-00-00

1
Out of stock

6

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

SCREW, PAN

98507-05035-00

1

$6.69

In stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

ROTOR ASSEMBLY

55V-85550-20-00

1
Out of stock

13

SCREW, PAN

98507-06014-00

1

$6.18

In stock

14

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

15

CDI UNIT ASSEMBLY

30X-85540-20-00

1
Out of stock

16

BAND

3M5-85546-00-00

1
Out of stock
