1985 Yamaha XT350 CA (XT350NC) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1985 Yamaha XT350 CA (XT350NC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

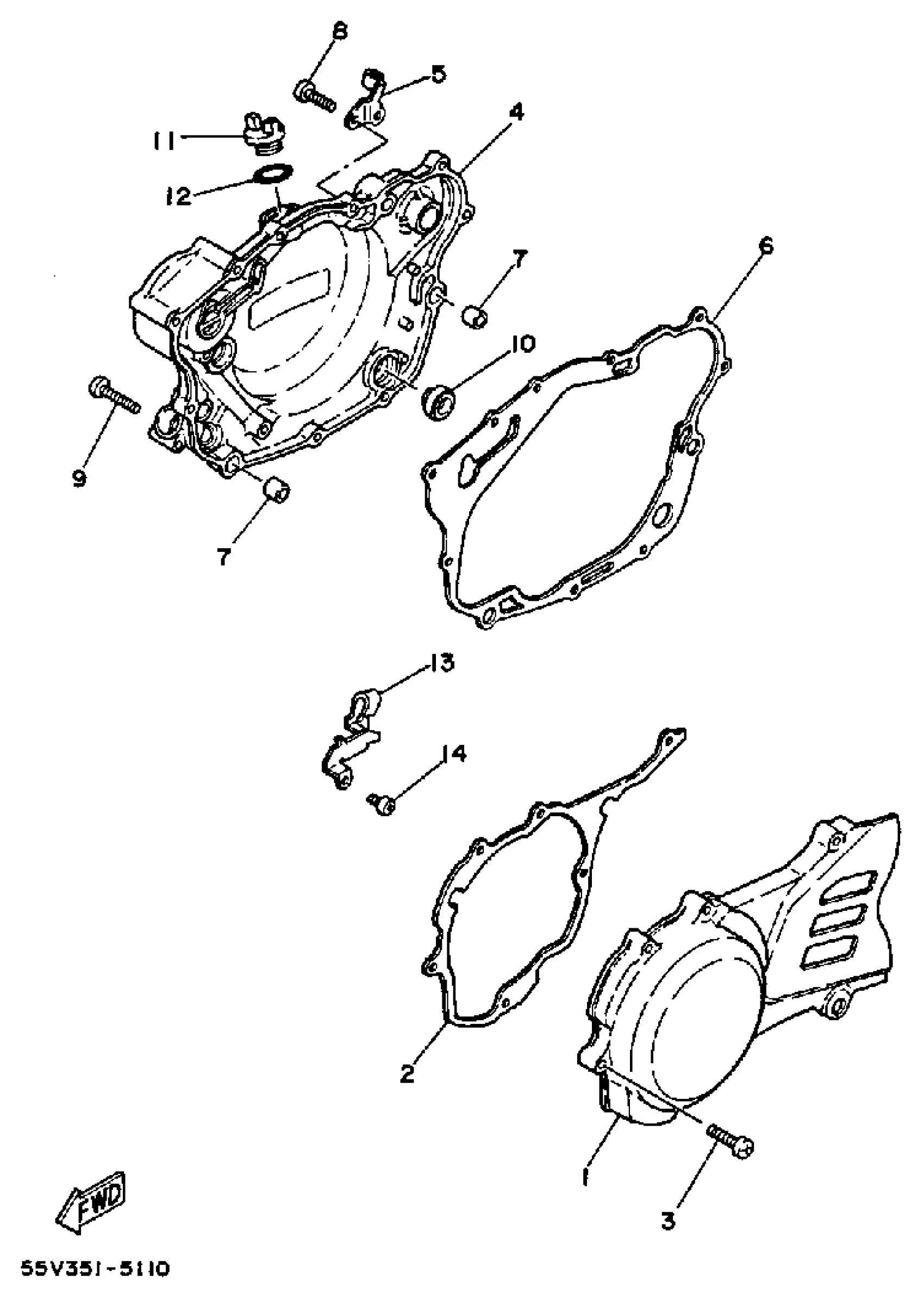

1985 Yamaha XT350 CA (XT350NC) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE LH

30X-15411-01-00

1
Out of stock

2

GASKET, CRANKCASE COVER 1

4EL-15451-00-00

1
Out of stock

3

SCREW, PAN

98517-06030-00

1
Out of stock

4

COVER, CRANKCASE 2

55V-15421-01-00

1
Out of stock

5

HOLDER

30X-15378-00-00

1
Out of stock

6

GASKET, CRANKCASE COVER 2

4EL-15461-04-00

1
Out of stock

7

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

8

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

9

SCREW, PAN

98507-06035-00

1

$6.18

In stock

10

GAUGE, LEVEL

3Y1-15361-00-00

1

$25.51

In stock

11

PLUG, OIL

3Y1-15363-10-00

1

$17.02

In stock

12

O-RING (646)

93210-19123-00

—

$6.91

In stock

13

CLAMP

90462-08062-00

1
Out of stock

14

SCREW, PAN

98517-06012-00

1

$3.14

In stock
