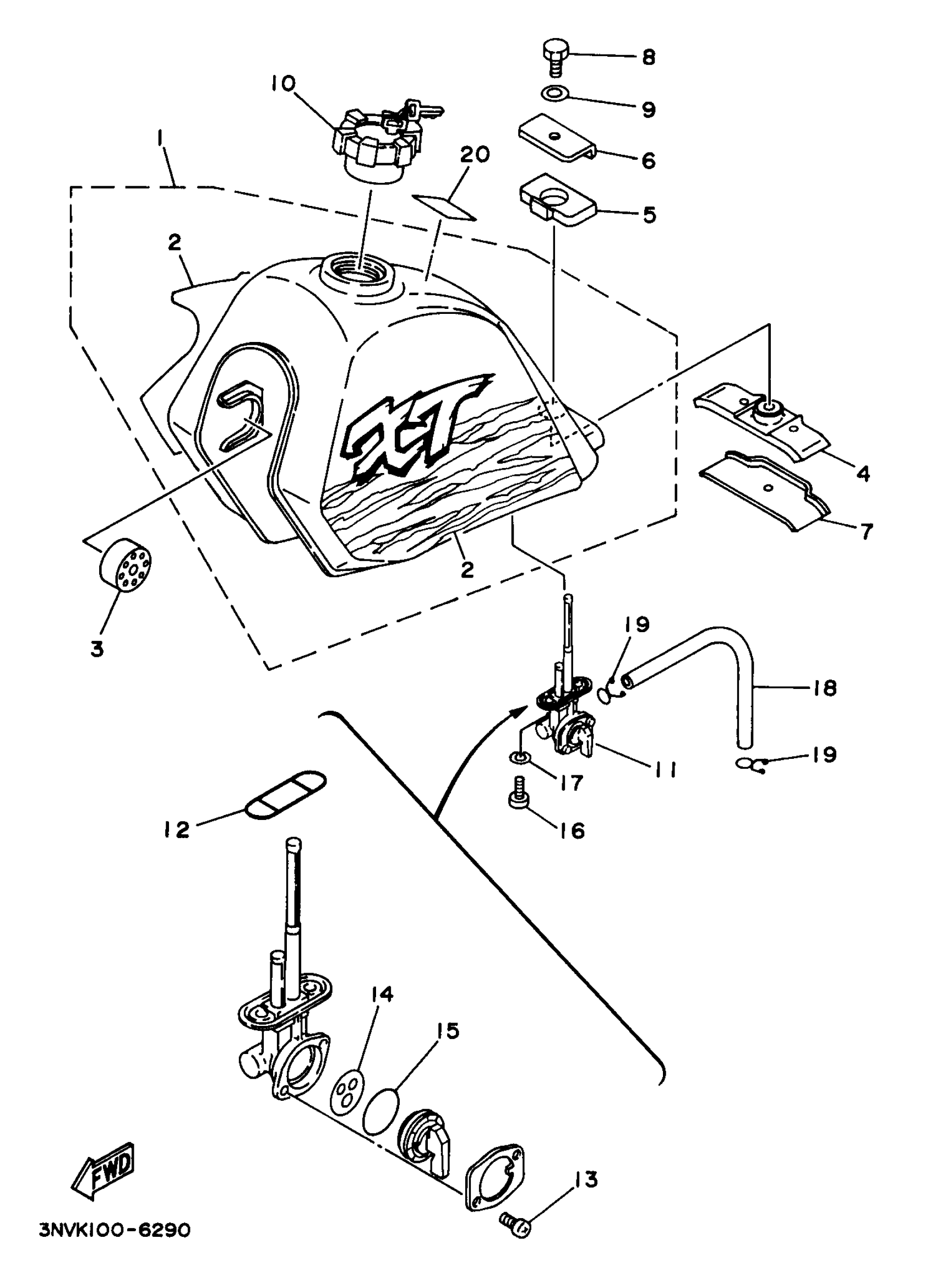

Yamaha XT350JC (XT350 CA) 1997 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

30X-24110-G0-X1

Unavailable

2

. GRAPHIC

3NV-24240-40-00

Unavailable

3

DAMPER, LOCATING 1

4L0-24181-00-00

$8.14

4

DAMPER, LOCATING 2

30X-24182-01-00

$18.12

5

DAMPER, LOCATING 3

30X-24183-01-00

$5.86

6

WASHER, SPECIAL

30X-24186-01-00

$6.29

7

WASHER, SPECIAL

30X-24187-00-00

$21.27

8

BOLT, HEXAGON

97017-06012-00

$2.44

9

WASHER(6TA)

92907-06600-00

$0.73

10

CAP ASSY

48Y-24602-00-00

Unavailable

11

FUEL COCK ASSY 1

23F-24500-20-00

$34.50

12

O-RING

4X8-24512-00-00

$6.25

13

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

14

VALVE PACKING

3AC-24523-00-00

$10.82

15

SEAL, COCK

3AJ-24534-01-00

$8.69

16

SCREW 256241430000

90149-06011-00

Unavailable

17

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

18

HOSE (L200)

90445-10752-00

Unavailable

19

CLIP

90467-090A2-00

Unavailable

20

LABEL, CAUTION

3MX-2118K-00-00

Unavailable
