Partiron

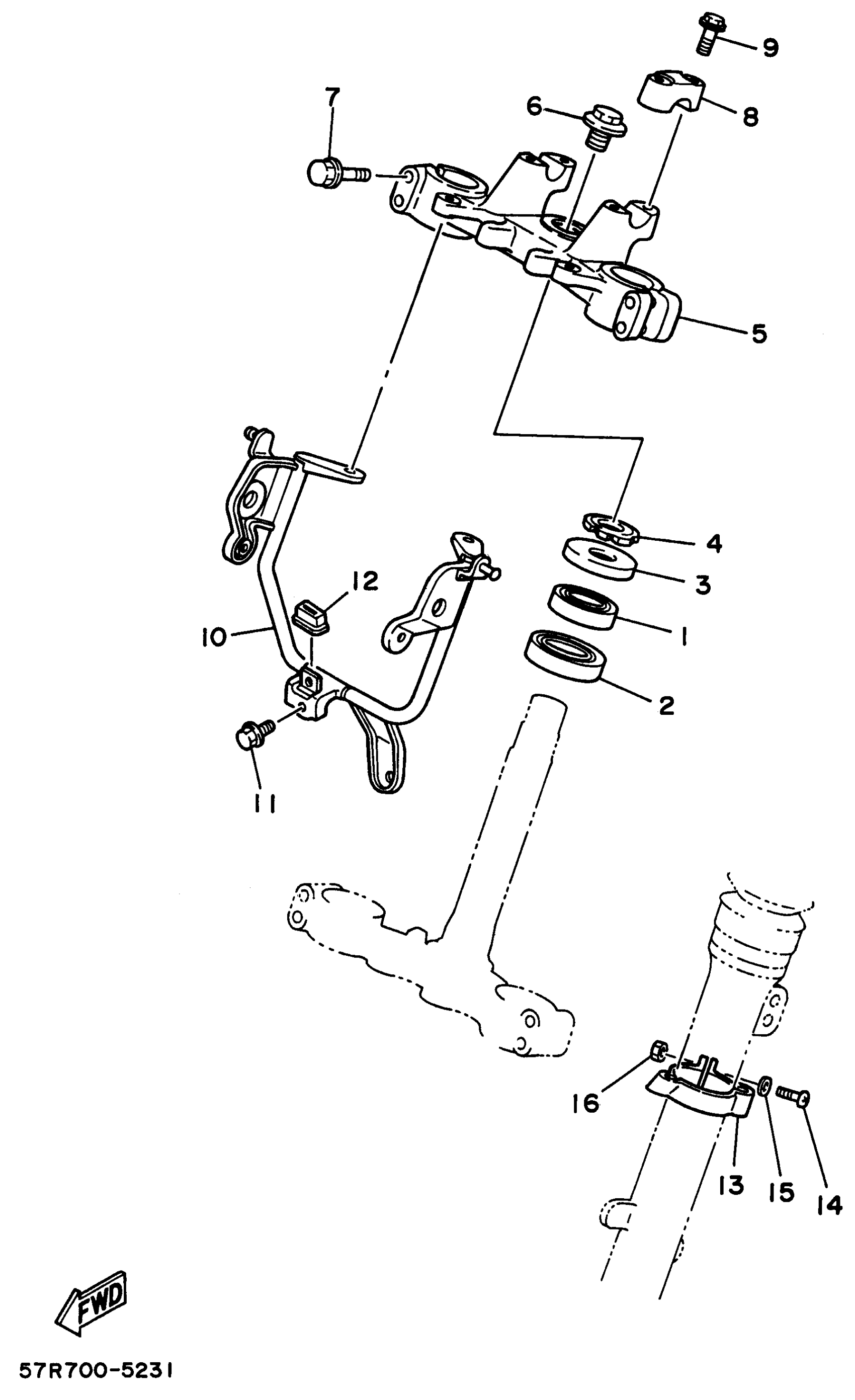

Yamaha XT350HC (XT350 CA) 1996 STEERING Diagram

#

Description
Price

1

BEARING(4ES)

93332-00079-00

$59.36

2

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

$57.70

3

COVER, BALL RACE 2

5BP-F3416-10-00

$3.16

4

NUT

90179-25004-00

$20.78

5

CROWN, HANDLE

30X-23435-00-35

Unavailable

6

BOLT (2A2)

90105-14102-00

$4.93

7

BOLT, FLANGE(4MY)

95027-08040-00

$6.17

8

HOLDER, HANDLE UPPER

1E6-23441-10-35

$20.51

9

BOLT, FLANGE(4FM)

95814-08035-00

$6.68

10

STAY, HEADLIGHT

30X-23174-00-00

Unavailable

11

BOLT, FLANGE

95817-06012-00

$1.49

12

DAMPER

30X-23445-00-00

$8.77

13

HOLDER, CABLE

34X-23317-00-00

$6.40

14

SCREW, PAN HEAD(4MY)

98507-05018-00

$2.48

15

WASHER(1RW)

92907-05600-00

$0.78

16

NUT, HEXAGON

95317-05600-00

Unavailable
