1995 Yamaha XT350 CA (XT350GC) Oil Pump Diagram

← All diagrams

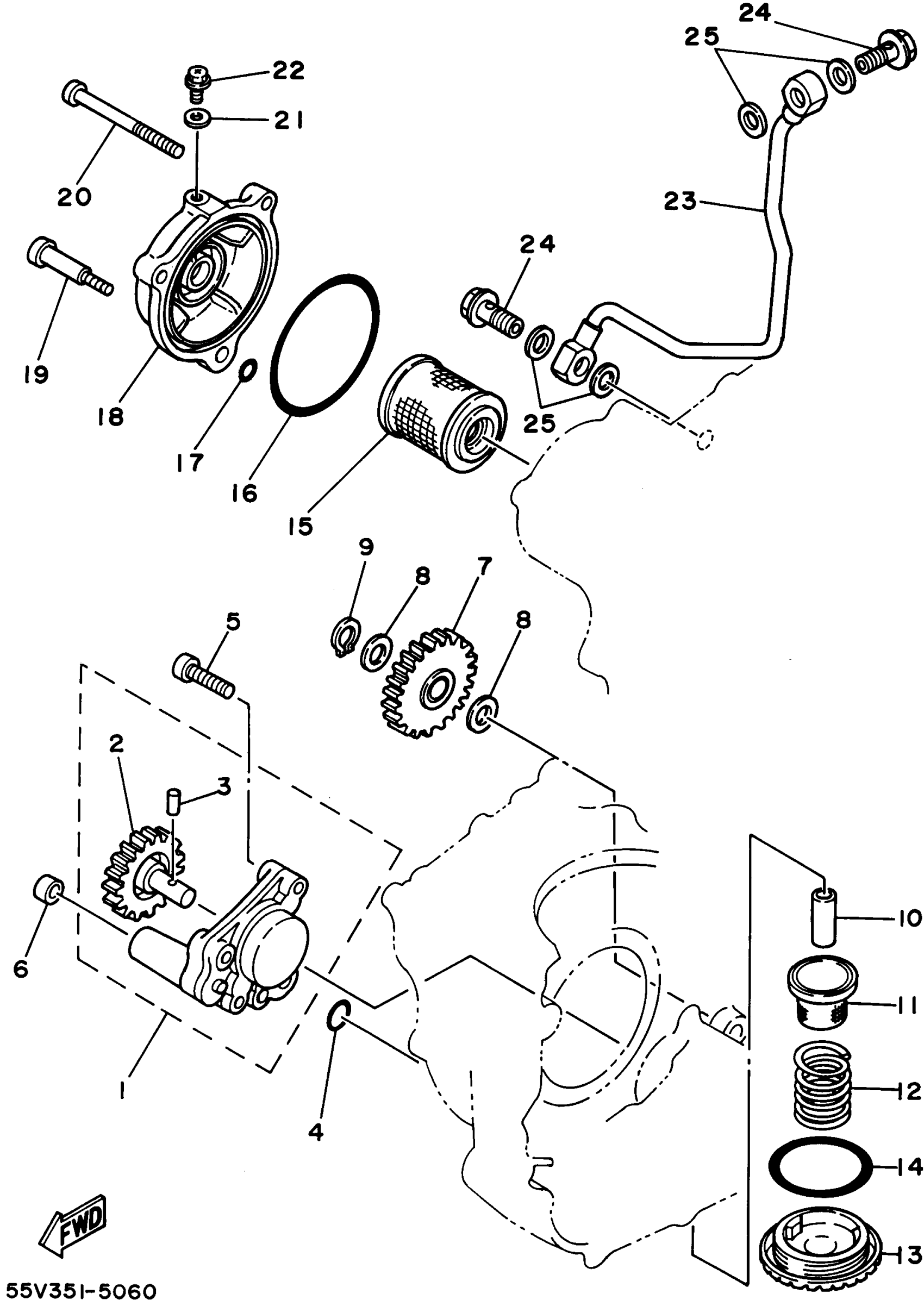

Find the part on the Oil Pump diagram for your 1995 Yamaha XT350 CA (XT350GC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha XT350 CA (XT350GC) Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

30X-13300-10-00

1
Out of stock

2

GEAR, PUMP DRIVEN 2

3Y6-13326-10-00

1
Out of stock

3

PIN,DOWEL (137)

93603-12030-00

1
Out of stock

4

O-RING (611)

93210-10096-00

1
Out of stock

5

SCREW, PAN HEAD (76T)

98517-06025-00

1
Out of stock

6

GASKET (3Y1)

90430-06156-00

1
Out of stock

7

GEAR, OIL PUMP IDLE

30X-13341-00-00

1
Out of stock

8

WASHER, PLAIN(735)

90201-10119-00

—
Out of stock

9

CIRCLIP(10W)

99009-10400-00

1
Out of stock

10

PIPE, OIL 1

2XK-13416-00-00

1
Out of stock

11

STRAINER, OIL

51Y-13411-00-00

1
Out of stock

12

SPRING, COMPRESSION (3Y1)

90501-18576-00

1
Out of stock

13

PLUG, DRAIN

4HC-15351-00-00

1
Out of stock

14

O-RING

93210-347A1-00

1
Out of stock

15

OIL CLEANER ASSY

5H0-13440-09-00

1
Out of stock

16

O-RING (583 OIL CLEANER)

93210-64297-00

—
Out of stock

17

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

—
Out of stock

18

COVER, OIL ELEMENT

3DC-13447-00-00

1
Out of stock

19

BOLT (583 OIL DRAIN)

90109-06419-00

—
Out of stock

20

BOLT, SOCKET

91317-06065-00

—
Out of stock

21

GASKET

90430-05126-00

1
Out of stock

22

SCREW (583)

90149-05110-00

—
Out of stock

23

PIPE, DELIVERY 1

55V-13161-01-00

1
Out of stock

24

BOLT, UNION(3GM)

90401-10159-00

—
Out of stock

25

GASKET (5R6)

90430-10171-00

—
Out of stock
