1995 Yamaha XT350 CA (XT350GC) Handle Switch - Lever Diagram

← All diagrams

Find the part on the Handle Switch - Lever diagram for your 1995 Yamaha XT350 CA (XT350GC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

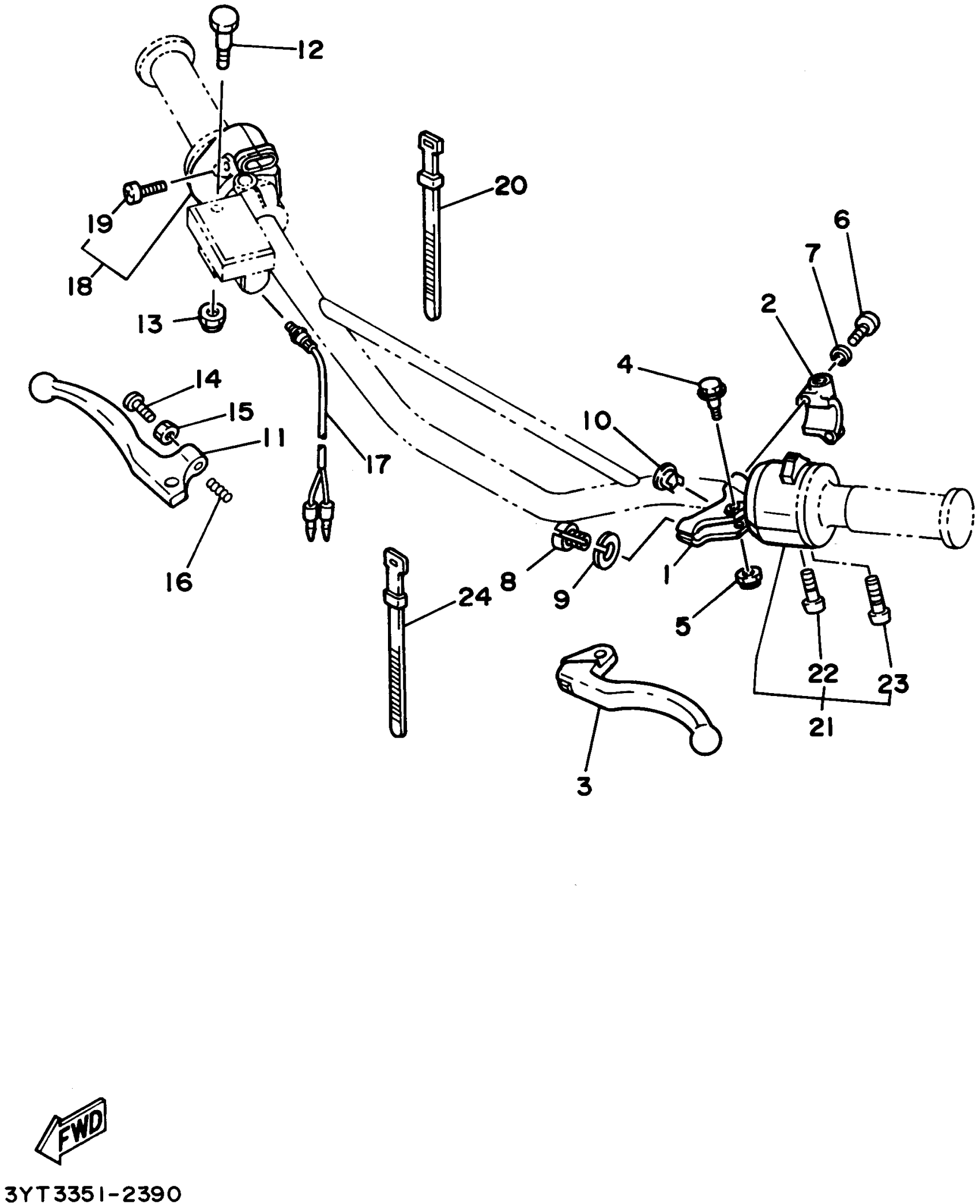

1995 Yamaha XT350 CA (XT350GC) Handle Switch - Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, LEVER 1

1LN-82911-00-00

1
Out of stock

2

HOLDER, LEVER LOWER 1

33G-82913-01-00

1
Out of stock

3

LEVER 1

3FY-83912-02-00

1
Out of stock

4

BOLT (2YK1)

90109-06799-00

1
Out of stock

5

NUT, SELF-LOCKING

95617-06100-00

1
Out of stock

6

SCREW, PAN HEAD

98517-05020-00

1
Out of stock

7

WASHER(3SX)

92907-05100-00

1
Out of stock

8

BOLT

90123-08002-00

1
Out of stock

9

NUT

90179-08030-00

1
Out of stock

10

CAP 1

503-83956-00-00

1
Out of stock

11

LEVER R

3FY-83922-01-00

1
Out of stock

12

BOLT (4L0)

90109-06577-00

1
Out of stock

13

NUT, SELF-LOCKING

95617-06100-00

1
Out of stock

14

SCREW (2L0)

90149-06131-00

1
Out of stock

15

NUT HEXAGON 306839270000

90170-06010-00

1
Out of stock

16

SPRING COMPRESSION306839240000

90501-10312-00

—
Out of stock

17

FRONT STOP SWITCH ASSY

3YF-83980-00-00

—
Out of stock

18

SWITCH, HANDLE 1

43F-83976-00-00

1
Out of stock

19

SCREW, PAN HEAD

98517-05020-00

1
Out of stock

20

BAND, SWITCH CORD

437-83936-01-00

—
Out of stock

21

SWITCH, HANDLE 3

21T-83973-01-00

1
Out of stock

22

SCREW, PAN HEAD(41N)

90157-05057-00

—
Out of stock

23

SCREW, PAN HEAD

98517-05030-00

—
Out of stock

24

BAND, SWITCH CORD

437-83936-01-00

—
Out of stock
