1992 Yamaha XT350 CA (XT350DC) Turnsignal Diagram

← All diagrams

Find the part on the Turnsignal diagram for your 1992 Yamaha XT350 CA (XT350DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

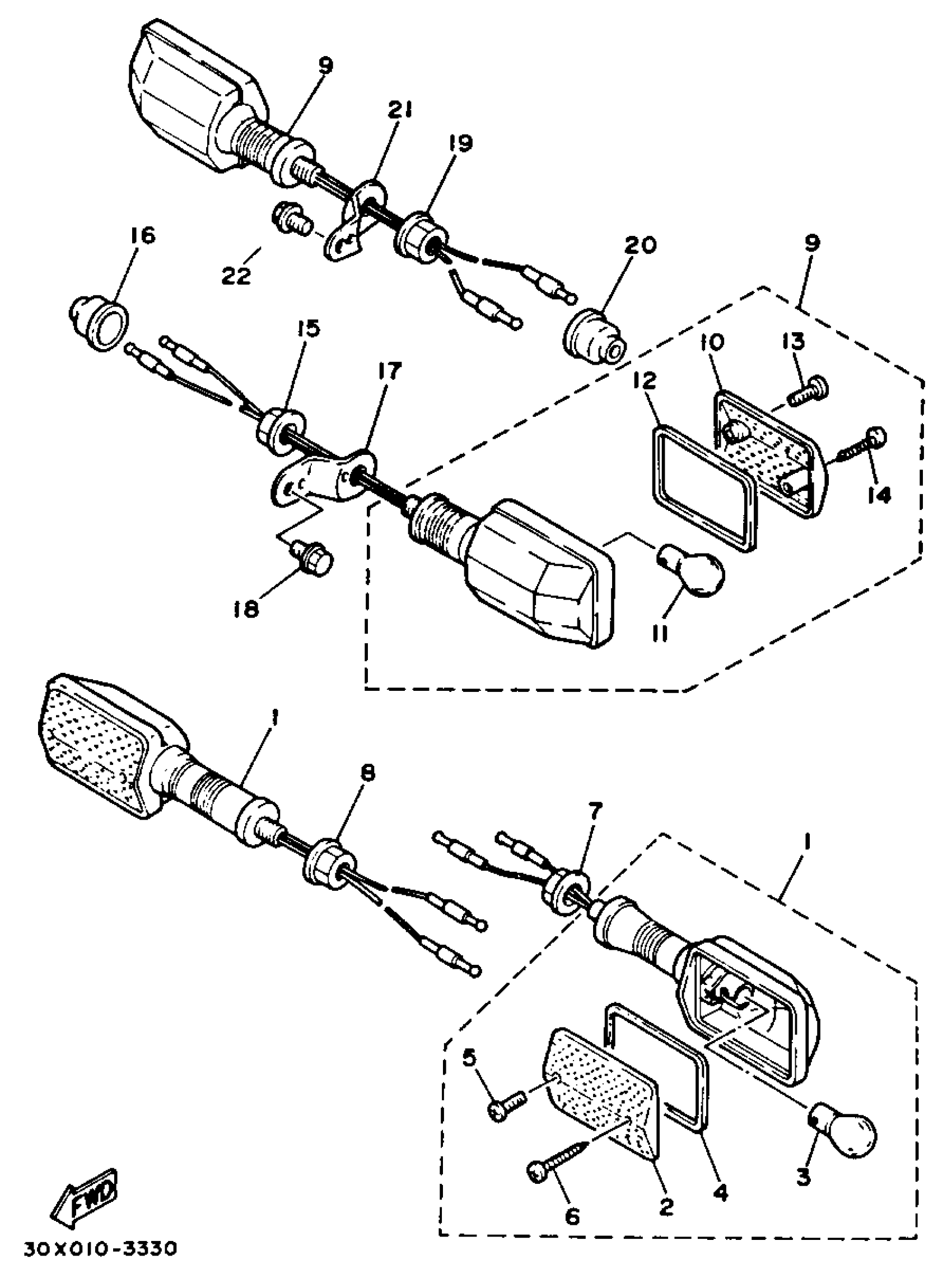

1992 Yamaha XT350 CA (XT350DC) Turnsignal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER LIGHT ASSEMBLY 1

5Y1-83310-70-00

1
Out of stock

2

LENS FLASHER

5Y1-83312-00-00

1
Out of stock

3

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

4

GASKET, FLASHER LENS

5Y1-83313-00-00

—
Out of stock

5

SCREW, PAN HEAD (E56)

98580-04010-00

1
Out of stock

6

SCREW, TAPPING(3AH)

97707-40630-00

1
Out of stock

7

NUT, HEXAGON SMALL

95317-12700-00

1
Out of stock

8

NUT, HEXAGON SMALL

95317-12700-00

1
Out of stock

9

REAR FLASHER LIGHT ASSY 1

37A-83330-21-00

1
Out of stock

10

LENS FLASHER

5Y1-83312-00-00

1
Out of stock

11

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

12

GASKET, FLASHER LENS

5Y1-83313-00-00

—
Out of stock

13

SCREW, PAN HEAD (E56)

98580-04010-00

1
Out of stock

14

SCREW, TAPPING(3AH)

97707-40630-00

1
Out of stock

15

NUT, HEXAGON SMALL

95317-12700-00

1
Out of stock

16

CAP

10V-83365-01-00

—
Out of stock

17

STAY, FLASHER 1

10V-83368-00-00

1
Out of stock

18

BOLT, SMALL FLANGE

95027-08012-00

—
Out of stock

19

NUT, HEXAGON SMALL

95317-12700-00

1
Out of stock

20

CAP

10V-83365-01-00

—
Out of stock

21

STAY, FLASHER 2

10V-83369-00-00

1
Out of stock

22

BOLT, SMALL FLANGE

95027-08012-00

—
Out of stock
