1992 Yamaha XT350 CA (XT350DC) Stand - Footrest Diagram

← All diagrams

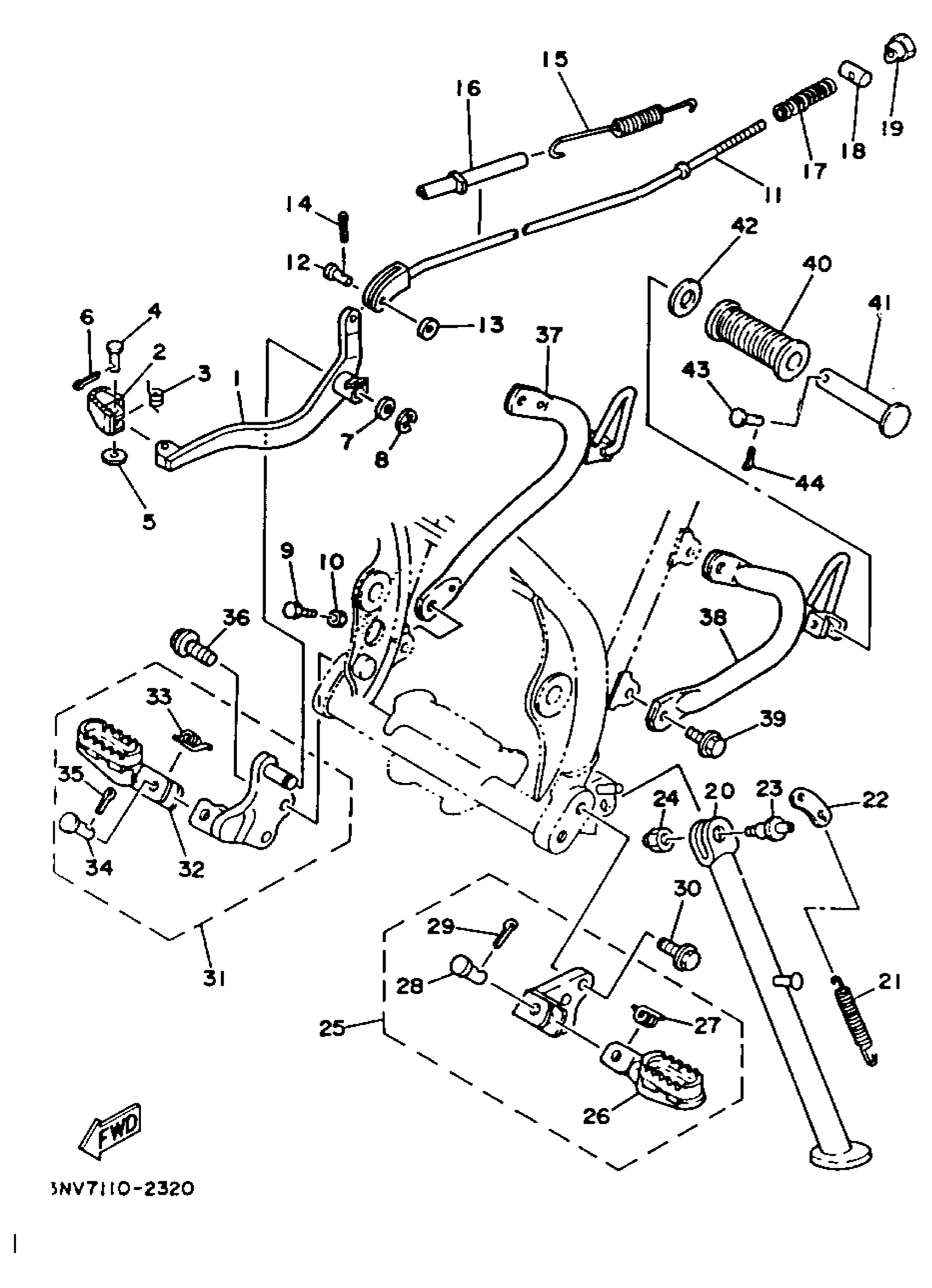

Find the part on the Stand - Footrest diagram for your 1992 Yamaha XT350 CA (XT350DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha XT350 CA (XT350DC) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

55V-27211-00-00

1
Out of stock

2

PEDAL, BRAKE

55V-27242-00-00

1

$19.86

In stock

3

SPRING, TORSION (1W2)

90508-14352-00

1

$6.89

In stock

4

PIN, COTTER (1W2)

91701-06022-00

1

$1.83

In stock

5

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

6

PIN, COTTER

91490-20025-00

1

$1.31

In stock

7

WASHER, PLATE (525)

90201-12541-00

1
Out of stock

8

CIRCLIP (4V2)

93430-09038-00

1
Out of stock

9

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

10

NUT(650)

95380-06700-00

1

$6.17

In stock

11

ROD, BRAKE

30X-27231-00-00

1
Out of stock

12

PIN, CLEVIS (24X)

90240-06103-00

1

$6.45

In stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

14

PIN, COTTER

91490-20025-00

1

$1.31

In stock

15

SPRING, TENSION

90506-18289-00

1

$12.03

In stock

16

COVER, SPRING

1M1-27244-00-00

—

$5.93

In stock

17

SPRING, (180-27236-00)

90501-10245-00

—

$6.17

In stock

18

PIN 1562723700

90249-12008-00

—

$4.70

In stock

19

NUT (25K)

90179-06411-00

—

$5.10

In stock

20

STAND SIDE

55V-27311-02-00

—
Out of stock

21

SPRING, MAIN STAND

4KN-27116-00-00

—

$10.32

In stock

22

LINK, SIDE STAND

42U-27315-01-00

—
Out of stock

23

BOLT

90109-10635-00

1
Out of stock

24

NUT, U

90185-10037-00

—

$6.68

In stock

25

FRONT FOOTREST ASSEMBLY (LEFT)

30X-27410-00-90

1
Out of stock

26

FOOTREST 1

22W-27411-01-90

—
Out of stock

27

—

$3.26

In stock

28

PIN, CLEVIS (2A6)

91701-08038-00

—

$3.91

In stock

29

PIN, COTTER

91490-25020-00

—

$2.94

In stock

30

BOLT, FLANGE(8AB)

95817-08020-00

—

$7.00

In stock

31

FRONT FOOTREST ASSEMBLY (RIGHT)

55V-27420-00-90

1
Out of stock

32

FOOTREST 2

22W-27421-01-90

—

$29.63

In stock

33

—

$3.26

In stock

34

PIN, CLEVIS (2A6)

91701-08038-00

—

$3.91

In stock

35

PIN, COTTER

91490-25020-00

—

$2.94

In stock

36

BOLT, FLANGE(8AB)

95817-08020-00

—

$7.00

In stock

37

BRACKET 2

55V-27442-10-00

1
Out of stock

38

BRACKET 1

26F-27432-10-00

1
Out of stock

39

BOLT (34L)

90109-08789-00

—

$6.38

In stock

40

COVER, REAR FOOTREST

120-27433-00-00

—

$7.51

In stock

41

FOOTREST, REAR 1

2GV-27431-00-00

—

$27.39

In stock

42

WASHER, PLATE (888)

90201-20279-00

—
Out of stock

43

PIN, CLEVIS (1Y8)

91701-06032-00

—

$6.85

In stock

44

PIN, COTTER

91490-16020-00

1

$6.23

In stock
