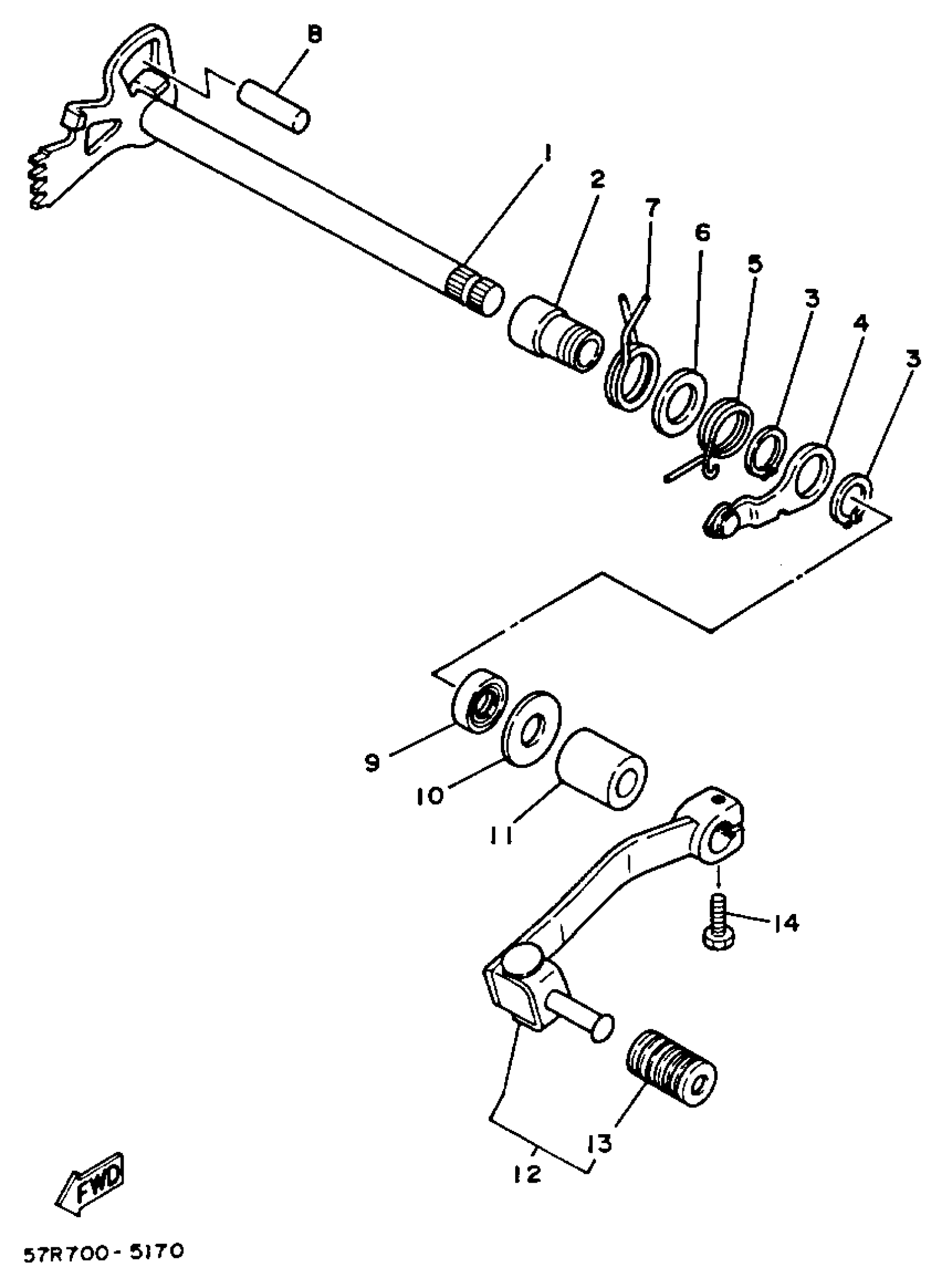

Yamaha XT350DC (XT350 CA) 1992 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSEMBLY

30X-18101-01-00

Unavailable

2

COLLAR (3Y1)

90387-12787-00

$9.41

3

CIRCLIP(1EY)

99009-17400-00

$3.72

4

STOPPER LEVER ASSY

3Y1-18140-00-00

$14.92

5

SPRING, TORSION

90508-26434-00

$2.09

6

WASHER, PLATE (30X)

90201-177G4-00

$6.47

7

SPRING, TORSION (2K7)

90508-32374-00

$5.41

8

PIN, DOWEL

93608-30152-00

Unavailable

9

SEAL, OIL (30X)

93102-12321-00

$9.98

10

WASHER

90201-12588-00

$6.05

11

SPACER (3Y1)

90560-12191-00

$5.61

12

SHIFT PEDAL ASSY

30X-18110-01-00

Unavailable

13

COVER, CHANGE PEDAL

1W6-18113-00-00

$3.85

14

BOLT, HEXAGON

97017-06020-00

$2.42
