Partiron

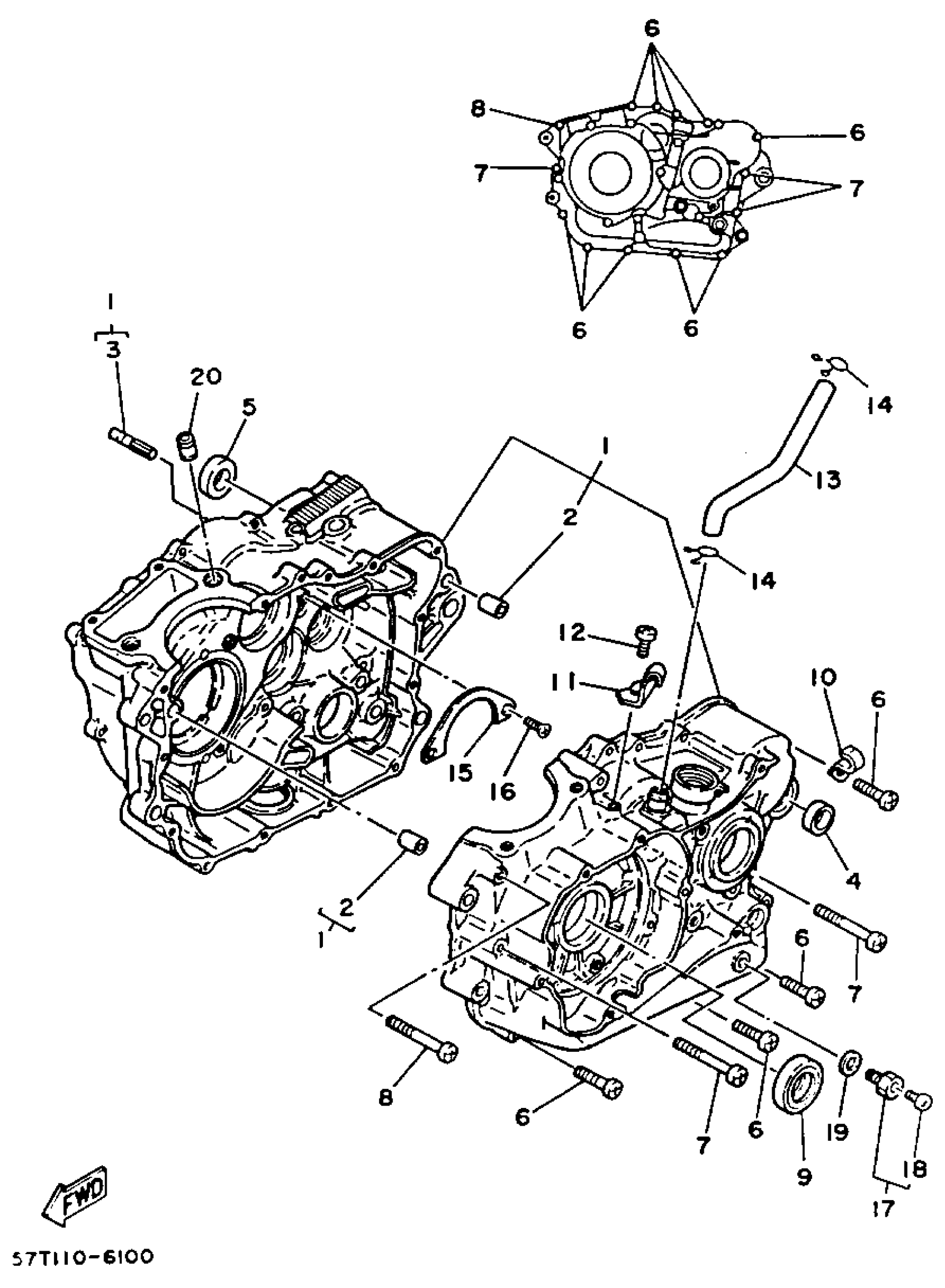

Yamaha XT350DC (XT350 CA) 1992 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

55V-15100-03-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$3.93

3

STOPPER

55V-15668-00-00

$4.38

4

COLLAR

90387-17009-00

$13.78

5

COLLAR (30X)

90387-172J0-00

Unavailable

6

SCREW, PAN

98517-06030-00

$2.88

7

SCREW, PAN

98507-06060-00

$5.34

8

SCREW, PAN HEAD

98507-06070-00

$6.80

9

OIL SEAL (30X)

93102-25305-00

$11.48

10

CLAMP(51Y)

90465-08277-00

Unavailable

11

HOLDER, CLUTCH CABLE

51Y-15441-00-00

Unavailable

12

SCREW, PAN HEAD(3TJ)

98507-06016-00

$2.32

13

PIPE, BREATHER 1

30X-11166-00-00

Unavailable

13

PIPE, BREATHER 1

56R-11166-00-00

Unavailable

14

CLIP (371)

90467-14015-00

$7.18

15

PLATE, BEARING COVER

30X-15383-00-00

Unavailable

16

SCREW, FLAT

98704-06016-00

Unavailable

17

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

18

SCREW, BIND(2TV)

98980-06008-00

Unavailable

19

GASKET

214-11198-01-00

Unavailable

20

PIN, DOWEL

99530-14016-00

Unavailable
