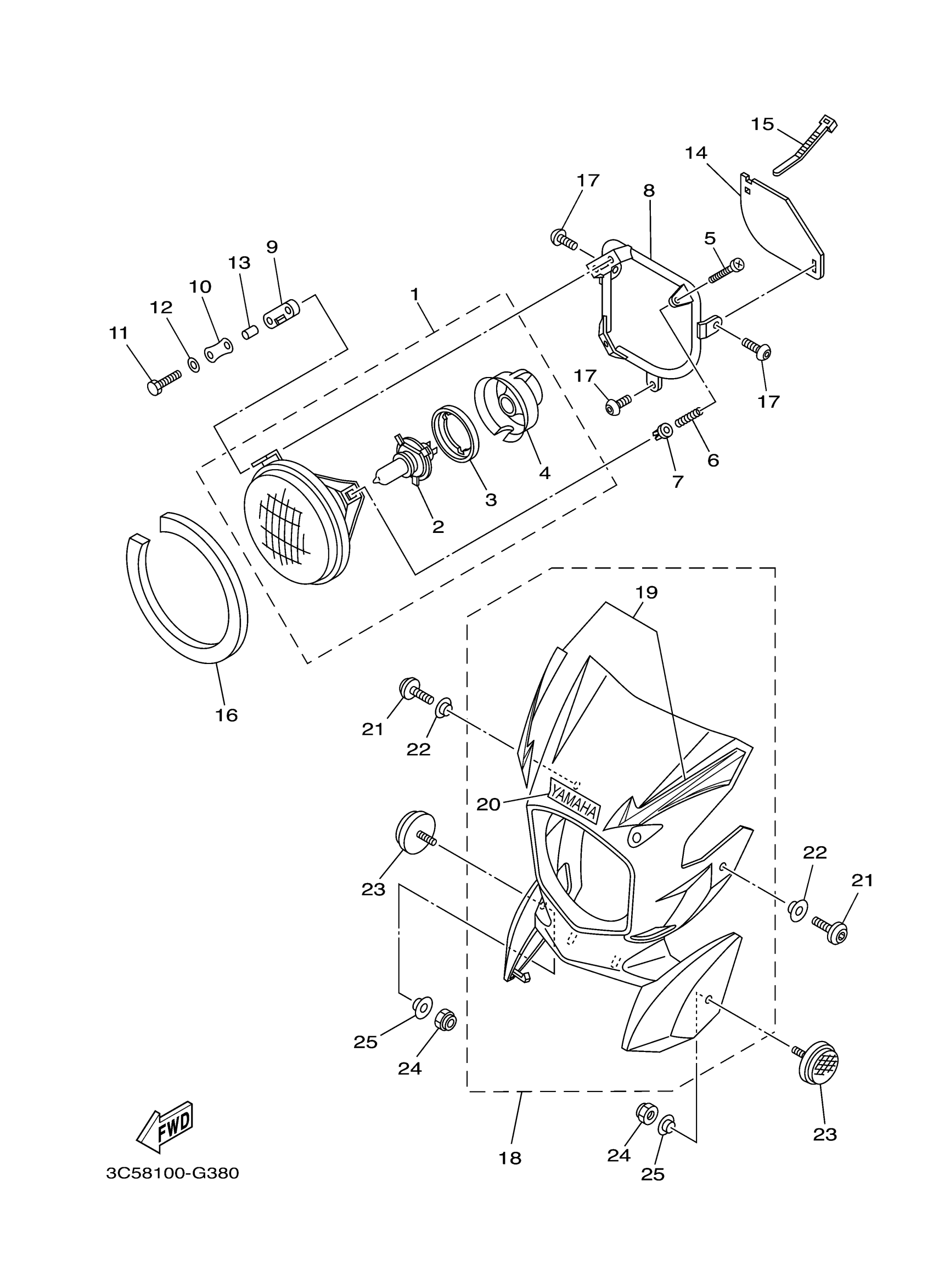

Yamaha XT250ZC (XT250 CA) 3C5J 2010 HEADLIGHT Diagram

#

Description
Price

1

LENS ASSY

3C5-84320-00-00

Unavailable

2

BULB, HEADLIGHT

8V0-84314-10-00

$56.31

3

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

4

COVER, SOCKET

2F9-84397-01-00

$27.39

5

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

6

SPRING, ADJUST

341-84332-60-00

$7.96

7

NUT, ADJUSTING

4B4-84334-00-00

$3.97

8

RIM, HEADLIGHT

3C5-84315-00-00

Unavailable

9

DAMPER, HEADLIGHT 1

3C5-84366-00-00

Unavailable

10

WASHER, SPECIAL

3C5-84127-00-00

$5.65

11

BOLT(3JK)

97027-05020-00

$2.31

12

WASHER, PLAIN (646)

92990-05600-00

Unavailable

13

COLLAR 288839130000

90387-05383-00

$6.94

14

COVER, HEADLIGHT

3C5-84144-00-00

$7.14

15

CLAMP

90465-10098-00

$1.68

16

DAMPER

3C5-84559-00-00

Unavailable

17

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

18

COVER COMP. ASSY

3C5-Y8450-E0-00

Unavailable

19

GRAPHIC SET, COWLING

3C5-28390-C0-00

Unavailable

20

EMBLEM, YAMAHA

5XC-2153E-10-00

Unavailable

21

BOLT

90111-06038-00

Unavailable

22

COLLAR(47X)

90387-061M0-00

Unavailable

23

REFLECTOR, FRONT 1

2EK-85111-00-00

Unavailable

24

NUT, U

95617-05100-00

Unavailable

25

COLLAR

90387-05038-00

Unavailable
