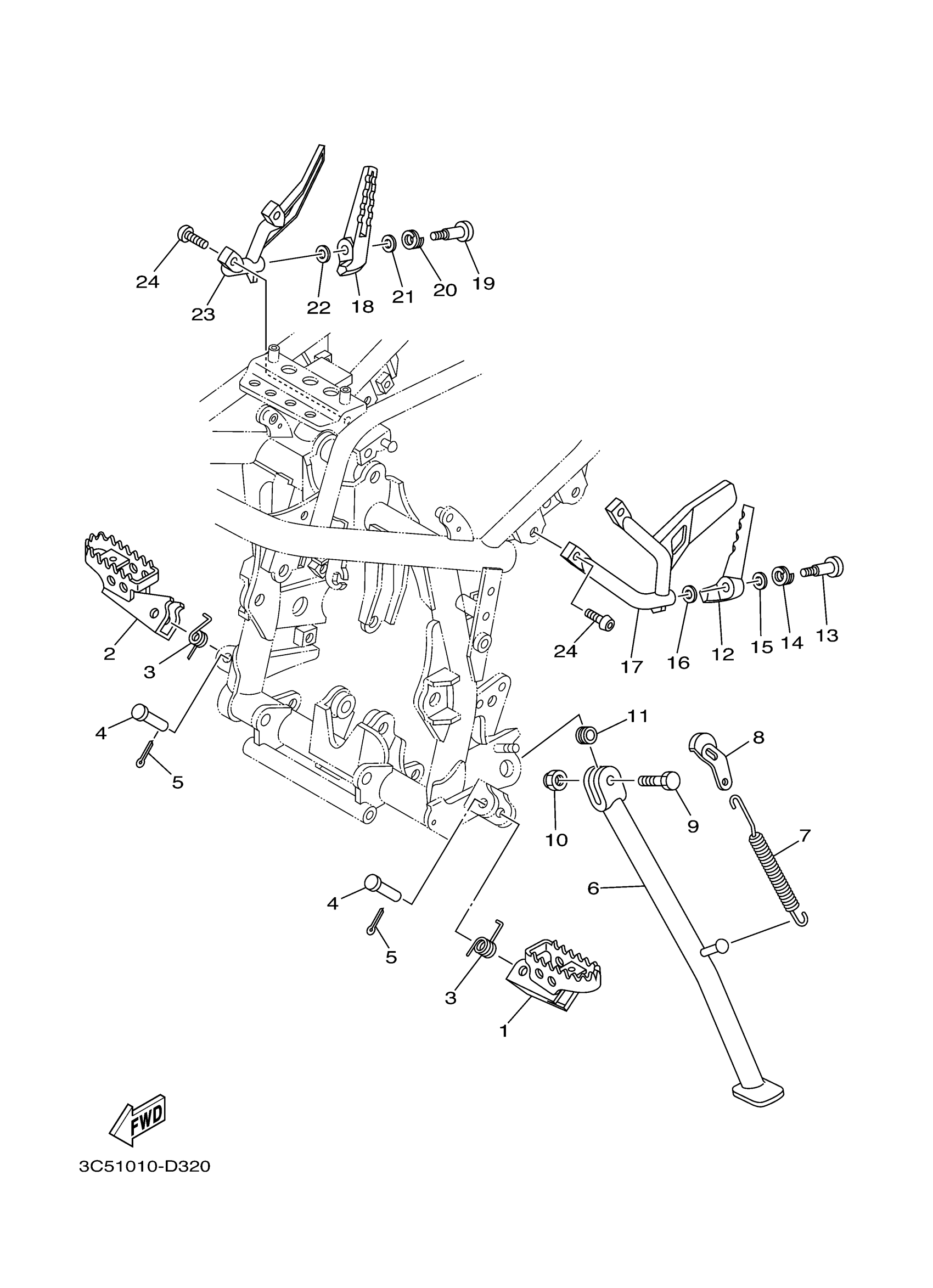

Yamaha XT250XC (XT250 CA) 3C59 2008 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

3LD-27411-10-00

Unavailable

2

FOOTREST 2

3LD-27421-10-00

$42.80

3

SPRING, TORSION (23X)

90508-20583-00

$6.22

4

PIN, CLEVIS (23X)

90240-10101-00

$9.99

5

PIN, COTTER

91490-25020-00

$2.73

6

STAND, SIDE

3C5-27311-11-00

Unavailable

7

SPRING, TENSION(3XP)

90506-35473-00

$13.64

8

LINK, SIDE STAND

5XT-27315-01-00

$6.38

9

BOLT

90101-10013-00

Unavailable

10

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$5.61

11

COLLAR

90387-10003-00

$19.89

12

FOOTREST, REAR 1

3XP-27431-02-00

$31.29

13

BOLT(3XP)

90109-085F5-00

$4.31

14

SPRING, COMPRESSION (5L1)

90504-18031-00

$7.15

15

WASHER(6TA)

92907-10600-00

$5.76

16

WASHER, PLATE(3XP)

90201-083P5-00

Unavailable

17

BRACKET 1

3C5-27432-00-00

Unavailable

18

FOOTREST, REAR 2

3XP-27441-02-00

Unavailable

19

BOLT(3XP)

90109-085F5-00

$4.31

20

SPRING, COMPRESSION (5L1)

90504-18031-00

$7.15

21

WASHER(6TA)

92907-10600-00

$5.76

22

WASHER, PLATE(3XP)

90201-083P5-00

Unavailable

23

BRACKET 2

3C5-27442-00-00

Unavailable

24

BOLT, BUTTON HEAD

92012-08020-00

Unavailable
