2008 Yamaha XT250 CA (XT250XC) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2008 Yamaha XT250 CA (XT250XC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

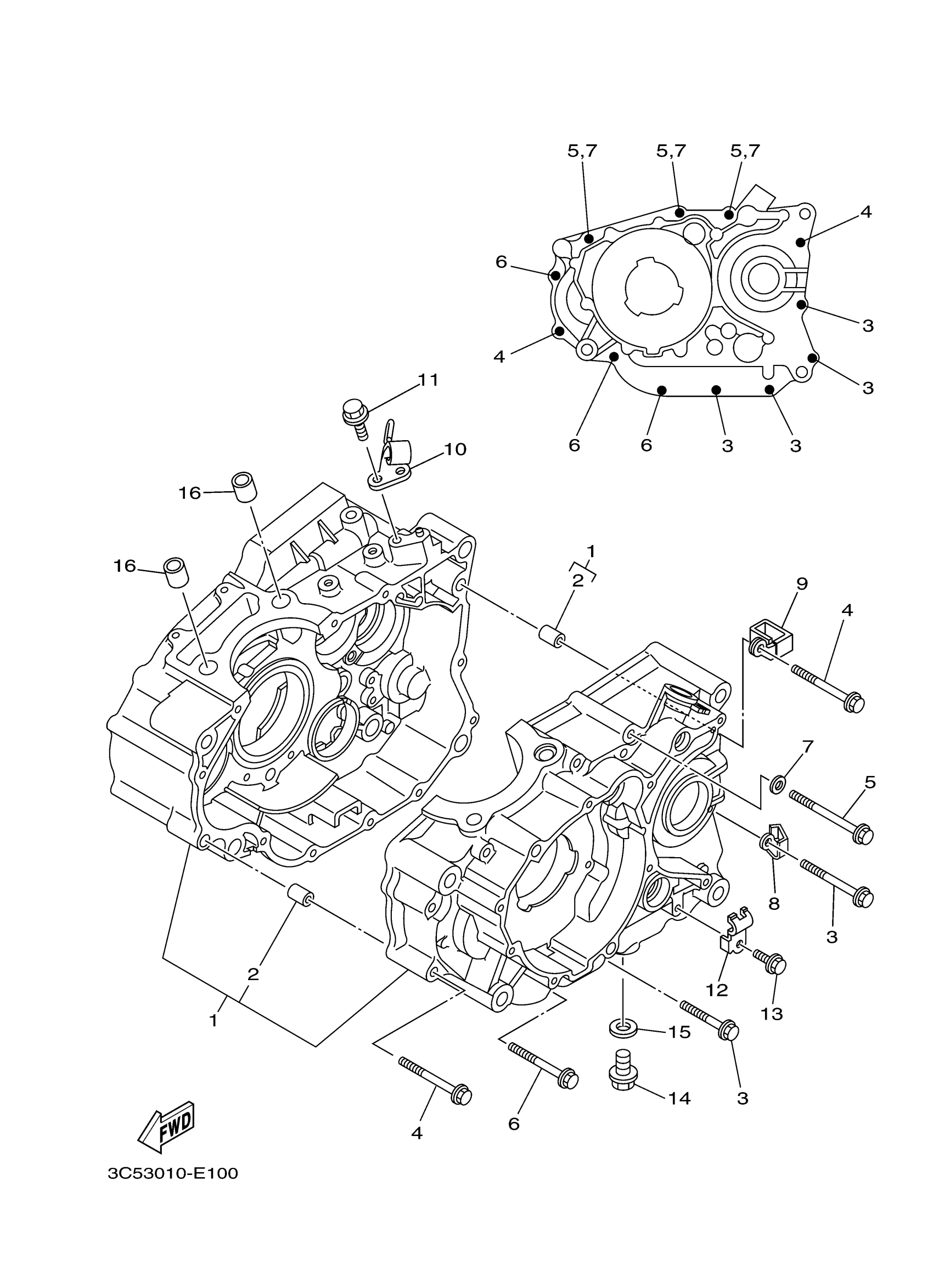

2008 Yamaha XT250 CA (XT250XC) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

3C5-15100-03-00

—

$601.94

In stock

2

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

3

BOLT, SMALL FLANGE

95024-06045-00

1

$6.89

In stock

4

BOLT, FLANGE(4UN)

95024-06060-00

—

$2.83

In stock

5

BOLT, FLANGE

95024-06070-00

—

$2.78

In stock

6

BOLT, FLANGE(4EB)

95024-06055-00

1

$5.31

In stock

7

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

8

CLAMP(4AJ)

90462-08225-00

1

$7.46

In stock

9

CLAMP

90461-08001-00

—

$4.57

In stock

10

HOLDER, CLUTCH CABLE

5XT-15441-02-00

1
Out of stock

11

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

12

CLAMP

90462-10043-00

—

$10.48

In stock

13

BOLT, FLANGE

95022-06010-00

1

$5.45

In stock

14

PLUG, STRAIGHT SCREW

90340-12006-00

1

$3.51

In stock

15

GASKET(3FD)

90430-12213-00

1

$5.09

In stock

16

PIN, DOWEL

99530-14016-00

—

$3.20

In stock
