2025 Yamaha XT250 CA (XT250SC) Frame Diagram

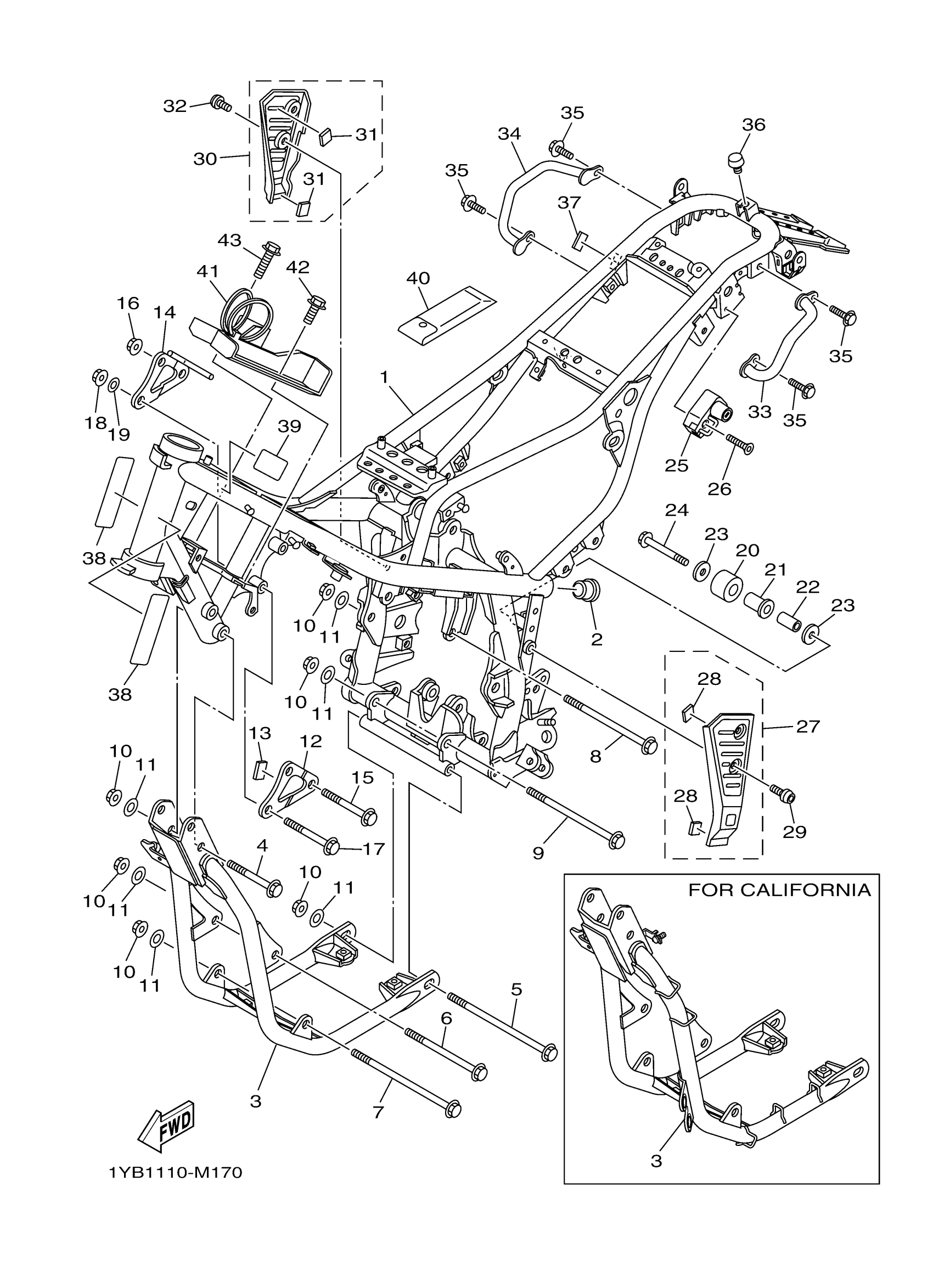

Find the part on the Frame diagram for your 2025 Yamaha XT250 CA (XT250SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
2
PLUG
90338-26004-00
1
Out of stock
4
BOLT, WASHER BASED(4EB)
90105-10788-00
1
Out of stock
15
BOLT, FLANGE
90105-10282-00
1
Out of stock
18
NUT(4KM)
90179-08674-00
—
Out of stock
23
WASHER, PLATE(8AT)
90201-081R9-00
—
Out of stock
29
SCREW(3XV)
90149-06298-00
—
Out of stock
32
SCREW(3XV)
90149-06298-00
—
Out of stock
33
HANDLE, STANDING
3C5-21165-00-00
—
Out of stock
36
STOPPER
5RU-24768-00-00
—
Out of stock
37
DAMPER
5G3-21747-00-00
1
Out of stock
