2024 Yamaha XT250 CA (XT250RC) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2024 Yamaha XT250 CA (XT250RC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

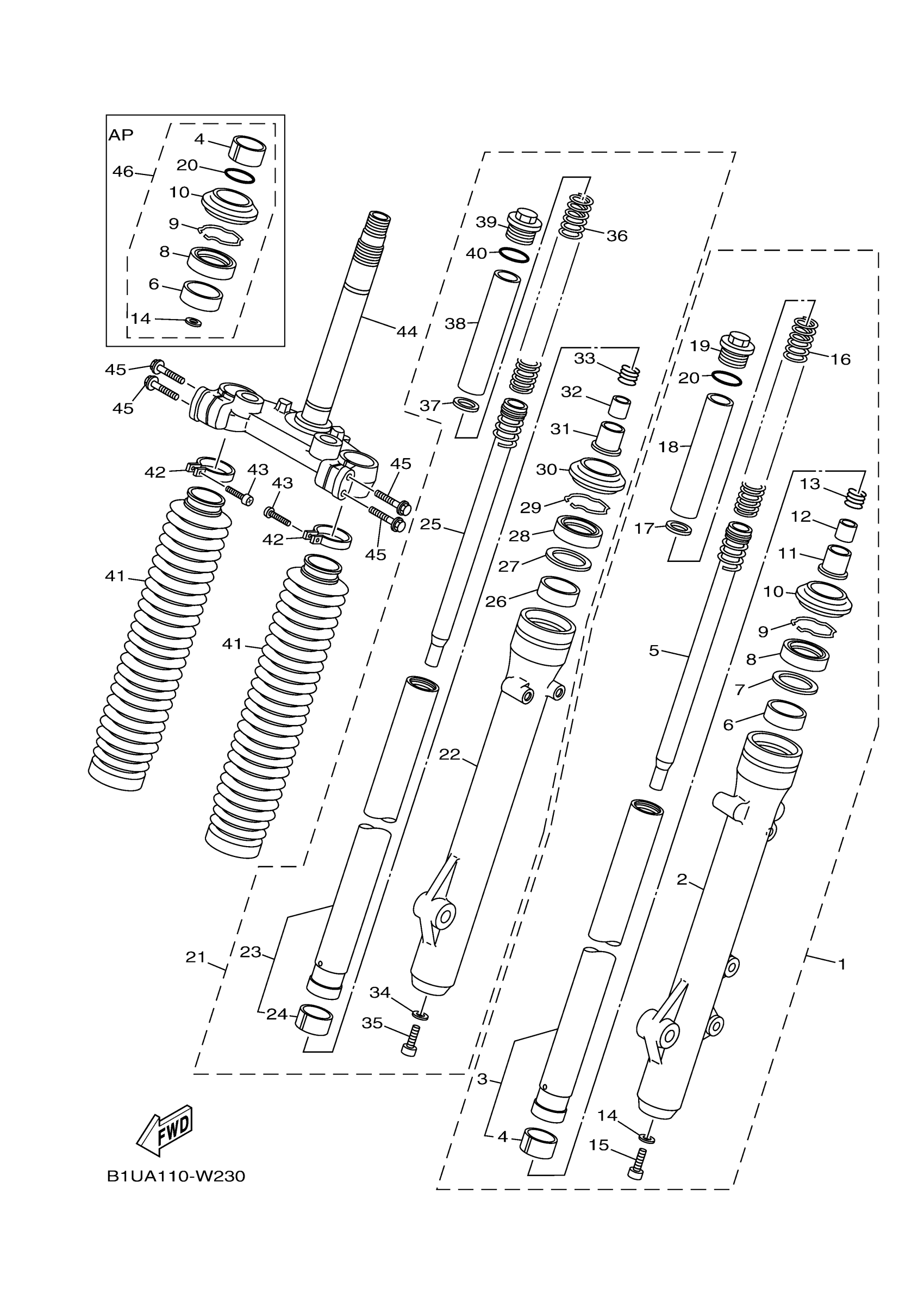

2024 Yamaha XT250 CA (XT250RC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY (L.H)

3C5-23102-20-00

—
Out of stock

2

TUBE, OUTER (LEFT)

3C5-23126-10-00

—
Out of stock

3

INNER TUBE COMP.1

3C5-23110-00-00

—
Out of stock

4

PISTON, FRONT FORK

5JX-23171-00-00

1
Out of stock

5

CYLINDER COMP., FRONT FORK

3C5-23170-00-00

—
Out of stock

6

METAL, SLIDE 1

5JX-23125-00-00

1
Out of stock

7

WASHER, SPRING UPPER

5K5-23149-00-00

1
Out of stock

8

OIL SEAL

5JX-23145-00-00

1
Out of stock

9

RING, SNAP

4A1-23156-00-00

1
Out of stock

10

SEAL, DUST

5JX-23144-00-00

1
Out of stock

11

SPINDLE, TAPER

5XT-23173-00-00

—
Out of stock

12

COLLAR 1

5XT-23363-00-00

—
Out of stock

13

SPRING, REBOUND

5XT-23151-00-00

1
Out of stock

14

GASKET

1N1-23158-00-00

1
Out of stock

15

BOLT,SOCKET

91314-08025-00

1
Out of stock

16

SPRING, FRONT FORK

3C5-23141-00-00

—
Out of stock

17

WASHER, SPRING UPPER

4FY-23149-00-00

—
Out of stock

18

SPACER

3C5-23118-00-00

—
Out of stock

19

BOLT, CAP

5JX-23111-00-00

—
Out of stock

20

GASKET

240-23114-00-00

—
Out of stock

21

FRONT FORK ASSY (R.H)

3C5-23103-20-00

—
Out of stock

22

TUBE, OUTER (RIGHT)

3C5-23136-10-00

—
Out of stock

23

INNER TUBE COMP.1

3C5-23110-00-00

—
Out of stock

24

PISTON, FRONT FORK

5JX-23171-00-00

1
Out of stock

25

CYLINDER COMP., FRONT FORK

3C5-23170-00-00

—
Out of stock

26

METAL, SLIDE 1

5JX-23125-00-00

1
Out of stock

27

WASHER, SPRING UPPER

5K5-23149-00-00

1
Out of stock

28

OIL SEAL

5JX-23145-00-00

1
Out of stock

29

RING, SNAP

4A1-23156-00-00

1
Out of stock

30

SEAL, DUST

5JX-23144-00-00

1
Out of stock

31

SPINDLE, TAPER

5XT-23173-00-00

—
Out of stock

32

COLLAR 1

5XT-23363-00-00

—
Out of stock

33

SPRING, REBOUND

5XT-23151-00-00

1
Out of stock

34

GASKET

1N1-23158-00-00

1
Out of stock

35

BOLT,SOCKET

91314-08025-00

1
Out of stock

36

SPRING, FRONT FORK

3C5-23141-00-00

—
Out of stock

37

WASHER, SPRING UPPER

4FY-23149-00-00

—
Out of stock

38

SPACER

3C5-23118-00-00

—
Out of stock

39

BOLT, CAP

5JX-23111-00-00

—
Out of stock

40

GASKET

240-23114-00-00

—
Out of stock

41

BOOT

3C5-23191-10-00

—
Out of stock

42

BAND

3C5-23192-00-00

—
Out of stock

43

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

44

UNDER BRACKET COMP.

3C5-23340-10-00

—
Out of stock

45

BOLT 1

5RS-23346-00-00

—
Out of stock

46

FORK SEAL KIT (ONE FORK)

B1U-W003B-00-00

—
Out of stock
