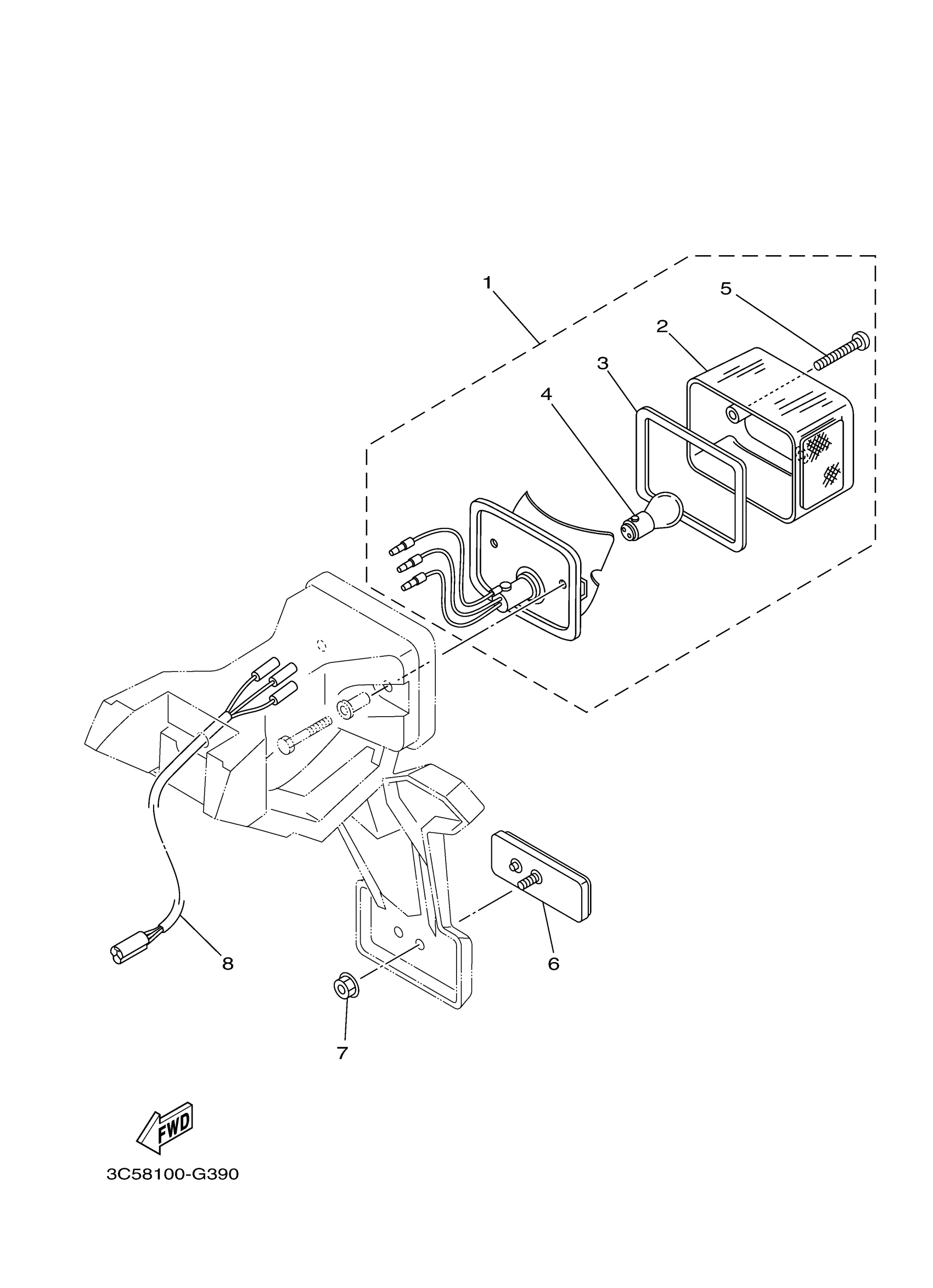

Yamaha XT250NC (XT250 CA) B1UF 2022 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT UNIT ASSY

1W9-84710-61-00

$91.19

2

LENS, TAIL LAMP

1M1-84521-60-00

$34.25

3

GASKET, TAIL LENS

1M1-84523-60-00

$10.29

4

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

5

SCREW, ADJUSTING

5BF-8433E-00-00

$5.70

6

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

7

NUT, FLANGE

95702-05500-00

$0.73

8

CORD, TAILLIGHT

3C5-84717-00-00

Unavailable
