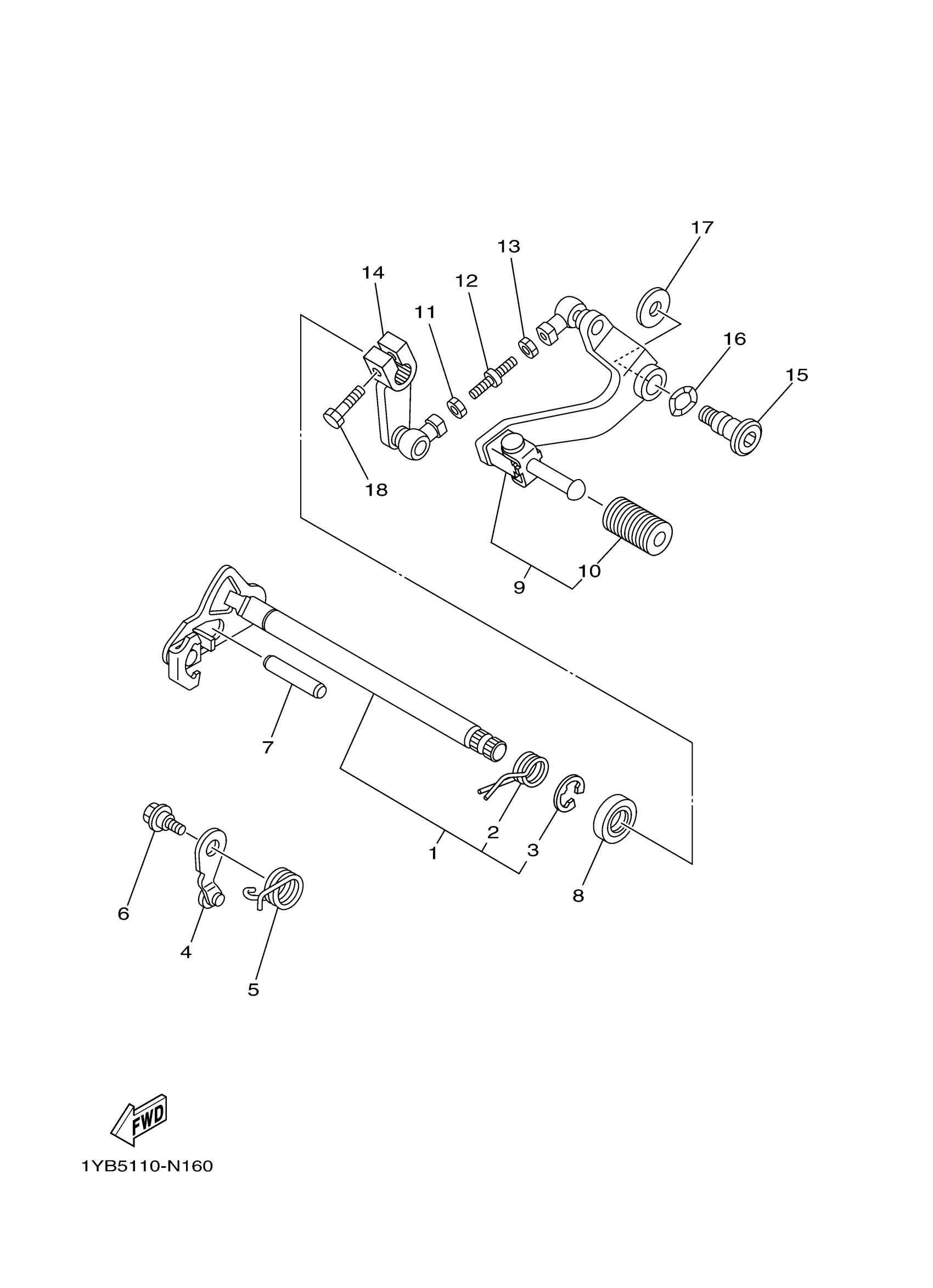

Yamaha XT250NC (XT250 CA) B1UF 2022 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

5XT-18101-03-00

$63.50

2

SPRING, TORSION

90508-32139-00

$3.89

3

. CIRCLIP

99001-12600-00

$5.30

4

STOPPER LEVER ASSY

4TP-18140-00-00

Unavailable

5

SPRING, TORSION

90508-26020-00

Unavailable

6

BOLT

90109-06190-00

$3.26

7

PIN, DOWEL(4GY)

93608-43228-00

$4.42

8

OIL SEAL (3Y1)

93102-14209-00

$9.11

9

SHIFT PEDAL ASSY

5XT-18110-20-00

Unavailable

10

COVER, CHANGE PEDAL

1W6-18113-00-00

$3.65

11

NUT(JN5)

95317-06700-00

$6.23

12

ROD, SHIFT

5XT-18115-10-00

Unavailable

13

NUT

90170-06022-00

$2.79

14

ARM, SHIFT

5XT-18112-10-00

$50.67

15

BOLT

5XT-27434-10-00

$10.70

16

WASHER, WAVE (17W)

90206-12074-00

Unavailable

17

WASHER, PLATE (3L7)

90201-08784-00

Unavailable

18

BOLT, HEXAGON

97017-06020-00

Unavailable
