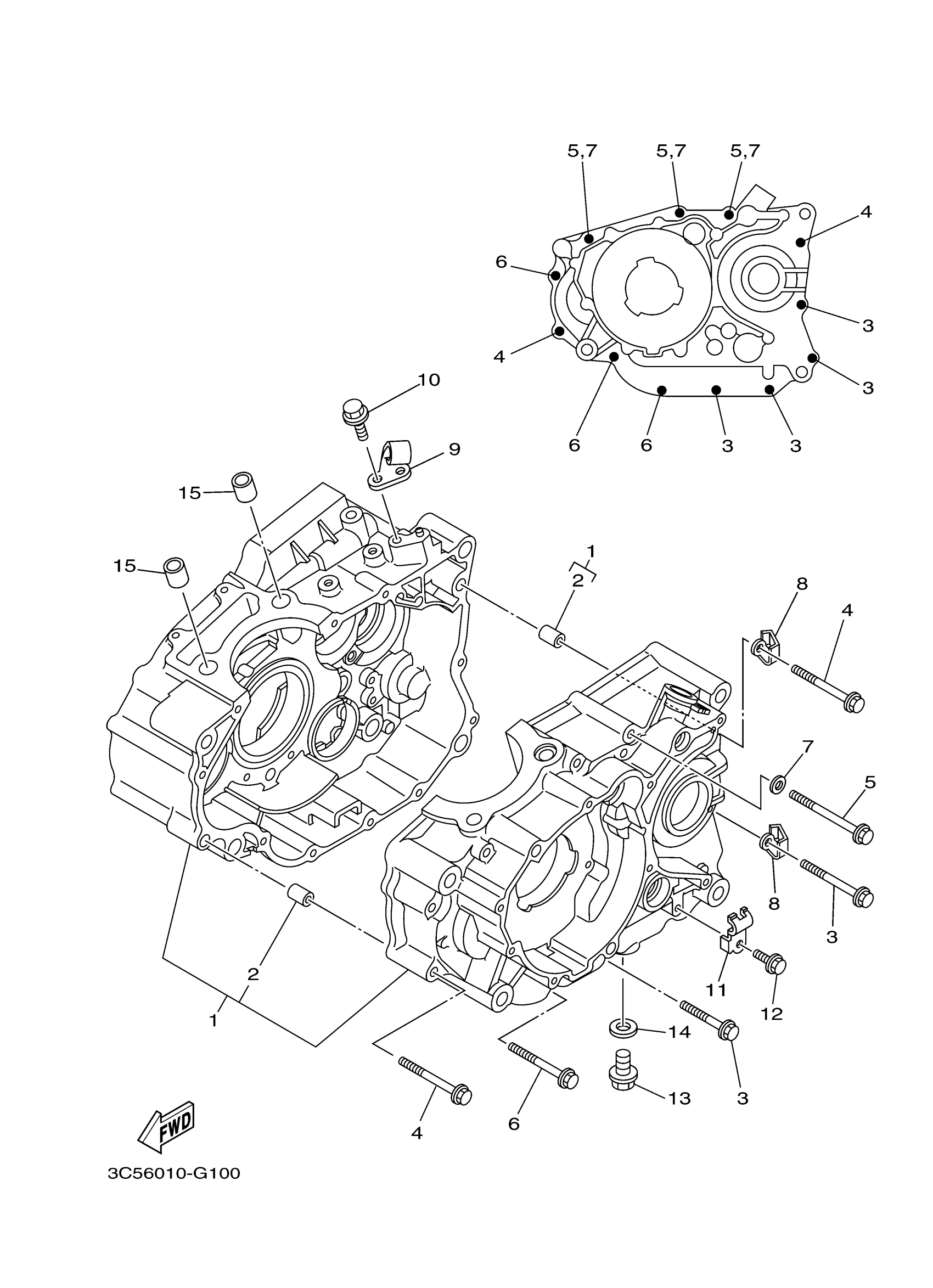

Yamaha XT250NC (XT250 CA) B1UF 2022 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

3C5-15100-03-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.13

3

BOLT, SMALL FLANGE

95024-06045-00

$6.43

4

BOLT, FLANGE(4UN)

95024-06060-00

Unavailable

5

BOLT, FLANGE

95024-06070-00

Unavailable

6

BOLT, FLANGE(4EB)

95024-06055-00

$4.96

7

GASKET 256113960000

90430-06014-00

Unavailable

8

CLAMP(4AJ)

90462-08225-00

$7.35

9

HOLDER, CLUTCH CABLE

5XT-15441-10-00

Unavailable

10

BOLT, FLANGE

95817-06016-00

$1.40

11

CLAMP

90462-10043-00

Unavailable

12

BOLT, FLANGE

95022-06010-00

$5.08

13

PLUG, STRAIGHT SCREW

90340-12006-00

$3.26

14

GASKET(3FD)

90430-12213-00

$4.75

15

PIN, DOWEL

99530-14016-00

$2.98
