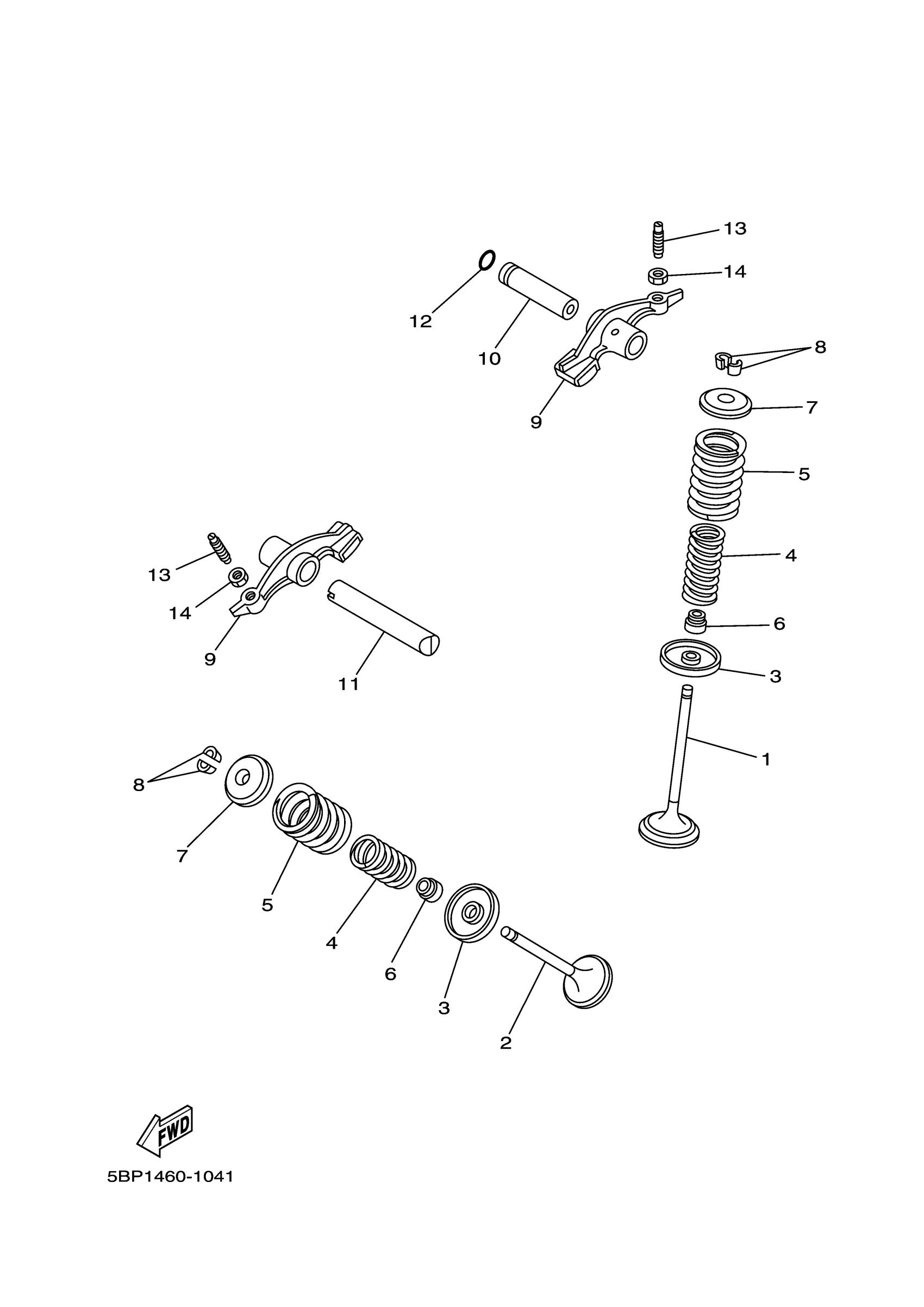

Yamaha XT250MC (XT250 CA) B1UB 2021 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

5H0-12111-02-00

$33.57

2

VALVE, EXHAUST

5XT-12121-00-00

$34.82

3

SEAT, VALVE SPRING

4G0-12116-01-00

$12.22

4

SPRING, VALVE INNER

11H-12113-00-00

$19.26

5

SPRING, VALVE OUTER

11H-12114-00-00

$20.29

6

SEAL, VALVE STEM

5H0-12119-00-00

$13.75

7

RETAINER, VALVE SPRING

4G0-12117-00-00

$19.08

8

COTTER, VALVE

4G0-12118-00-00

$6.29

9

ARM, VALVE ROCKER

36X-12151-00-00

$38.39

10

SHAFT, ROCKER

5H0-12156-00-00

$32.73

11

SHAFT, ROCKER

5H0-12146-00-00

$23.54

12

O-RING (1J7)

93210-09350-00

$5.42

13

SCREW, VALVE ADJUSTING

5XT-12159-00-00

$8.06

14

NUT HEXAGON 371121580000

90170-06128-00

$5.75
