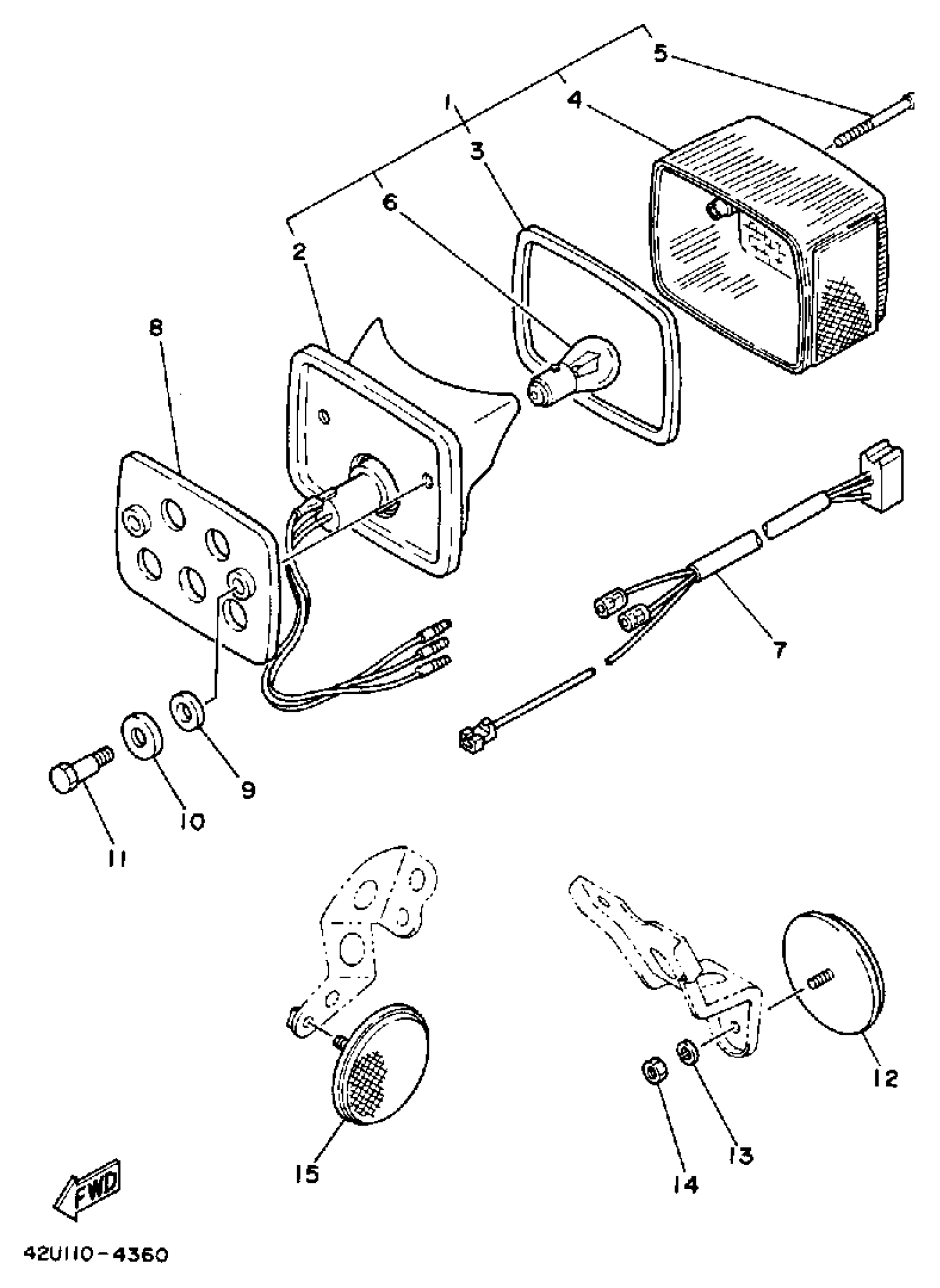

Find the part on the Taillight diagram for your 1984 Yamaha XT250 CA (XT250LC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha XT250 CA (XT250LC) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSY

1W9-84710-61-00

1
Out of stock

2

. BASE, TAILLIGHT

1M1-84511-60-00

1
Out of stock

3

GASKET, TAIL LENS

1M1-84523-60-00

1
Out of stock

4

LENS, TAIL LAMP

1M1-84521-60-00

1
Out of stock

5

SCREW, ADJUSTING

5BF-8433E-00-00

1
Out of stock

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

1
Out of stock

7

CORD, TAILLIGHT

42U-84517-00-00

1
Out of stock

8

DAMPER

4L0-84753-00-00

—
Out of stock

9

WASHER, PLATE (4L0)

90201-083A0-00

1
Out of stock

10

WASHER, SPECIAL (498)

90209-08125-00

1
Out of stock

11

BOLT 337847520000

90109-06005-00

1
Out of stock

12

REFLECTOR, REAR 1

449-85131-02-00

1
Out of stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

NUT, HEXAGON (663)

95380-05600-00

1
Out of stock

15

REFLECTOR, FRONT 1

355-85111-01-00

1
Out of stock
