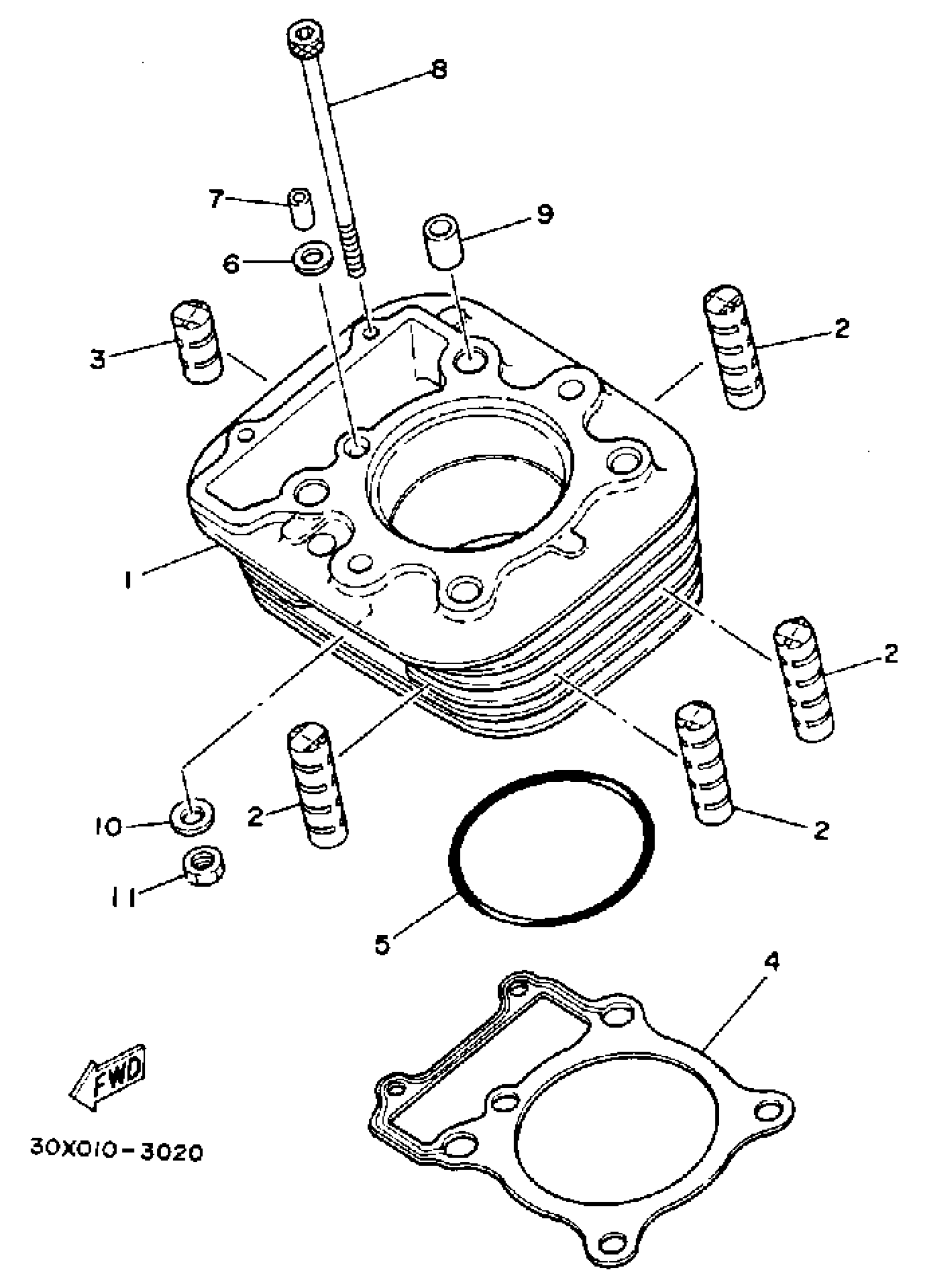

Yamaha XT250LC (XT250 CA) 1984 CYLINER Diagram

#

Description
Price

1

CYLINDER

30X-11310-01-00

Unavailable

2

ABSORBER

583-11127-00-00

$6.28

3

ABSORBER

583-11127-00-00

$6.28

4

GASKET, CYLINDER

4EL-11351-00-00

$24.42

5

O-RING (14X)

93210-78544-00

$9.93

6

GASKET (5Y1)

90430-08178-00

$4.51

7

PIN, DOWEL(3XW)

91808-16023-00

$5.26

8

BOLT, WASHER BASED

90105-06355-00

Unavailable

9

PIN, DOWEL

99530-14016-00

$2.98

10

WASHER, PLATE (33N)

90201-094G1-00

$6.52

11

NUT(6TA)

95337-08600-00

$5.75
