Partiron

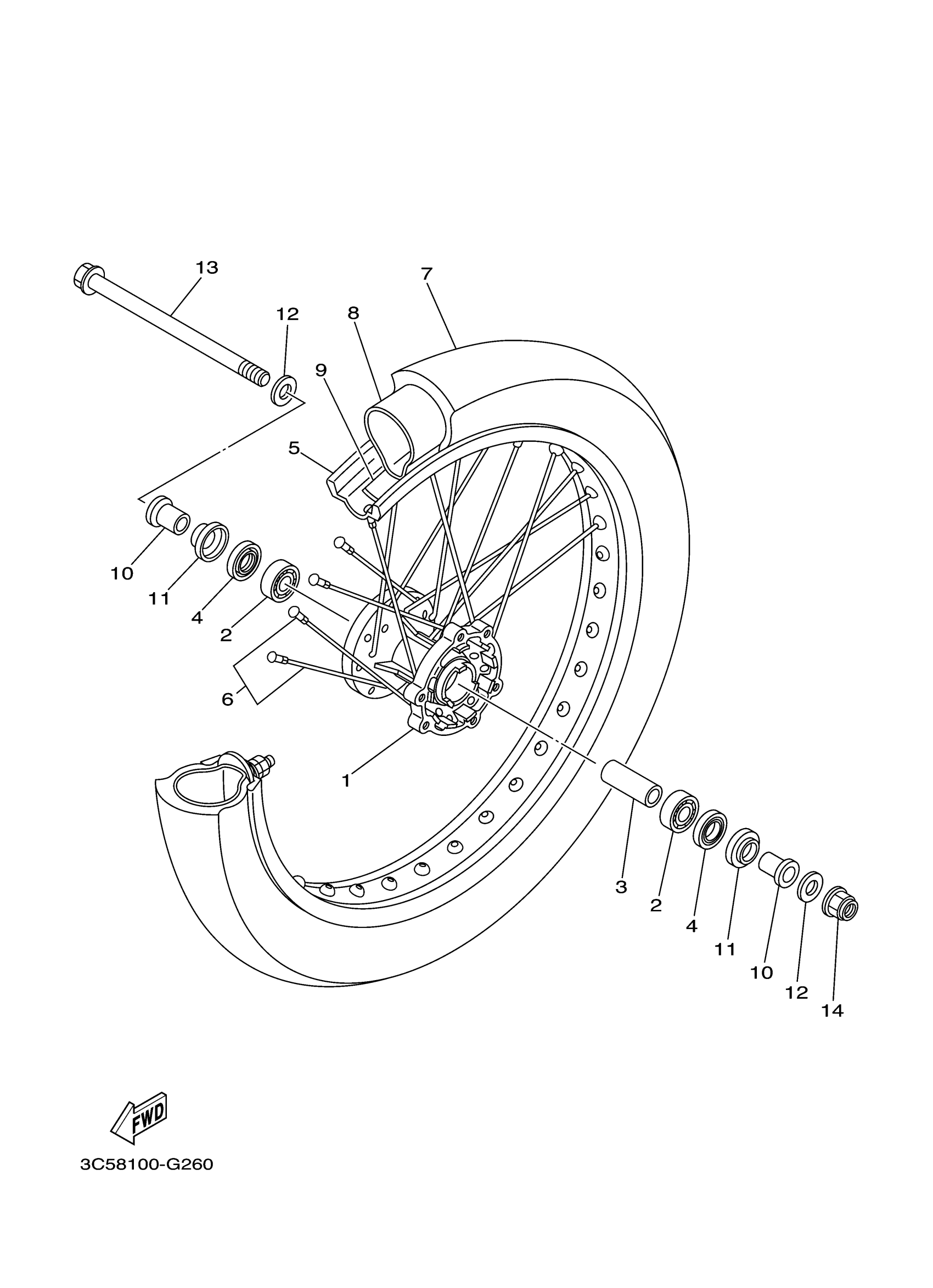

Yamaha XT250L1C (XT250 CA) B1U7 2020 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

34X-25111-02-35

Unavailable

2

BEARING

93306-20205-00

$31.31

3

SPACER(1ET)

90560-15290-00

$17.06

4

OIL SEAL(38V)

93106-20021-00

$10.70

5

RIM (1.60-21)(2YY)

94416-21536-00

$445.67

6

SPOKE SET, FRONT

1KH-25104-00-00

$79.28

7

TIRE(2.75-21 45P TW-301 G)

94127-21008-00

$91.99

8

TUBE, FRONT (2A6)

94227-21123-00

$40.00

9

BAND, RIM (2A6)

94330-21084-00

$12.96

10

COLLAR (1W1)

90387-15600-00

$14.32

11

COVER, HUB DUST

322-25118-00-00

$15.12

12

WASHER, PLATE (3X3)

90201-15797-00

$5.86

13

AXLE, WHEEL

5HH-25381-01-00

Unavailable

14

NUT, U(4JT)

95617-14100-00

Unavailable
